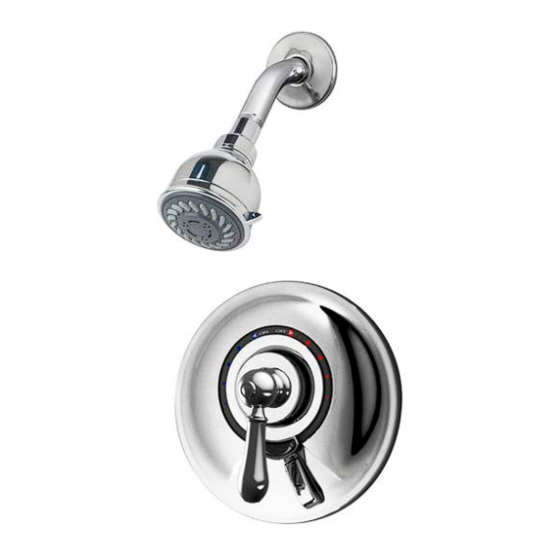

Shower System
Installation and Service Instructions
Model number
S-7601RP ....... Shower System with
standard chrome finish
S-7601-STNRP.... Shower System
with satin nickel finish
Ordering Replacement Parts
Systems with optional satin finish,
append -STN (3 letter finish code) to
part numbers with an asterisk(

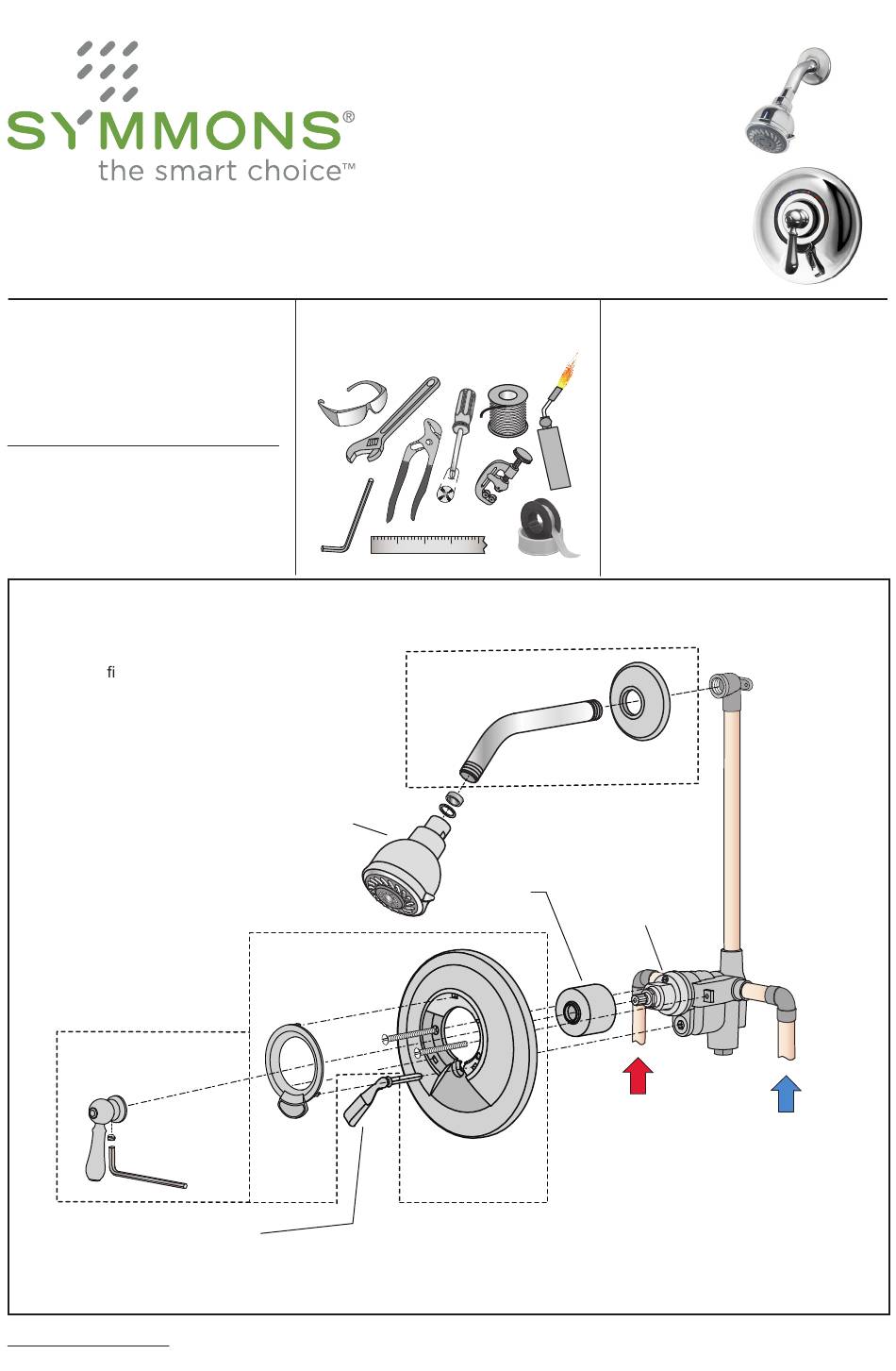

Visual Guide
Piping, ttings and tools are not
included. Actual plumbing should
be determined and installed by a
licensed plumber.
*
RTS-032
1/8 "
(not included)
Protective control valve shield
(not shown) T-176
For California Residents
WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Allura
S-7601RP , S-7601-STNRP
Tools & Materials
1/8"
*
).
Allura Shower System S-7601RP, S-7601-STNRP
*
EF-02322-1.75
*
T-131A
*
T-139
®
1
2
3
4
*
300S
*
T-19
Need Help?
Contact Symmons customer service
at (800) 796-6667, (781) 848-2250,
customerservice@symmons.com
Mon - Fri 7:30 am - 7:00 pm EST
Please check Symmons
website for technical help, the
latest product information and
warranty policy.
www.symmons.com/service
Temp limit
Temptrol
screw adjust
control valve
S-4002-BODY
HOT
supply
COLD
inlet
supply
inlet
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Symmons Allura S-7601RP
Summary of Contents for Symmons Allura S-7601RP
- Page 1 Installation and Service Instructions Model number Need Help? Tools & Materials S-7601RP ..Shower System with Contact Symmons customer service standard chrome finish at (800) 796-6667, (781) 848-2250, S-7601-STNRP..Shower System with satin nickel finish customerservice@symmons.com Mon - Fri 7:30 am - 7:00 pm EST Ordering Replacement Parts ...
-
Page 2: Installation Instructions
Installation Instructions 3) Attach protective shield ■ Place handle over end of control Rough-in Installation Attach plastic protective shield spindle stem. Tighten packing by snap fitting over end of valve nut for positive frictional Control valve assembly, piping spindle as shown in Figure 2. resistance as handle is rotated and fittings from shutoff position across... - Page 3 Tub & Shower Operation Attach escutcheon ■ Check for leaks around valve Volume control handle assembly and all pipe fittings. Set temperature limit stop screw The temperature limit stop screw limits valve handle from being turned to maximum position resulting in excessive hot water discharge temperatures.
- Page 4 Dimensions Allura Shower System, S-7601RP, S-7601-STNRP nished wall 6-1/2" 1/2"-14 NPT 2-1/2" dia (165 mm) (64 mm) 5" (127 mm) approx 77" (1956 mm) Finished wall to pipe centerline 2-3/8" ± 1/2" (60 mm ± 13 mm) *see note (2) 5/8"...
-
Page 5: Parts & Assembly
Cap washer (T-12A) washer repair kit packing (T-16) packing nut Valve Replacement Parts and Special Tools Symmons Description Part Number TA-4 Hot and cold seat repair kit (optional tools p/n T-35A & T-35B) TA-9 Control spindle washer repair kit TA-10 (includes p/n TA-9 &... -
Page 6: Troubleshooting Chart
■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800 )796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2017 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-1092R REV A 110917... - Page 7 Números de modelos Herramientas y materiales S-7601RP ..sistema de ducha con Servicio de atención al cliente acabado estándar de cromo Symmons: S-7601-STNRP..sistema de ducha (800) 796-6667, (781) 848-2250 con acabado de satin nickel customerservice@symmons.com De lunes a viernes de 7:30 a.m. - Código acabado decorativo...
-
Page 8: Instrucciones De Instalación
Instrucciones de instalación Retire la capa protectora Adhiera capa protectora Instalación eléctrica ■ Si la capa protectora ha sido Refiérase a la figura 2 para determinar si se requiere la capa. adherida en el Paso 3 entonces Ensamblaje de la válvula de retire el ajuste de la capa colocado ■... - Page 9 Operación de la manija de Coloque el escudete Descargue el sistema, busque control de desviador fugas ■ Coloque la válvula en la posición de entibiamiento y espere unos cuantos minutos. ■ Si el sistema está sucio, retire el eje de la válvula en el centro de la válvula para asegurar una descarga apropiada.
- Page 10 Dimensiones Sistema de ducha Allura, S-7601RP, S-7601-STNRP pared terminada 6-1/2" 1/2"-14 NPT 2-1/2" diámetro (165 mm) (64 mm) 5" (127 mm) aproximadamente 77" (1956 mm) Pared terminada a línea central de la tubería 2-3/8" ± 1/2" (60 mm ± 13 mm) *ver nota (2) 5/8"...
- Page 11 (T-16) tuerca de embalaje Piezas de repuesto para la válvula y herramientas especiales Número de pieza Descripción Symmons TA-4 Kit de reparación del asiento para agua caliente y fría (herramientas opcionales p/n T-35A & T-35B) TA-9 Kit de reparación de arandela de boquilla de control TA-10 (incluye los componentes p/n TA-9 &...
-
Page 12: Cuadro De Resolución De Problemas
■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800 )796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2017 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-1092R REV A 110917...
