442HS, 442SH, 442W

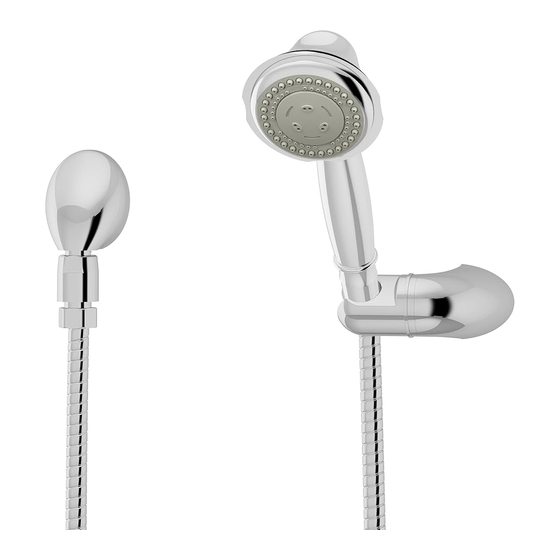

Hand Shower / Showerhead / Hand Shower Wand
Operation & Maintenance Manual
Model Numbers
442HS
Hand Shower Assembly
442SH
Showerhead
442W
Hand Shower Wand
Modifications
CG
-1.5
1.5 gpm (5.7 L/min) flow restrictor
-2.0
2.0 gpm (7.6 L/min) flow restrictor
-STN
Satin nickel finish
Note: Append appropriate -suffix to model number.
Canterbury
Specifications
Hand shower assembly, showerhead and hand shower
wand include standard 2.5 gpm (9.5 L/min) flow restrictor.
Components are made from metal and nonmetallic
materials plated in standard polished chrome finish.
Compliance
-ASME A112.18.1/CSA B125.1
-WaterSense 1.5, 2.0 gpm (442SH only)
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
®
Certi ed by
CSA Group
Advertisement
Table of Contents
Related Manuals for Symmons Canterbury 442HS
Summary of Contents for Symmons Canterbury 442HS

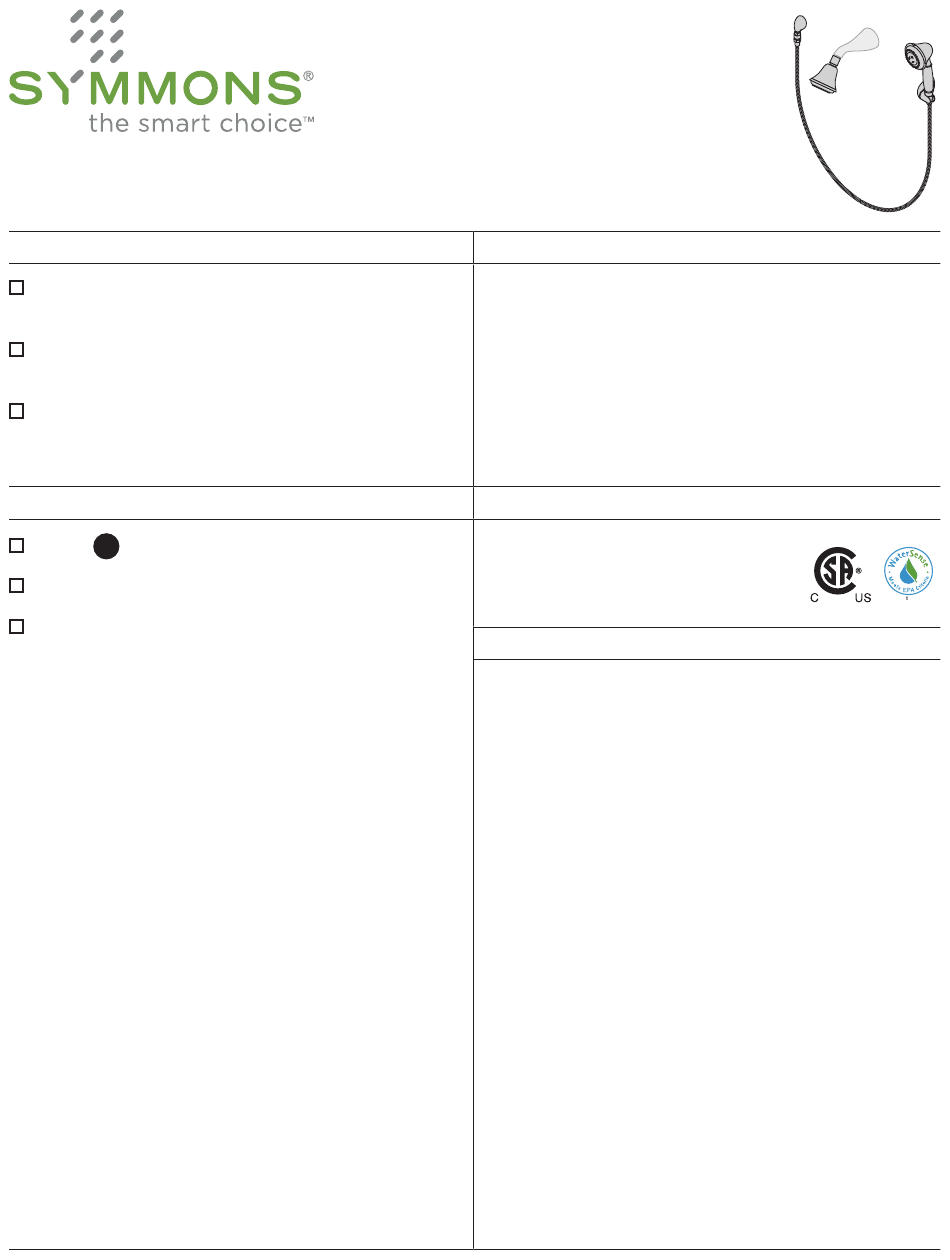

- Page 1 Certi ed by CSA Group -STN Satin nickel finish Warranty Limited Lifetime - to the original end purchaser in consumer installations. 5 Years - for commercial installations. Refer to www.symmons.com/warranty for complete warranty information. Note: Append appropriate -suffix to model number.
- Page 2 Dimensions 442HS Measurements 2 1/8", 54 mm Male 1/2" IPS thread must be recessed 1/4" from finished wall 1 7/8", 48 mm 3 1/4", 83 mm 3 1/4", 83 mm 4 1/4", 108 mm 8 5/8", 219 mm 3 1/4", 83 mm 442SH 442W Note: Dimensions are subject to change without notice.
-
Page 3: Parts Breakdown
Parts Breakdown Replacement Parts 442HS Item Description Part Number Vacuum Breaker EF-104 60" Hose Wall Elbow EF-105 Showerhead 442SH Cradle Cradle Mounting Screws EF-106 Cradle Mounting Plate Hand Shower 442W Notes: 1) Append -STN to part number for satin nickel finish. 2) Append -1.5 or -2.0 to showerhead or hand shower for low flow. -
Page 4: Installation
Installation 1) Install wall elbow (B) to stub out Option: Place mounting plate (F) in 4) Install showerhead (C) to shower pipe. Tighten set screw to secure. position, mark and drill 3/16" holes arm turning clockwise to tighten. into wall. Install anchors. 2) Place mounting plate (F) in position, mark and drill 1/8"... -
Page 5: Care And Cleaning
■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2018 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3087 REV A 032018...
