Single or Dual Mixer Operation

The mixer can be set to perform one or two automixes:
• Single Mixer (default): Channels are routed to a single mix bus that sends the same audio to both Mix A and B outputs.
Limiter and master gain can still be set independently for both outputs.
• Dual Mixer: Two separate buses provide independent automixes for each mix output. In this setting, two entirely different
mixes can result from the same set of inputs.

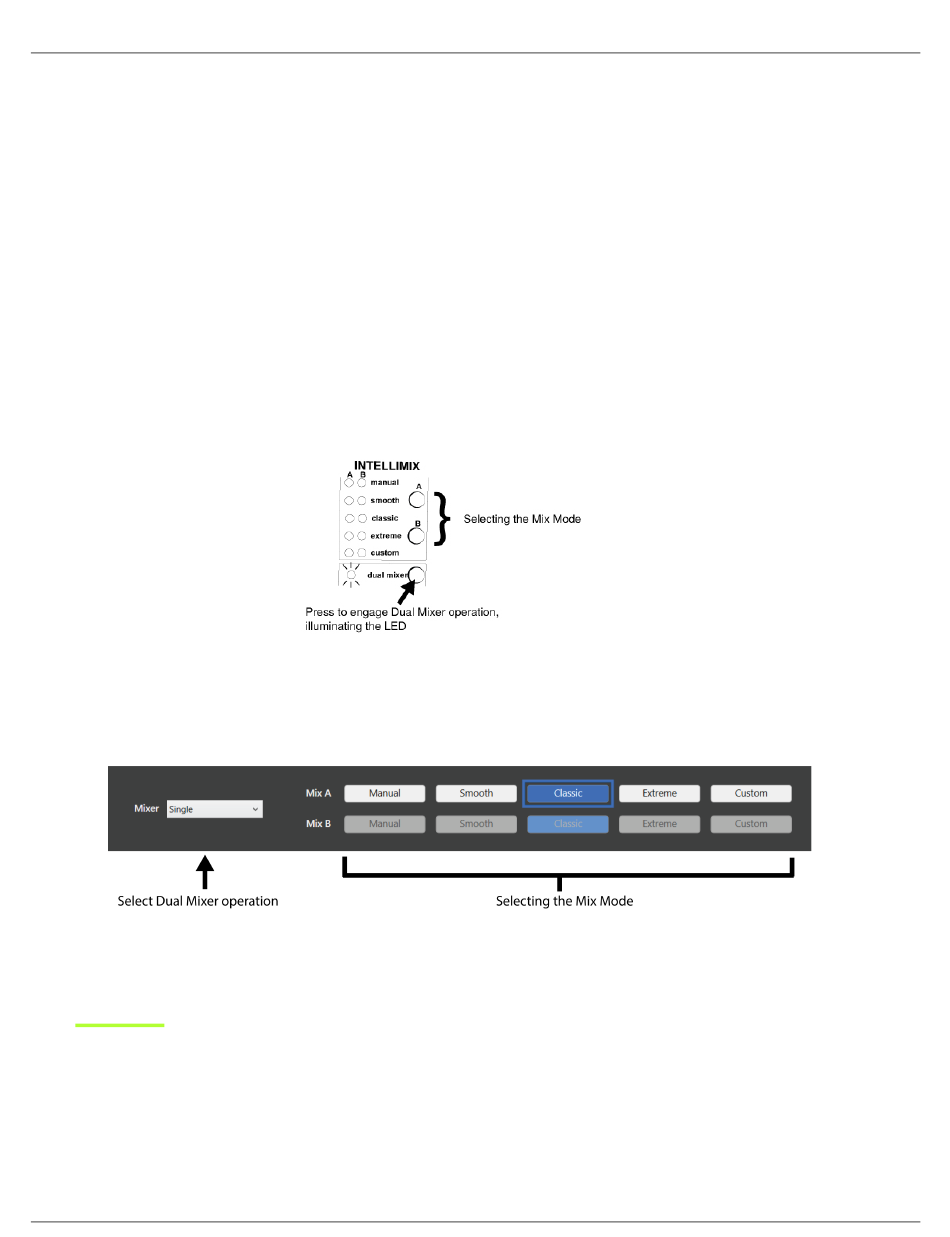

Enable dual mixer operation by pressing the Dual Mixer button on the back panel or from the IntelliMix tab in the SCM820 ap-
plication.
Example Dual Mixer Applications:
• Set Mix A to Classic mode for sound reinforcement, and set Mix B to Smooth for a broadcast feed.
• Mix A to Classic mode for sound reinforcement, and Mix B for Manual for recording.
• Route channels 1-4 to Mix A and 5-8 to Mix B to run independent automixes for two different locations from one device.

Networking

Connect the mixer to a network for hardware control from a Windows computer, transporting digital audio, or using multiple
mixers.
Back Panel
SCM820 application
