Wi-Fi VoIP Gateway
(WellGate 3512)
Technical Manual
Revision information
Version
Date
EN-V1.00
Jul-19-2007
Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
WellGate 3512 Technical Manual EN-V1.00
Welltech
Description
st
1
English version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WellGate 3512 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WELLTECH WellGate 3512

Summary of Contents for WELLTECH WellGate 3512

  • Page 1 WellGate 3512 Technical Manual EN-V1.00 Welltech Wi-Fi VoIP Gateway (WellGate 3512) Technical Manual Revision information Version Date Description EN-V1.00 Jul-19-2007 English version Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 2: Table Of Contents

    Operation Mode: _________________________________________________ 16 　 Time Zone Setting ________________________________________________ 17 　 LAN Interface Setup_______________________________________________ 18 　 WAN Interface Setup ______________________________________________ 18 　 Wireless Basic Settings ____________________________________________ 20 　 Wireless Security Setup ____________________________________________ 21 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 3 Statistics ________________________________________________________ 50 　 DDNS __________________________________________________________ 50 　 Time Zone Setting ________________________________________________ 51 　 Denial-of-Service _________________________________________________ 52 　 Log ____________________________________________________________ 52 　 Upgrade Firmware ________________________________________________ 53 　 Save/Reload Settings______________________________________________ 54 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 4 Access point With Bridge mode (Without NAT) __________________________ 57 Client (Infrastructure) _____________________________________________________ 58 Client (Ad-hoc)___________________________________________________________ 59 P2P Bridge ______________________________________________________________ 60 WDS Repeater ___________________________________________________________ 61 Universal Repeater _______________________________________________________ 63 WISP ___________________________________________________________________ 64 WISP + Universal Repeater_________________________________________________ 65 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 5: Chapter 1 Overview Of The Wg3512

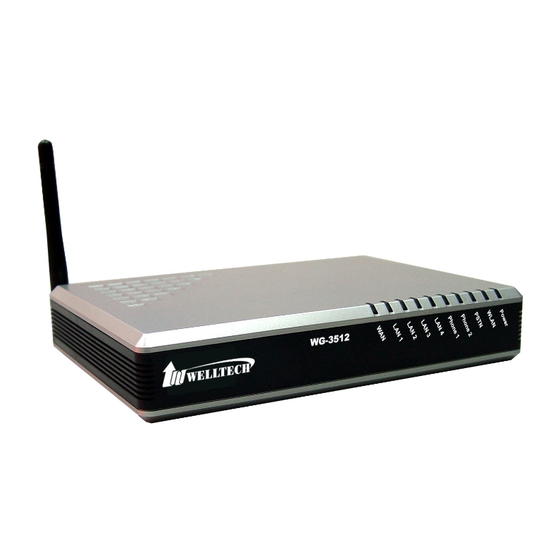

    Chapter 1 Overview of the WG3512 WellGate 3512 is a two-port FXS + one PSTN wireless gateway, which supports RFC3261 SIP protocol. Telephone will switch to PSTN port automatically under power failure. User can also select to dial out through PSTN line manually.
  • Page 6 PSTN Bypass: Power Failure, Manually Call Waiting Call Hold Blind Transfer Call Forward 3-way Conference 10 Speed Dials T.38 FAX Dimension 17.5 x 12.5 x 3.2 cm Protocol SIP RFC3261 TCP/UDP/IP/ICMP/ARP Management Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 7 Web-based configuration and management interface Firmware update through web Configuration backup/restore to/from a file. Reset configuration to factory default IVR-Configuration by phone keys with Interactive Voice Prompts Certification CE, FCC Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 8: Front View

    LAN 1 Network is connected Network is not Network is transmitting or connected receiving data. Network is connected Network is not Network is transmitting or connected receiving data. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 9: Back View

    10/100 Base-T; RJ-45 socket, complied with ETHERNET 10/100base-T. 10/100 Base-T; RJ-45 socket, complied with ETHERNET 10/100base-T. Specification of connector Ethernet Port Ethernet port is for connecting WG3512 to network, transmit rate supports 10/100 Base-T. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 10: Call Features

    WG3512 supports Blind Transfer only. Call Scenario: 1) Phone 1 is in communication with A. 2) Phone 1 press “*1” 3) B will be put on hold, and Phone 1 will hear Dial tone. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 11 4) Phone 1 dial to B, both Phone 1 and A will hear ring back tone. 5) B picks up, B and C in communication, A hear busy tone and disconnect. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 12: Chapter 2 Configuring The Wg3512 Through Voice Prompt And Phone Set

    Voice SIP register ID #122 #122# #123 #123# Voice netmask Voice Network Voice gateway #124 #124# Settings Voice DNS #125 #125# Voice WAN IP address #126 #126# Voice firmware version #128 #128# Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 13 101Forward Type:1: Forward setting +Forwarded Phone Number Immediate forward2. Busy forward3. No answer forward #141 #141# Disable forward setting #195 #195# Apply Setting Others #198 #198# Reset to default Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 14: Chapter 3 Configuring The Wg3512 Through Web Pages

    Please enter IP address of WG3512 in web browser. The default IP address of WG3512 is 192.168.123.123. There is no user name and password of default values, and the user can see web interface main screen as below. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 15: Step 5. Start To Configure

    1. Apply Changes: After change or input any parameter, press this button will save data into WG3512. 2. Reset: Press this button will clean data input by user and restore to original data. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 16: Setup Wizard

    ISP through wireless LAN. You must set the wireless to client mode first and connect to the ISP AP in Site-Survey page. The connection type can be setup in WAN page by using PPPOE, Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 17: Time Zone Setting

    Enable NTP client update: User can update time of WG3512 from NTP server if this function is enabled. Time Zone Select: Select the time zone according to location. NTP server: User may select one NTP server for WG3512 to update current time. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 18: Lan Interface Setup

    1) IP Address: set IP address of WAN interface. 2) Subnet Mask: set subnet mask of WAN interface. 3) Default Gateway: set default gateway of WAN interface. 4) DNS: set Domain Name Server for WAN interface. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 19 DHCP Client: Set WAN interface as DHCP mode. PPPoE: Set WAN interface as PPPoE mode. 1) User Name: Set user name of PPPoE connection. 2) Password: Set password of PPPoE connection. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 20: Wireless Basic Settings

    Identifier). You may use the default SSID unless there more than one WG3512 in the same area. In this case, you should specify different SSID for each WG3512. Channel Number: Set channel for wireless connection. You can set channel for radio Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 21: Wireless Security Setup

    This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Encryption: Set encryption as none, WEP, WPA, WPA2 or WPA2 Mixed. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 22 2) WPA(TKIP): only user with the same WPA pre-shared key can connect to WG3512 and transmit data using TKIP encryption. • Pre-Shared Key Format: Select Pre-Shared Key Format as Passphrase or Hex (64 characters). Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 23 3) WPA2(AES): AES ( Advance Encryption Standard) is the U.S. government’s next generation cryptography algorithm. • Pre-Shared Key Format: Select Pre-Shared Key Format as Passphrase or Hex (64 characters). • Pre-Shared Key: set pre-shared key manually. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 24: Operation Mode

    ISP through wireless LAN. You must set the wireless to client mode first and connect to the ISP AP in Site-Survey page. The connection type can be setup in WAN page by using PPPOE, DHCP client or static IP. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 25: Wireless

    WLAN. The SSID is up to 32 ASCII characters that differentiate the WG3512 from other WiFi AP, and it is also referred to as the ESSID (Extended Service Set Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 26: Advanced Setting

    With Shared Key authentication, only those PCs that possess the correct authentication key can join the network. Fragment Threshold (256-2346): set fragment threshold size. Fragments are small pieces Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 27 IAPP: IAPP is a portable implementation of the 802.11F specification for Inter Access Point Protocol (IAPP) to enable end-station mobility across Access Points. RF Output Power: set radio output power level as 100%, 50%, 25%, 10% or 5%. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 28: Security

    WPA Authentication Mode: Select WPA authentication mode as Enterprise (RADIUS) or Personal (Pre-Shared Key). If user select Enterprise mode, please fill in Authentication RADIUS Server information. If user select Personal mode, please select Pre-Shared key Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 29 The advantage is that the client reduces the time that it’s disconnected to the network. Authentication RADIUS Server: set port, IP address, and password of Radius Server for WG3512 to initial a Radius connection and get dynamic WEP key. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 30: Access Control

    Wireless access point. Before you want to use WDS Repeater mode, you have to enter the other’s AP/Router MAC address that the device want to connect. Reset: Reset the settings of WDS. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 31: Site Survey

    TCP/IP Settings LAN Interface IP Address: Set IP address of LAN interface. Subnet Mask: Set subnet mask of LAN interface. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 32: Wan Interface

    7) Enable UPnP: check to enable UPnP function. 8) Enable Ping Access on WAN: If this function is checked to enable, user can reach WG3512 via Ping WAN IP address. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 33 After setting to DHCP, the IP information will be displayed in the page of Management Status. 3) DNS 1/DNS 2/ DNS 3: Set three alternative Domain Name Server manually for WAN interface. 4) Enable UPnP: check to enable UPnP function. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 34 3) Service Name: Set Service Name of PPPoE for description. 4) Connection Type: Set PPPoE connection type to be Continuous/ Connect on Demand/ Manual. If user set type as Continuous, WG3512 will keep trying to connect to server Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 35 13) Enable PPTP pass through on VPN connection: check to enable PPTP pass through function. 14) Enable L2TP pass through on VPN connection: check to enable L2TP pass through function. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 36: Firewall

    Internet through the Gateway. Use of such filters can be helpful in securing or restricting your local network. Enable IP Filtering: check to enable IP Filtering function. Local IP Address: set IP Address for IP filtering. Protocol: set protocol as TCP or UDP or both protocol. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 37: Mac Filtering

    Internet through the Gateway. Use of such filters can be helpful in securing or restricting your local network. Enable MAC Filtering: check to enable MAC Filtering function. MAC Address: set MAC Address for MAC filtering. Comment: Make description for this MAC filtering rule. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 38: Url Filtering

    IP Address: set IP address for port forwarding. Protocol: Set Protocol type for port forwarding. Port Range: set start port and end port for port forwarding range. Comment: Make description for this port forwarding rule. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 39: Dmz

    Enable DMZ: check to enable DMZ function. DMZ Host Address: set IP address for DMZ function. VoIP Settings Port1 Port 2 Here is to set VoIP Phone 1 and Phone 2 related configurations. SIP Account Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 40 2) Immediate Number: Enter the assigned number for Immediate forward. 3) Busy Forward to: Check to enable Busy Forward function. When phone is busy, incoming call will be forwarded to assigned number. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 41 When dialed number as *1 87654321 or 10 digits of number, for this call will not be added with Auto Prefix number. Codec 1) Precedence: Set codec priority sequence. 2) Rate: Set G.723.1 codec with 5.3 or 6.3k mode. T.38(FAX) 1) T.38: Check to enable T.38 function. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 42 11) Flash Time Setting (ms) [ Space:10 , Max:2000 ]: Set Minimum and Maximum Flash time. 12) Speaker Voice Gain (dB) [ -32~31 ],Mute:-32: Set Speaker voice volume. 13) Mic Voice Gain (dB) [ -32~31 ],Mute:-32: Set microphone voice gain volume. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 43 WellGate 3512 Technical Manual EN-V1.00 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 44 WellGate 3512 Technical Manual EN-V1.00 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 45: Tone

    Select Custom Tone: Select Custom tone number to set Tone Parameters. Tone Parameters: 1) CanOn: set cadence time for tone to play in ms. For example, if set CanOn as 100, the Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 46: Ring

    Ring Cadence-Cadence: Set Ring cadence for PSTN port. User can set 8 sets of cadence value and select one set to be system Ring cadence. Select Cadence: Select which cadence to set value. Custom Cadence: Set ring cadence ON/OFF time in mini-second. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 47: Pstn

    Off-Hook Alarm: Set off-hook alarm time. If phone set has been off-hook, after this time, from phone set will hear alarm. OoS: You can define the DSCP code here for SIP and RTP. Higher DSCP, higher priority. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 48: Config

    Save Settings to File: Save current VoIP settings to a file. Load Settings from File: Browse and load setting from file. Reset Settings to Default: Press Reset to reset settings of VoIP to default values. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 49: Management

    WellGate 3512 Technical Manual EN-V1.00 Management Status In this page can show the current status and some basic settings of the WG3512. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 50: Statistics

    DynDNS and TZO. Domain Name: Input the applied domain name for WG3512. User Name/Email: Input user name for DDNS server login. Password/Key: Input password for DDNS server login. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 51: Time Zone Setting

    Enable NTP client update: check to enable NTP update. Once this function is enabled, WG3512 will automatically update current time from NTP server. NTP Server: User may select prefer NTP sever or input address of NTP server manually. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 52: Denial-Of-Service

    System all/wireless/Dos: select which log you want to check. Related information will be shown at below. Enable Remote Log: Once user input Log Server IP Address, all selected log will be restored Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 53: Upgrade Firmware

    Select File: browse and select file you want to upgrade and press Upload to perform upgrade. Please wait till on screen shows related information after upgrade finished. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 54: Save/Reload Settings

    Reset Settings to Default: pres Reset will clean all current configurations and return to default values. Password This page is used to set the account to access the web server of Access Point. Empty user name and password will disable the protection. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 55: System Reboot

    New Password: input password for this user. Confirmed Password: confirm password again. System Reboot Press Reboot to reboot system. Please wait for a few minutes and reload web page again. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 56: Chapter 4 Wireless Operation Modes

    Step2: Enter 192.168.123.123 for the WEB interface of WG3512 with no login ID and password. Step3: Go to the page of Operation, set WG3512 to Gateway mode. In this mode, NAT is Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 57: Access Point With Bridge Mode (Without Nat)

    TCP/IP LAN to set the network settings to connect with your Office LAN. And you may also need to disable DHCP server function of WG3512, otherwise there may 2 DHCP Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 58: Client (Infrastructure)

    NAT function is disabled. All the WAN related function and firewall are not supported. Step4: When Bridge mode is enabled, the WAN configuration is disabled, so please go to the Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 59: Client (Ad-Hoc)

    Step5: At this time, the PC or Notebook with wireless network adapter should be able to search the WG3512 and use WiFi to send packets to PC connected to the LAN of WG3512. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 60: P2P Bridge

    Step3: Go to the page of Operation, set WG3512 to Bridge mode. In this mode, all Ethernet ports and wireless interface are bridged together and NAT function is disabled. All the WAN related function and firewall are not supported. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 61: Wds Repeater

    Office LAN In WG3512-A: Step1: Power on WG3512-A and set one pc to connect with WG3512-A’s LAN. Set PC to DHCP then PC should got an IP as 192.168.123.x by default. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 62 When both WG3512-A and WG3512-B has been setup successfully, you could go to the page of Wireless WDS Settings Show Statics, to confirm the WDS Statics. When WDS is enabled, both WG3512 need to have the same channel, the SSID of both Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 63: Universal Repeater

    Step1: Power on WG3512-B and set one pc to connect with WG3512-B. Set PC to a Fixed IP, such as 192.168.123.100. Step2: Enter 192.168.123.123 for the WEB interface of WG3512-B with no login ID and Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 64: Wisp

    PPPOE, DHCP client or static IP. Below is an example to show you how to implement WISP mode. WG3512 LAN with NAT WISP Outdoor AP Office LAN Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 65: Wisp + Universal Repeater

    DHCP then PC should got an IP as 192.168.123.x by default. Step2: Enter 192.168.123.123 for the WEB interface of WG3512-A with no login ID and password. Step3: Go to the page of Operation, set WG3512-A to Gateway mode. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 66 Step9: If configuration ok, PCs of office LAN could send packets via WISP Outdoor AP. And the Notebook of the WG3512’s WLAN should be also use WiFi to access internet via WISP Outdoor AP. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 67 FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the WellGate 3512 Technical Manual EN-V1.00 following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
