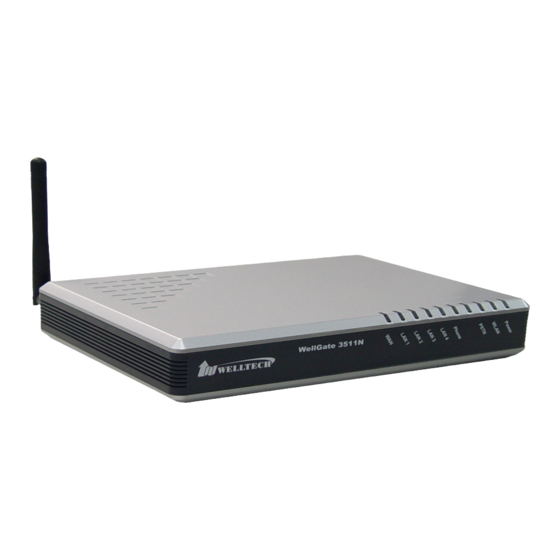

Wi-Fi VoIP Gateway
(WellGate 3511N)
Technical Manaul
Revision information
Version
Date
EN-V1.00
Jun-18-2009
Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
WellGate 3511N Technical Manual V.100
Welltech
Description
st
1
English version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WellGate 3511N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WELLTECH WellGate 3511N

Summary of Contents for WELLTECH WellGate 3511N

  • Page 1 WellGate 3511N Technical Manual V.100 Welltech Wi-Fi VoIP Gateway (WellGate 3511N) Technical Manaul Revision information Version Date Description EN-V1.00 Jun-18-2009 English version Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 2: Table Of Contents

    　 Time Zone Setting ....................... 17 　 LAN Interface Setup......................18 　 WAN Interface Setup......................19 　 Wireless Basic Settings ....................... 22 　 Wireless Security Setup....................... 23 　 Operation Mode............................ 28 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 3 Status ........................... 89 　 Statistics..........................90 　 DDNS ..........................90 　 Time Zone Setting ....................... 91 　 Denial-of-Service ........................ 93 　 Log ............................93 　 Upgrade Firmware.......................94 　 Save/Reload Settings ......................95 　 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 4 Access point With Bridge mode (Without NAT)..............99 　 Client (Infrastructure) ........................100 Client (Ad-hoc)............................ 101 P2P Bridge............................102 WDS Repeater ............................ 103 Universal Repeater ..........................105 WISP..............................106 WISP + Universal Repeater ....................... 107 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 5: Chapter 1 Overview Of The Wg3511N

    Chapter 1 Overview of the WG3511N WellGate 3511N is a one-port FXS + one PSTN wireless gateway, which supports RFC3261 SIP protocol. Telephone will switch to PSTN port automatically under power failure. User can also select to dial out through PSTN line manually.

  • Page 6: Telephony Features

    PSTN Bypass: Power Failure, Manually Call Waiting Call Hold Blind Transfer Call Forward 3-way Conference 10 Speed Dials T.38 FAX Dimension 17.5 x 12.5 x 3.2 cm Protocol SIP RFC3261 TCP/UDP/IP/ICMP/ARP Management Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 7 Web-based configuration and management interface Firmware update through web Configuration backup/restore to/from a file. Reset configuration to factory default IVR-Configuration by phone keys with Interactive Voice Prompts Certification CE, FCC Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 8: Front View

    LAN 1 Network is connected Network is not Network is transmitting or connected receiving data. Network is connected Network is not Network is transmitting or connected receiving data. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 9: Back View

    LAN 4 3 2 1 10/100 Base-T; RJ-45 socket, complied with ETHERNET 10/100base-T. Specification of connector Ethernet Port Ethernet port is for connecting WG3511N to network, transmit rate supports 10/100 Base-T. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 10: Call Features

    2) Phone press “*1” 3) B will be put on hold, and Phone will hear Dial tone. 4) Phone dial to B, both Phone and A will hear ring back tone. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 11 WellGate 3511N Technical Manual EN-V100 5) B picks up, B and C in communication, A hear busy tone and disconnect. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 12: Chapter 2 Configuring The Wg3511N Through Voice Prompt And Phone Set

    Voice SIP register ID #122 #122# #123 #123# Voice netmask Voice Network Voice gateway #124 #124# Settings Voice DNS #125 #125# #126 #126# Voice WAN IP address Voice firmware version #128 #128# Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 13 101Forward Type:1: Forward setting +Forwarded Phone Number Immediate forward2. Busy forward3. No answer forward Disable forward setting #141 #141# Apply Setting #195 #195# Others Reset to default #198 #198# Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 14: Chapter 3 Configuring The Wg3511N Through Web Pages

    Please enter IP address of WG3511N in web browser. The default IP address of WG3511N is 192.168.123.123. and default user name and password is root/root, and the user can see web interface main screen as below. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 15: Step 5. Start To Configure

    1. Apply Changes: After change or input any parameter, press this button will save data into WG3511N. 2. Reset: Press this button will clean data input by user and restore to original data. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 16: Setup Wizard

    Bridge: In this mode, all Ethernet ports and wireless interface are bridged together and NAT function is disabled. All the WAN related function and firewall are not supported Wireless ISP: In this mode, all Ethernet ports are bridged together and the wireless client will Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 17: Time Zone Setting

    Enable NTP client update: User can update time of WG3511N from NTP server if this function is enabled. Time Zone Select: Select the time zone according to location. NTP server: User may select one NTP server for WG3511N to update current time. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 18: Lan Interface Setup

    Access Point. Here you may change the setting for IP address, subnet mask, DHCP, etc… IP Address: Set IP address of LAN interface. Subnet Mask: Set subnet mask of LAN interface. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 19: Wan Interface Setup

    1) IP Address: set IP address of WAN interface. 2) Subnet Mask: set subnet mask of WAN interface. 3) Default Gateway: set default gateway of WAN interface. 4) DNS: set Domain Name Server for WAN interface. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 20 WellGate 3511N Technical Manual EN-V100 DHCP Client: Set WAN interface as DHCP mode. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 21 WellGate 3511N Technical Manual EN-V100 PPPoE: Set WAN interface as PPPoE mode. 1) User Name: Set user name of PPPoE connection. 2) Password: Set password of PPPoE connection. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 22: Wireless Basic Settings

    WG3511N from other WiFi AP, and it is also referred to as the ESSID (Extended Service Set Identifier). You may use the default SSID unless there more than one WG3511N in the same Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 23: Wireless Security Setup

    This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Encryption: Set encryption as none, WEP, WPA, WPA2 or WPA2 Mixed. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 24 Encryption Key 1/2/3/4: user can set 4 sets of encryption keys. Keys 1-4 allow you to easily change wireless encryption settings to maintain a secure network. WEP key is either 5/10 or 13/26 ASCII/hexadecimal characters based on user select 64 or 128 bits key length. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 25 2) WPA(TKIP): only user with the same WPA pre-shared key can connect to WG3511N and transmit data using TKIP encryption. • Pre-Shared Key Format: Select Pre-Shared Key Format as Passphrase or Hex (64 characters). • Pre-Shared Key: set pre-shared key manually. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 26 3) WPA2(AES): AES ( Advance Encryption Standard) is the U.S. government’s next generation cryptography algorithm. • Pre-Shared Key Format: Select Pre-Shared Key Format as Passphrase or Hex (64 characters). • Pre-Shared Key: set pre-shared key manually. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 27 WellGate 3511N Technical Manual EN-V100 4) WPA2 Mixed • Pre-Shared Key Format: Select Pre-Shared Key Format as Passphrase or Hex (64 characters). • Pre-Shared Key: set pre-shared key manually. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 28: Operation Mode

    Site-Survey page. The connection type can be setup in WAN page by using PPPOE, DHCP client, PPTP Client or static IP. For more information regarding Operation Modes, please refer to Chapter 4 Wireless Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 29: Wireless

    Ad hoc. Infrastructure represents a wireless network centered about an access point. Ad hoc represents a wireless network composed only of stations within mutual communication range of each other. (No Access Point). Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 30 End time: The time to turn off the Wifi RF and feature (24 hours format) For more information regarding WDS, AP+WDS and Universal Repeater mode, please refer to Chapter 4 Wireless Operation Modes. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 31: Advanced Setting

    Authentication Type: Select authentication type as Open System, Shared Key, or Auto. With Open System authentication, a wireless PC can join any network and receive any messages that are not encrypted. With Shared Key authentication, only those PCs that possess the Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 32 Wi-Fi network so that other applications and traffic are less likely to slow them. Turbo Mode: Enable 802.11 turbo mode or not. Please note it will have compatible issue when using auto or always mode. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 33: Security

    13 ASCII characters are needed if 64 bit WEP is used Use 802.1x Authentication: Check to use Radius 802.1x authentication and select authentication level as WEP 64 bits or 128bits. In this case, please set Authentication Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 34 The advantage is that the client reduces the time that it’s disconnected to the network. Authentication RADIUS Server: set port, IP address, and password of Radius Server for WG3511 to initial a Radius connection and get dynamic WEP key. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 35 WellGate 3511N Technical Manual EN-V100 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 36: Access Control

    MAC address: Enter 12 digits in hex numbers in this field and press Apply Changes to associate with other’s Wireless access point. Before you want to use WDS Repeater mode, you have to enter the other’s AP/Router MAC address that the device want to connect. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 37: Site Survey

    Site Survey This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 38: Wps

    Changes”. However, this would not be recommended since the registrar side needs to be supported with four digit PIN. Start PBC : Clicking this button will invoke the PBC method of WPS. It is only used when AP acts as a registrar. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 39: Tcp/Ip Settings

    802.1d Spanning: Enable or disable 802.1d Spanning Tree function. Clone mac address: Whether clone the specified mac address when send out the traffic or not Domain name: Specified the domain used Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 40: Wan Interface

    10) Enable IPsec pass through on VPN connection: check to enable IPsec function. 11) Enable PPTP pass through on VPN connection: check to enable PPTP pass through function. 12) Enable L2TP pass through on VPN connection: check to enable L2TP pass through Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 41 4) Enable UPnP: check to enable UPnP function. 5) Enable Ping Access on WAN: If this function is checked to enable, user can reach WG3511N via Ping WAN IP address. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 42 3) Service Name: Set Service Name of PPPoE for description. 4) Connection Type: Set PPPoE connection type to be Continuous/ Connect on Demand/ Manual. If user set type as Continuous, WG3511N will keep trying to connect to server Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 43 13) Enable PPTP pass through on VPN connection: check to enable PPTP pass through function. 14) Enable L2TP pass through on VPN connection: check to enable L2TP pass through function. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 44: Firewall

    Entries in this table are used to restrict certain types of data packets from your local network to Internet through the Gateway. Use of such filters can be helpful in securing or restricting your local network. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 45: Ip Filtering

    Enable IP Filtering: check to enable IP Filtering function. Local IP Address: set IP Address for IP filtering. Protocol: set protocol as TCP or UDP or both protocol. Comment: Make description for this IP filtering rule. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 46: Mac Filtering

    Internet through the Gateway. Use of such filters can be helpful in securing or restricting your local network. Enable MAC Filtering: check to enable MAC Filtering function. MAC Address: set MAC Address for MAC filtering. Comment: Make description for this MAC filtering rule. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 47: Url Filtering

    URL filter is used to deny LAN users from accessing the internet. Block those URLs which contain keywords listed below. Enable URL Filtering: check to enable URL Filtering function. URL Address: set URL address for URL filtering function. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 48: Port Forwarding

    IP Address: set IP address for port forwarding. Protocol: Set Protocol type for port forwarding. Port Range: set start port and end port for port forwarding range. Comment: Make description for this port forwarding rule. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 49: Dmz

    Web (HTTP ) servers, FTP servers, SMTP (e-mail) servers and DNS servers. Enable DMZ: check to enable DMZ function. DMZ Host Address: set IP address for DMZ function. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 50: Voip Settings

    The setup Home User wizard will guide you to configure VoIP setting for regular user setting. Please follow the setup Home User wizard step by step for your VOIP settings. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 51 Outbound Proxy: Check to enable Outbound Proxy mode. Outbound Proxy Addr: If user enables Outbound Proxy, please input Outbound Proxy address. Outbound Proxy Port: If user enables Outbound Proxy, please input Outbound Proxy port Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 52 Short Ring before Caller ID: Check to send short ring before caller ID. Dual Tone before Caller ID: Check to send dual tone before caller ID. Caller ID Prior First Ring: Check to send caller ID before first ring. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 53 Short Ring before Caller ID: Check to send short ring before caller ID. Dual Tone before Caller ID: Check to send dual tone before caller ID. Caller ID Prior First Ring: Check to send caller ID before first ring. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 54 Short Ring before Caller ID: Check to send short ring before caller ID. Dual Tone before Caller ID: Check to send dual tone before caller ID. Caller ID Prior First Ring: Check to send caller ID before first ring. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 55 Short Ring before Caller ID: Check to send short ring before caller ID. Dual Tone before Caller ID: Check to send dual tone before caller ID. Caller ID Prior First Ring: Check to send caller ID before first ring. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 56 This page is used to configure the parameter for PSTN prefix. Here you can set the prefix list to dial out from PSTN, it doesn't need to dial *0 to switch to PSTN. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 57 Forward by click the item value of No Answer Forward for PSTN. Off: FXO (PSTN) is send directly to FXS without any forward setting. This is the default behavior. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 58 Outbound Proxy: Enable or disable to use outbound proxy server Outbound Proxy Addr: PSTN to VOIP calling out SIP outbound proxy server Outbound Proxy Port: PSTN to VOIP calling out SIP outbound proxy server port Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 59 Password: PSTN to VOIP calling out SIP authentication user password Proxy Addr: PSTN to VOIP calling out SIP proxy server address Proxy Port: PSTN to VOIP calling out SIP proxy server port Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 60 Outbound Proxy Enable: Enable or disable to use outbound proxy server Outbound Proxy Addr: PSTN to VOIP calling out SIP outbound proxy server Outbound Proxy Port: PSTN to VOIP calling out SIP outbound proxy server port Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 61: Fxs

    3) DTMF Relay: Select DTMF Relay to be In band, RFC 2833, or SIP INFO. 4) RFC2833 Payload Type: If user select DTMF as RFC 2833 type, here can modify RFC 2833 payload type. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 62 1) Replace prefix code: Select to enable (On) or disable (Off) prefix replace function. 2) Replace rule: Set prefix replace rule. Once user dial number matched prefix, Gateway will replace the number with assigned number. Available parameters are “0~9”, “#”, “*”, “+”, Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 63 1) DND Mode: You can select 3 mode of DND. The call will be always rejected if Always is selected. The call will be rejected by below Time setting (From and To) if Enable is selected. The call will be accepted if Disable is selected. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 64 10) Caller ID Prior First Ring: Check to send caller ID before first ring. 11) Caller ID DTMF Start Digit: Set caller ID DTMF start digit. 12) Caller ID DTMF End Digit: Set caller ID DTMF end digit. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 65 14) Flash Time Setting (ms) [ Space:10 , Max:2000 ]: Set Minimum and Maximum Flash time. 15) Speaker Voice Gain (dB) [ -32~31 ],Mute:-32: Set Speaker voice volume. 16) Mic Voice Gain (dB) [ -32~31 ],Mute:-32: Set microphone voice gain volume. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 66 WellGate 3511N Technical Manual EN-V100 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 67 WellGate 3511N Technical Manual EN-V100 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 68 WellGate 3511N Technical Manual EN-V100 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 69: Fxo

    10) Outbound Proxy: Check to enable Outbound Proxy mode. 11) Outbound Proxy Addr: If user enables Outbound Proxy, please input Outbound Proxy address. 12) Outbound Proxy Port: If user enables Outbound Proxy, please input Outbound Proxy port. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 70 4) Select: User can delete selected speed dial data. Abbreviated Dial 1) Abbreviated Number: The abbreviated number for dialing 2) Phone Number: The phone number to be replaced when abbreviated number is dialed. Dial plan Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 71 1) Off-Hook Password: This is the PIN code used for PSTN to VOIP when FXS (Phone) is not answered. When it is set, before forward to VOIP, the caller will be asked for PIN code. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 72 13) Flash Time Setting(ms) [ Space:10 , Max:2000 ]: Set Minimum and Maximum Flash time. 14) Speaker Voice Gain(dB) [ -32~31 ],Mute:-32: Set Speaker voice volume. Mic Voice Gain(dB) [ -32~31 ],Mute:-32: Set microphone voice gain volume. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 73 WellGate 3511N Technical Manual EN-V100 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 74 WellGate 3511N Technical Manual EN-V100 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 75 WellGate 3511N Technical Manual EN-V100 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 76: Tone

    WellGate 3511N Technical Manual EN-V100 Tone Select Country Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 77 100ms. 15) CanOff1set cadence time for tone not to play in ms. For example, if set CanOff as 100, the tone will stop playing for 100ms. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 78 100ms. 17) CanOff3set cadence time for tone not to play in ms. For example, if set CanOff as 100, the tone will stop playing for 100ms. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 79 WellGate 3511N Technical Manual EN-V100 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 80: Ring

    Ring Cadence-Cadence: Set Ring cadence for PSTN port. User can set 8 sets of cadence value and select one set to be system Ring cadence. Select Cadence: Select which cadence to set value. Custom Cadence: Set ring cadence ON/OFF time in mini-second. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 81: Other

    Off-Hook Alarm Time: Set off-hook alarm time. If phone set has been off-hook, after this time, from phone set will hear alarm. VoIP to PSTN 1) Caller ID Auto Detection: PSTN caller ID detection mode. It could be manual (off), Auto detect Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 82 Voice VLAN is used for voice and sip. Data VLAN is internally used for LAN PC. Video VLAN is used only for video transmission such IP-TV can be applied on the video port which is near the WAN port. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 83: Config

    Config Auto Config: By using simple http, Wellgate 3511N can be set to auto provisioning when unit startup or scheduled period. Firstly, you need provide a web server to hold each device’s configuration file crated by tools supplied by Welltech. Then when 3511N is configured to be auto provisioned, 3511N will look up the configuration file in web server and using it.
  • Page 84 TFTP: Use TFTP to get the configuration file. TFTP Server Address : TFTP server IP address File Path: Configuration File download path Expire Time: How frequency that Wellgate 3511N will check the configuration again from server in days. Auto Firmware Update WG3511N can support automatically firmware upgrade when it is startup or based on the Copyright ©...
  • Page 85 For 3511N, it should contain at least the following lines as an example: Version:100 Name: apimg_ Version:100 Name: root_ Version:100 Name: webpages_ Base on the above lines, TFTP client will look for the following files from server: apimg_100.dat root_100.dat webpages_100.dat Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 86 The version control file contains the following format. Version:YYYY Name:ZZZZ For 3511N, it should contain at least the following lines as an example: Version:100 Name: apimg_ Version:100 Name: root_ Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 87 “;” : Remark line MAC Address : WG3511N MAC address Display Name: Display name Number: Telephone number for register to proxy server. Login ID: Login number for register to proxy server Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 88 Key : Reserved Hint: If input file format is text , the converting tool will exporting binary file. If input file format is binary , the converting tool will exporting text file Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 89: Management

    Reset Settings to Default: Press Reset to reset settings of VoIP to default values. Management Status In this page can show the current status and some basic settings of the WG3511N. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 90: Statistics

    Dynamic DNS is a service, which provides you with a valid, unchanging, internet domain name (an URL) to go with that (possibly ever-changing) IP-address. Before setting this page, you should click below link to DynDNS or TZO to apply an account for DDNS. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 91: Time Zone Setting

    Enable NTP client update: check to enable NTP update. Once this function is enabled, WG3511 will automatically update current time from NTP server. NTP Server: User may select prefer NTP sever or input address of NTP server manually. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 92 WellGate 3511N Technical Manual EN-V100 Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 93: Denial-Of-Service

    Enable DoS Prevention: Check to enable DoS function. User may set other related configurations about DoS below. This page can be used to set remote log server and show the system log. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 94: Upgrade Firmware

    Select File: browse and select file you want to upgrade and press Upload to perform upgrade. Please wait till on screen shows related information after upgrade finished. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 95: Save/Reload Settings

    Save Settings to File: save current settings to a file. Load Settings from File: browse a file and upload to reload settings. Reset Settings to Default: pres Reset will clean all current configurations and return to default values. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 96: Password

    This page is used to set the account to access the web server of Access Point. Empty user name and password will disable the protection. User Name: Enter user name. New Password: input password for this user. Confirmed Password: confirm password again. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 97: Logout

    WellGate 3511N Technical Manual EN-V100 Logout Press Reboot to reboot system. Please wait for a few minutes and reload web page again. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 98: Chapter 4 Wireless Operation Modes

    Step2: Enter 192.168.123.123 for the WEB interface of WG3511N with no login ID and password. Step3: Go to the page of Operation, set WG3511N to Gateway mode. In this mode, NAT is Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 99: Access Point With Bridge Mode (Without Nat)

    TCP/IP LAN to set the network settings to connect with your Office LAN. And you may also need to disable DHCP server function of WG3511N, otherwise there may 2 DHCP Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 100: Client (Infrastructure)

    NAT function is disabled. All the WAN related function and firewall are not supported. Step4: When Bridge mode is enabled, the WAN configuration is disabled, so please go to the Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 101: Client (Ad-Hoc)

    Step5: At this time, the PC or Notebook with wireless network adapter should be able to search the WG3511N and use WiFi to send packets to PC connected to the LAN of WG3511N. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 102: P2P Bridge

    Step3: Go to the page of Operation, set WG3511N to Bridge mode. In this mode, all Ethernet ports and wireless interface are bridged together and NAT function is disabled. All the WAN Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 103: Wds Repeater

    Notebook with wireless network Adapter network Adapter WG3511-A LAN IP: 192.168.123.123 LAN IP: 192.168.123.200 WG3511-B BSSID: 0001a8111111 BSSID: 0001a8222222 DHCP Server: enable DHCP Server: disable Office LAN Office LAN In WG3511N-A: Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 104 2 APs and access both the Office LAN. Note: When both WG3511N-A and WG3511N-B has been setup successfully, you could go to Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 105: Universal Repeater

    Step6: Go to the page of Wireless Security to set the authentication method if necessary. In WG3511N-B: Step1: Power on WG3511N-B and set one pc to connect with WG3511N-B. Set PC to a Fixed Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 106: Wisp

    PPPOE, DHCP client or static IP. Below is an example to show you how to implement WISP mode. WG3511 LAN with NAT WISP Outdoor AP Office LAN Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.

  • Page 107: Wisp + Universal Repeater

    Step1: Power on WG3511N-A and set one pc to connect with WG3511N-A’s LAN. Set PC to DHCP then PC should got an IP as 192.168.123.x by default. Step2: Enter 192.168.123.123 for the WEB interface of WG3511N-A with no login ID and Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
  • Page 108 Step9: If configuration ok, PCs of office LAN could send packets via WISP Outdoor AP. And the Notebook of the WG3511N’s WLAN should be also use WiFi to access internet via WISP Outdoor AP. Copyright © 2007 Welltech Computer Co., Ltd. All right reserved.
