6.8 WiFi Stick Connection

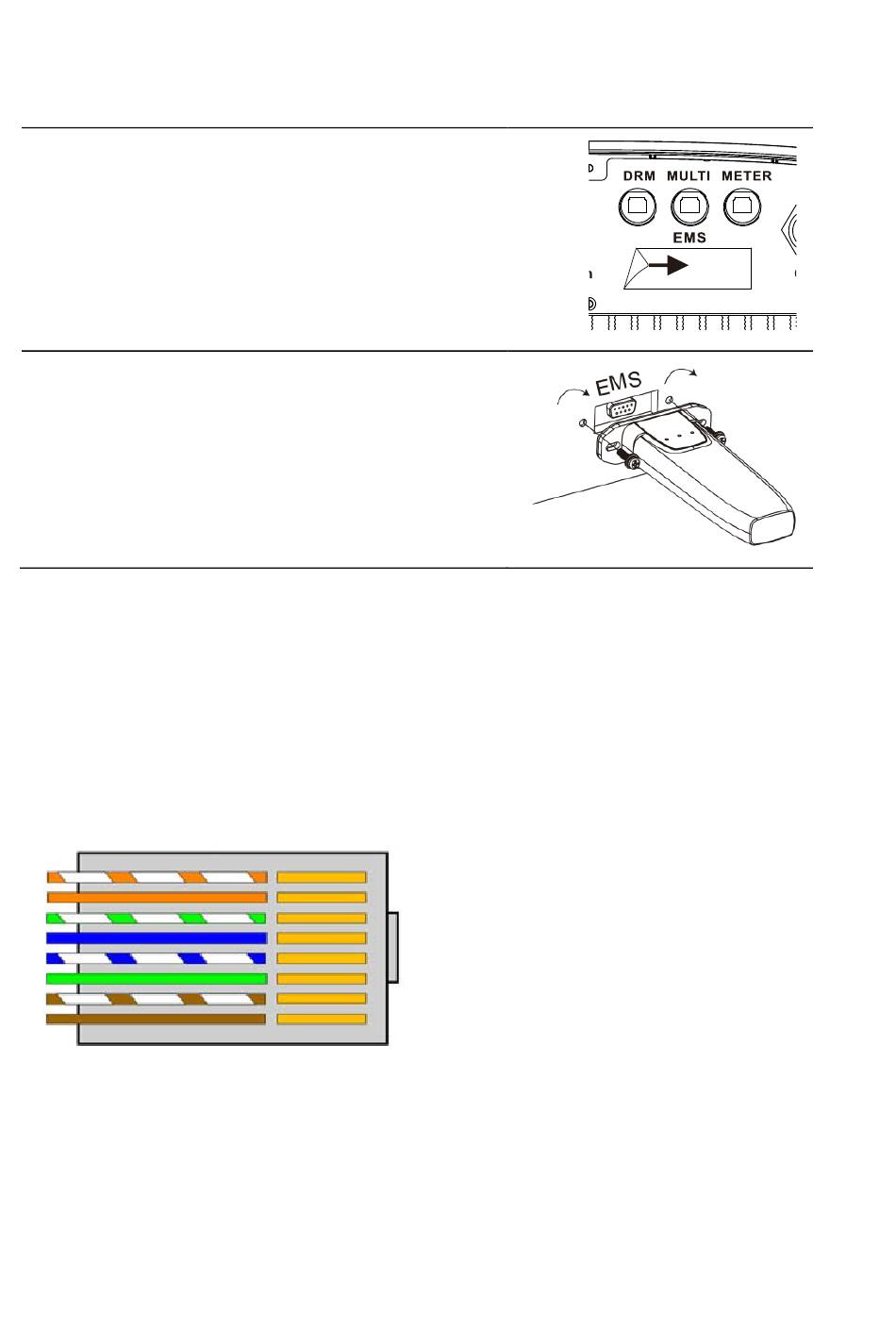

Procedure:
STEP 1:
Peel off the tape that covers the EMS
•
port.
STEP 2:
Insert the WiFi stick to the EMS port
•
and fasten the two screws tight.

6.9 DRM Connection

DRM is provided to support several demand response modes by certain control
signals.
"DRM" Connector Pin Definition
1
2
3
4
5
6
7
8
25
1. DRM1/5
2. DRM2/6
3. DRM3/7
4. DRM4/8
5. 3.3V
6. DRM0
7. 3.3V
8. GND
