6.6.2 BMS Communication Connection
Please check whether the BMS communication cable in the accessory box is
appropriate for the battery. If you are not sure, please confirm with your battery
vendor.
Procedure:

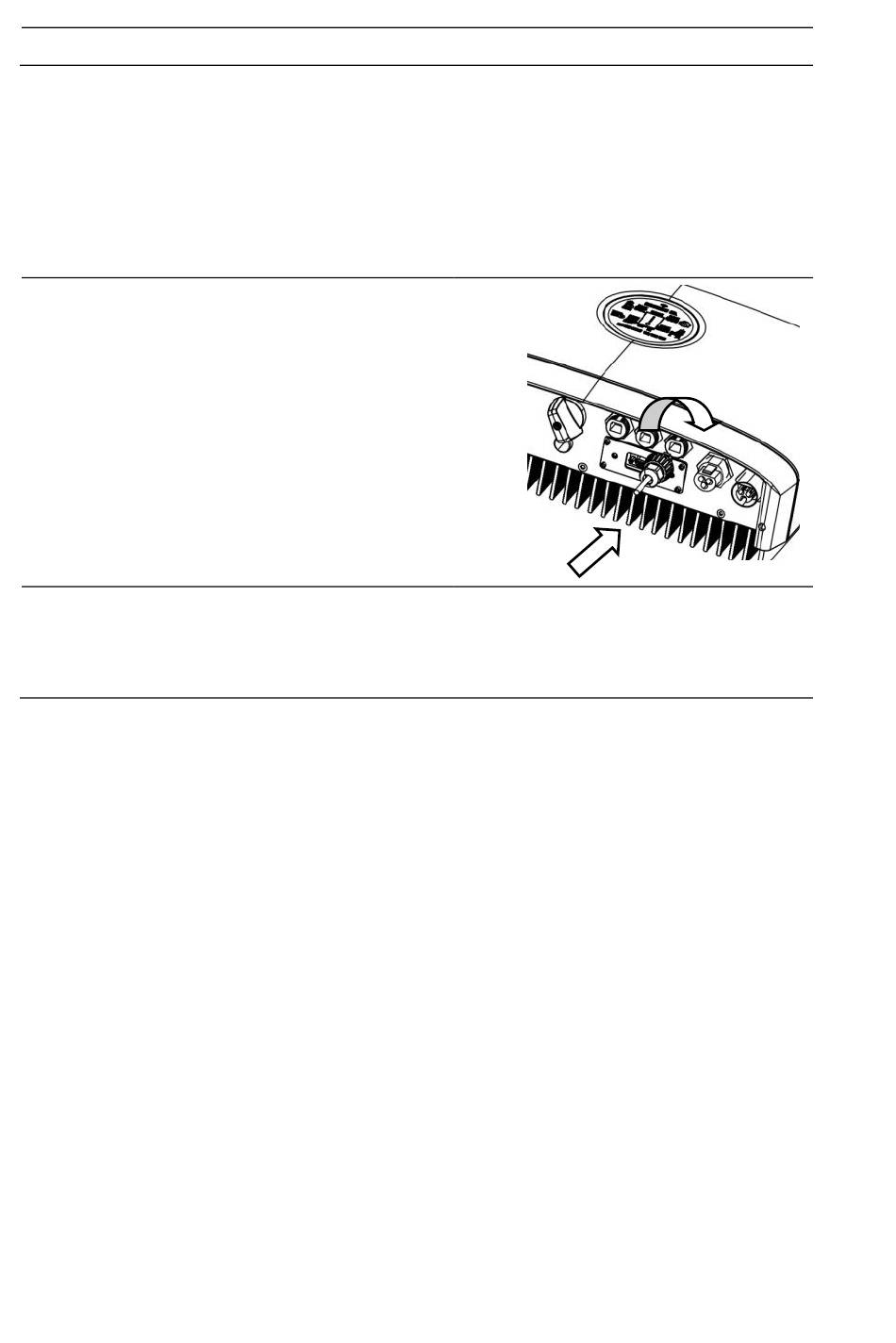

STEP 1:
Please
•
connector with water-proof cap into
the port marked with "BMS" on
inverter and fasten the cap.
STEP 2:
Please insert the other end of the cable in the corresponding port
•
in battery.
BMS Connector Pin Definition:
insert the RJ45
1. BMS_CAN_H
2. BMS_CAN_L
3. BMS_485_A
4. GND
5. BMS_485_B
6. GND
7. NULL
8. NULL
