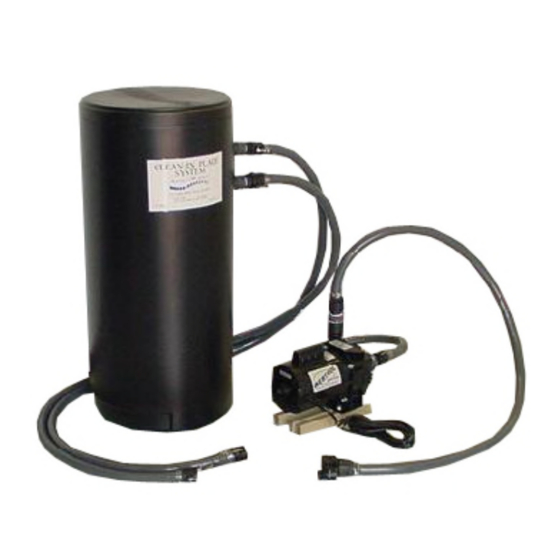

AmeriWater CLEAN IN PLACE CIP2 Manual

Clean in place
Hide thumbs

Advertisement

Quick Links

Download this manual

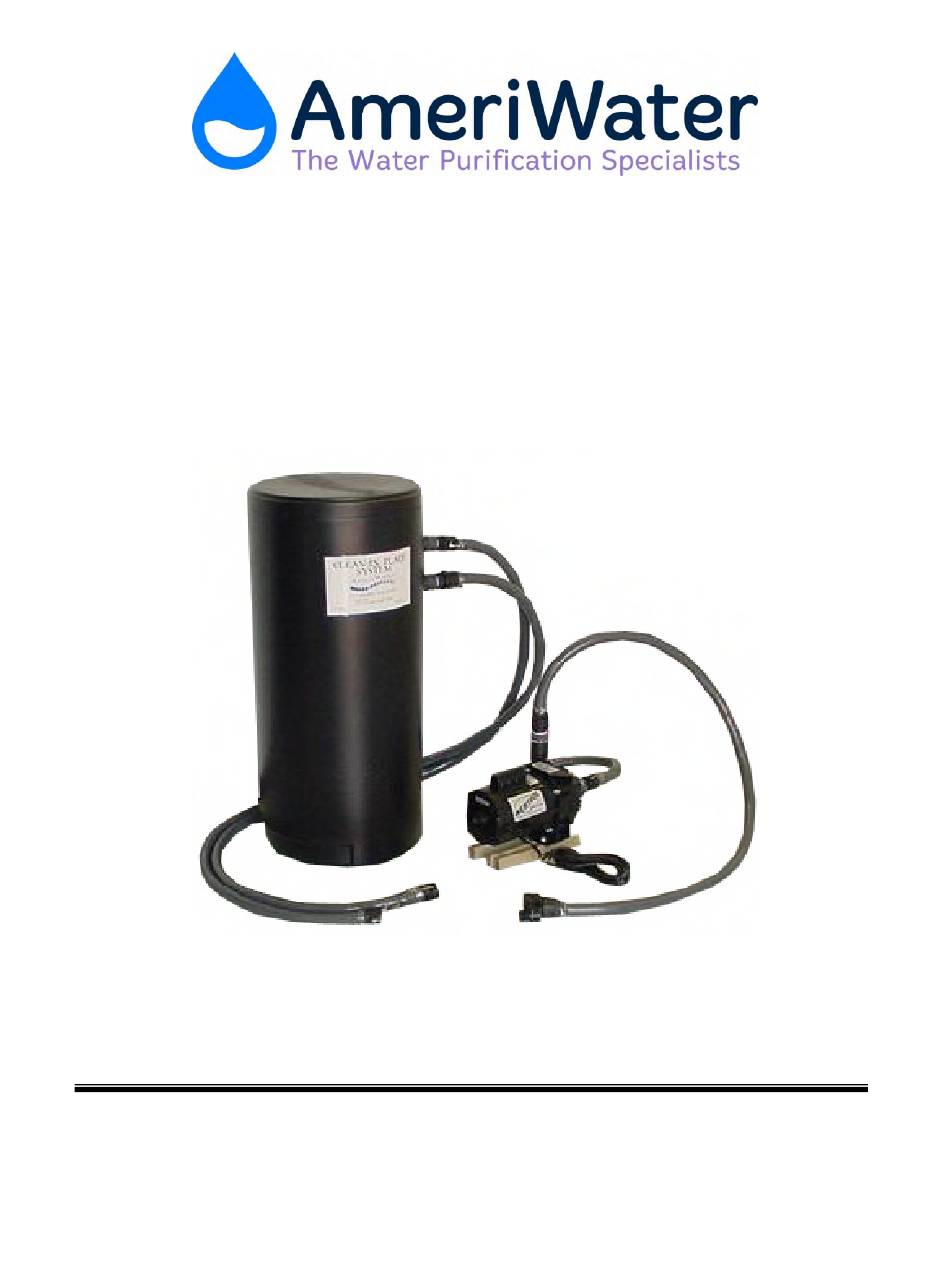

CLEAN IN PLACE
MODEL CIP2
Manufactured With Pride
In The USA
www.ameriwater.com • 800-535-5585
AmeriWater • 3345 Stop 8 Rd. • Dayton, OH 45414
Part Number: 98-0008
Revision: G

Advertisement

loading
Need help?

Need help?

Do you have a question about the CLEAN IN PLACE CIP2 and is the answer not in the manual?

Questions and answers

Related Manuals for AmeriWater CLEAN IN PLACE CIP2

Summary of Contents for AmeriWater CLEAN IN PLACE CIP2

  • Page 1 CLEAN IN PLACE MODEL CIP2 Manufactured With Pride In The USA www.ameriwater.com • 800-535-5585 AmeriWater • 3345 Stop 8 Rd. • Dayton, OH 45414 Part Number: 98-0008 Revision: G...

  • Page 3: Table Of Contents

    2. CHEMICALS REQUIRED ................1 3. SET UP ......................2 4. INSTALLATION DIAGRAM ................4 5. HIGH pH CLEANING ..................6 6. LOW pH CLEANING ..................8 7. AMERIWATER IRO SPECIFIC INSTRUCTIONS ........10 8. SPARE PARTS LIST ................... 10...

  • Page 4: Objective

    The objective of the Clean In Place (CIP) system is to is to introduce high pH and low pH membrane cleaners to the AmeriWater MRO system at low pressure and high velocity. This action removes scale and organic contaminants from the MRO membranes and improves system performance.

  • Page 5: Set Up

    3. SET UP Remove the hoses and pump from the CIP tank (pump, hoses and fittings are shipped inside the tank from the manufacturer). Rinse the CIP tank and hoses with clean water to remove any debris or contamination after un-packing or after the CIP system has been in storage.
  • Page 6 (the CIP in reverse flow), the membranes will be destroyed. NOTE: When connecting the CIP2 to an AmeriWater MRO 3, 4 or 5, the existing MRO hoses (one ¾” hose and two ½” hoses) will need to be cut about 12” from the hose ends opposite the MRO.

  • Page 7: Installation Diagram

    REJECT WATER TO CIP PRODUCT WATER TO CIP Fittings are provided to fit the AmeriWater MRO3, 4, 5, MROX & MROZ models, AmeriWater Industrial RO systems, and other common RO systems. Select the correct fittings (fittings included) to mate to the RO system at your facility.
  • Page 8 MROZ Connection to CIP tank ISOLATE FEED WATER SUPPLY AND RELEVE PRESSURE BEFORE REMOVING CIP INLET CAP FROM CIP PUMP DISCHARGE FEED WATER ISOLATION VALVE DISCONNECT THE CONCENTRATE LINE FROM THE QUICK CONNECT FITTING. CONNECT CONCENTRATE OUTLET TO THE CONCENTRTAE PORT ON THE CIP TANK DISCONNECT THE WEDGIT QUICK CONNECT FROM THE...

  • Page 9: High Ph Cleaning

    5. HIGH pH CLEANING NOTE: Be sure to remove carbon block filters (if applicable) from the RO before performing cleaning. Filters will be clogged by cleaning solution if not removed. Sediment filter may remain in the system. AmeriClean B is used first for the removal of biological and colloidal foulants. CAUTION: Do not to allow any cleaning solution to enter the PRODUCT line going to the storage tank (if applicable).
  • Page 10 In cases of heavy fouling, turn off the RO and CIP pump and allow the system to soak for a minimum of 30 minutes.* * Contact AmeriWater Technical Support or your local AmeriWater dealer for custom cleaning procedures if necessary.

  • Page 11: Low Ph Cleaning

    In cases of heavy fouling, turn off the RO and CIP pump and allow the system to soak for a minimum of 30 minutes.* * Contact AmeriWater Technical Support or your local AmeriWater dealer for custom cleaning procedures if necessary.
  • Page 12 After removing the spent chemical from the CIP2 tank. With the CIP2 pump discharge directed to drain, turn on the MRO and allow fresh water to flow into and through the RO and CIP2 for 10 minutes or until the pH of the water at the pump discharge is neutral (between 6 and 8).

  • Page 13: Ameriwater Iro Specific Instructions

    7. AMERIWATER IRO SPECIFIC INSTRUCTIONS 1. Close the PRODUCT, REJECT, and INLET valves to prevent incoming water from flowing into the RO or allowing water to flow out of the normal discharge hoses for PRODUCT WATER or REJECT WATER. 2. Turn OFF the power disconnect prior to opening the controller.
  • Page 14 ITEM PART NUMBER DESCRIPTION 30550421 TANK BRINE 18 X 40 BLACK w/ LID 041531839 BULKHD,1,TXS,PVC80 16-0037 Q-Con, 1.0 NPT Male X Male Insert, Polyglass 16-0036 Q-Con, 1.0 Coupling X HB, Polyglass 80510906 PUMP WEBTROL PC50R-1/2HP 91730086 Unistrut, 1.625 Fiberglass PE 91730212 UNST,SPRING NUT,.38,PLTD 92-0041...
