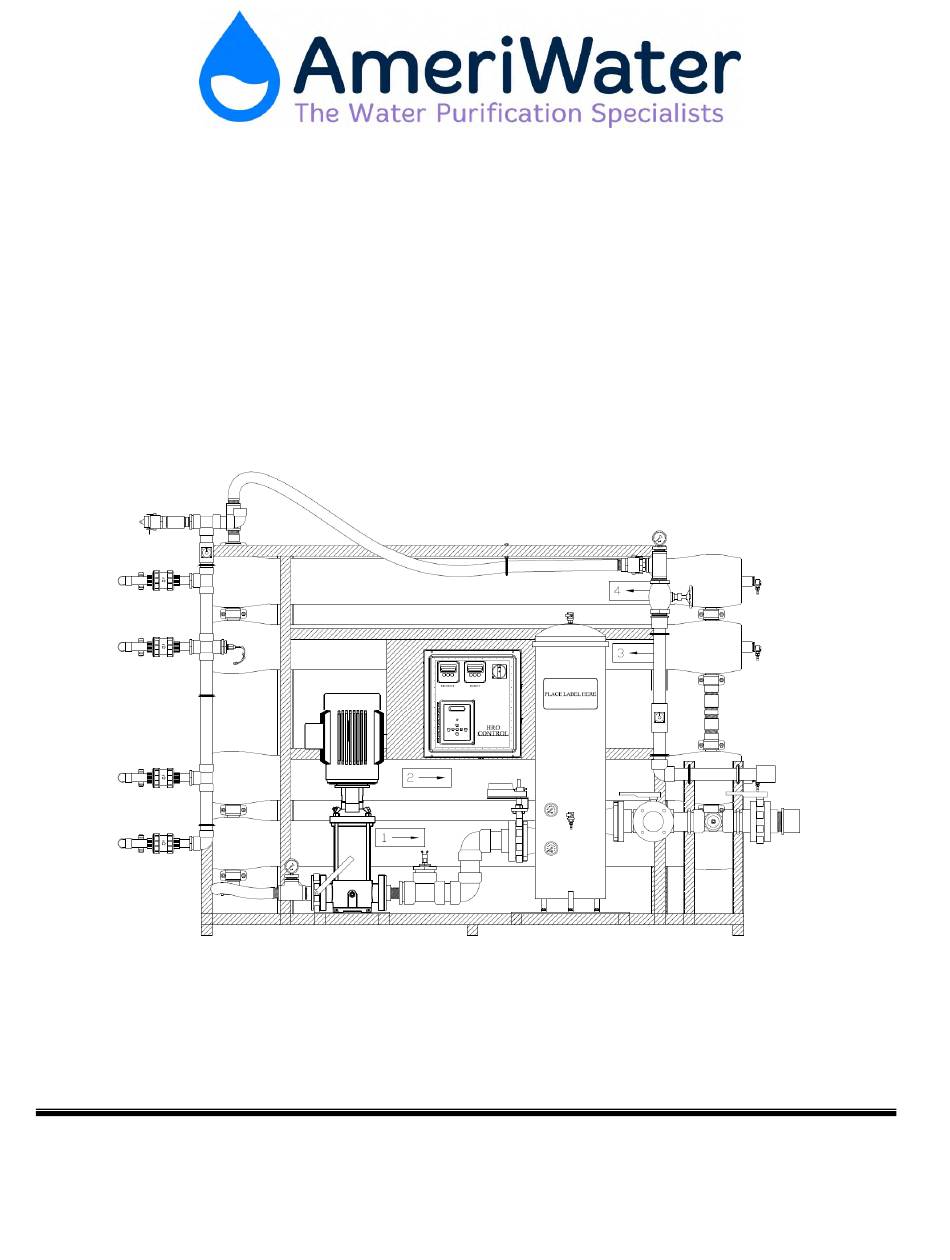

- Page 1 INDUSTRIAL RO (MODEL: 00HRO57600) OPERATION & MAINTENANCE MANUAL Manufactured With Pride In The USA www.ameriwater.com • 800-535-5585 AmeriWater • 3345 Stop 8 Rd. • Dayton, OH 45414 98-2021, Rev A...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION 1, GENERAL INFORMATION........................2 CAUTIONARY SYMBOLS ........................... 2 SECTION 2, TECHNICAL INFORMATION ........................3 HRO SPECIFICATIONS …………………………………………………………………………………..........3 FEED WATER REQUIREMENTS ......................... 4 SECTION 3, COMPONENTS AND SCHEMATICS ......................5 HRO COMPONENT IDENTIFICATION ........................ 5 HRO FLOW DIAGRAM ............................7 HRO ELECTRICAL SCHEMATIC .......................... -
Page 4: Section 1, General Information
SECTION 1, GENERAL INFORMATION CAUTIONARY SYMBOLS Caution, risk of electrical shock! Attention, risque de choc électrique! Open by qualified service personnel only! Ouverture par le personnel qualifié seulement! Refer to this Operation and Maintenance Manual for instructions and safety considerations. Référez-vous au manuel des Opérations et Entretien pour instructions et mesures de sécurité. -
Page 5: Section 2, Technical Information
95-98% Rejection Production 57,600 (GPD)* Product Flow (GPM)* Recovery: 50% - 75% (adjustable) ELECTRICAL: Three Phase 00HRO57600: 460V / 3-PH Horsepower 15 HP MEMBRANES: Size (in) 8” Dia. X 40” Long Quantity Type Polyamide Spiral-Wound FEED WATER REQUIREMENTS: Chlorine <0.1... -
Page 6: Feed Water Requirements
FEED WATER REQUIREMENTS The quality of the feed water to the reverse osmosis unit must meet the following requirements: Hardness, max ................ . 0.5grains Free Chlorine, max ..............0.01 ppm Turbidity, max ................1 NTU Silt Density Index (SDI), max ..............5 Hardness: If the feed water exceeds 0.5 grains, use a softener to reduce the hardness. -
Page 7: Section 3, Components And Schematics
SECTION 3, COMPONENTS AND SCHEMATICS HRO COMPONENT IDENTIFICATION... - Page 8 CONTROLLER: Control mechanism for the RO. PRODUCT CONDUCTIVITY SENSOR: Cell that reads the quality of the product water. PREFILTER INLET GAUGE: Gauge measuring the water pressure on the filter inlet in PSI. PREFILTER OUTLET GAUGE: Gauge measuring the water pressure on the filter outlet in PSI.
-
Page 9: Hro Flow Diagram
HRO FLOW DIAGRAM... -
Page 10: Hro Electrical Schematic
HRO ELECTRICAL SCHEMATIC... -
Page 11: Section 4, Ro+ Startup & Operation
SECTION 4, RO+ STARTUP & OPERATION INSTALLATION NOTE: This entire Operations Manual should be read before operating or servicing the RO. The Operations Manual should then be kept near the system and used as a reference and troubleshooting guide. Feed water to RO must not contain chlorine, iron, manganese, oil, or large quantities of organic matter. -
Page 12: Start-Up
START-UP Important Note: RO membranes cannot be started cold, they must be filled with feed water and allowed to soak for a minimum of 30 minutes. Connect the RO+ to your potable water supply. If blending both warm and cold water to improve product flow rate, do not exceed 25°C (77°F). -
Page 13: System Shutdown
Allow the RO to run for 30 minutes to allow components to fill with water, purge trapped air and to rinse the membranes. Begin to close the Reject throttle valve and adjust to a 50:50 ratio flow through the Reject flowmeter compared to the Product flowmeter. Continually watch the pump pressure gauge located at the inlet of the 1 membrane and keep adjusted to around 150 PSI. -
Page 14: Startup Log
STARTUP LOG... -
Page 15: Section 5, Ro+ Controller
SECTION 5, RO+ CONTROLLER FRONT PANEL CONTROLS AND INDICATORS DISPLAY FIGURE 5.1 DISPLAY - Shows status of system. ALARM LAMP - Flashes when fault causes an RO system shut down. On steady when a Setpoint is exceeded that does not cause an RO system shut down. -
Page 16: Controller Operation
CONTROLLER OPERATION General Operation The unit has 2 modes of operation, a standby mode and an operating mode that are controlled by the POWER key. In the standby mode, the unit is effectively off. All outputs are turned off and the display shows STANDBY. - Page 17 The current operating hours are shown on the bottom line. Temperature The current water temperature is shown on the bottom line to the right of operating hours. When the unit is in STANDBY due to a shut down condition, the reading is replaced with ‘---‘. Warning Messages Warning messages are also shown on the second line.
- Page 18 FAULT, the alarm lamp will flash and the audible alarm will sound. The pressure fault can be cleared by pressing the Alarm Silence/Reset key twice. Auto Reset If a pressure fault shut down occurs and the Auto Reset Setpoint is programmed to 0, the unit will remain shut down until manually reset.
-
Page 19: Controller Adjustments
It may be necessary to periodically calibrate the Conductivity. If the controller should require calibration, follow the instructions below. Please contact AmeriWater at 800/535-5585 or 937/461-1988 if you have any questions regarding the procedure. - Page 20 FIGURE 5.2...
- Page 21 FIGURE 5.3...
-
Page 22: Standard Setpoints
STANDARD SETPOINTS FACTORY SETPOINT DESCRIPTION RANGE SETTING SHIPPED TDS/Cond Limit When this value is met or exceeded, 0-999 Based on the alarm lamp will light and high µS or PPM* water TDS/Cond will show on the display. analysis. To disable, set to 0. TDS/Cond Delay When the limit Setpoint is exceeded, 0-999... - Page 23 FACTORY SETPOINT DESCRIPTION RANGE SETTING SHIPPED Flush Interval The interval between flush cycles. 0-99 Only valid with operation hour, minutes elapsed time or off flush types. Flush Mode Selects if the inlet and RO pump relays operate during flush. Maximum Hours If the current operating hours exceed 0-65000 this limit, the operating hours warning...
- Page 24 FACTORY SETPOINT DESCRIPTION RANGE SETTING SHIPPED C2 Limit When this valve is met or exceeded, the alarm lamp will light and high TDS/Cond will show on the display. To disable,set to 0. %Rej The 2 TDS/Conductivity is used 0-1 to monitor feed water,programming this setpoint to 1 allows the % rejection to be displayed.
-
Page 25: To Display Or Change Setpoints
TO DISPLAY OR CHANGE SETPOINTS NOTE: Please contact your AmeriWater representative prior to changing set points. 1. Refer to Figure 5.1 for the location of the keys used to display or change the Setpoints and Figure 5.2 for the location of the write protect jumper, J3. For the unit to be able to accept a change in a Setpoint, the shorting jumper must be in the WRITE PROTECT OFF position (center and left pins). -
Page 26: Section 6, Maintenance
MAINTAINING THE SYSTEM A Startup Log for the RO+ system has been provided by AmeriWater in Section 4.4. This must be filled out completely each time the system is used. The hardness of the inlet water should be checked daily. If this is above 0.5 grains, the membrane will foul. -
Page 27: Hro Filter Exchange
An alternative to changing the membranes when their performance degrades would be to clean them using AmeriWater’s optional clean-in-place (CIP) system. Doing so will extend the life of the membranes and reduce the frequency of membrane exchanges. -
Page 28: Hro Membrane Exchange
HRO MEMBRANE EXCHANGE Prepare the system as per the instructions in section 6.2. Loosen the Victaulic fittings on the inlet portion of the housing. This will allow the water to drain. Loosen the union for the product water. Remove the clamps that hold this membrane to the skid. Pull the quick release spring on the cap to allow removal of the end caps. -
Page 29: Section 7, Troubleshooting And Repair
SECTION 7, TROUBLESHOOTING AND REPAIR TROUBLESHOOTING CHART WARNING: Only those persons who have read the complete operations manual or who have received authorization from the medical facility director should attempt to troubleshoot and/or repair the RO+ system. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION RO+ will not start RO+ not plugged in... - Page 30 PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Poor quality product water High Chlorine levels Replace the Carbon Filters. RO+ not rinsed thoroughly Rinse membrane (see Section 4.2). Fouled membrane a. Clean or replace membranes (Section 6). Conductivity cell out of Verify the conductivity cell calibration accuracy with a known good meter.
-
Page 31: Controller Troubleshooting Chart
When disconnecting or connecting any board or accessory, be sure power is unplugged. Before contacting AmeriWater for technical help, verify the programming of all Setpoints, Check the display and the status of all lights and indicators. The more information available when you contact us, the easier it will be to determine the source of the problem. - Page 32 PROBLEM INVESTIGATION CORRECTIVE ACTION RO Pump Will Not Operate Is the system in standby? (Cont.) If no, are any shut down conditions active? If no, is the RO LED, DS6 lit? If no, replace the board. If yes, with a voltmeter, verify If no, replace the board.
-
Page 33: Conductivity Cell Replacement
CONDUCTIVITY CELL REPLACEMENT Prepare the RO per section 6.2. Open the RO controller by loosening the screws on the face of the controller. Loosen the screws on the terminal strip for the appropriate conductivity cell (the inlet goes to the expander board while the product goes to the main board. See Figure 5.2) Disconnect the conductivity sensor wiring and remove from the controller. -
Page 34: Controller Replacement
Route wiring from valve into the controller. Secure the wires to their respective terminals. Return the RO to service. Check for leaks around the solenoid valve that was replaced. CONTROLLER REPLACEMENT Prepare the RO per section 6.2. Note the position of all of the wiring leading into the control box. Remove the wires from their respective terminals. -
Page 35: Pump Replacement
PUMP REPLACEMENT Prepare the RO per section 6.2. Open the controller and trace the existing pump power cord. Note the position of the power cord in the terminals on the motor contactor. Remove the existing pump power connections from the motor contactor. Loosen the strain relief to allow the cord to be pulled free. -
Page 36: Section 8, Warranty
SECTION 8, WARRANTY The buyer has a one year warranty on all equipment and parts, excluding non-durable components (e.g., RO membrane, PT401 solution, and micron prefilter); provided that the system is not subject to abuse, misuse, alteration, neglect, freezing, accident or negligence; and provided further that the system is not damaged as the result of any unusual force of nature such as, but not limited to, flood, hurricane, tornado lightning, or earthquake. -
Page 37: Section 9, Replacement Parts
SECTION 9, REPLACEMENT PARTS ROUTINE REPLACEMENT ITEMS (NON-DURABLE COMPONENTS) PART # DESCRIPTION R22-8042 HRO Replacement Membrane 97RC22101 WaterCheck RC test strips for Measuring Residual Chlorine 97WS20301 WaterSoft Hardness test strips for measuring Hardness. *Call AmeriWater or your AmeriWater distributor for pricing. -
Page 38: Spare Parts List
SPARE PARTS LIST...
