Summary of Contents for AmeriWater SILEX 00M20821

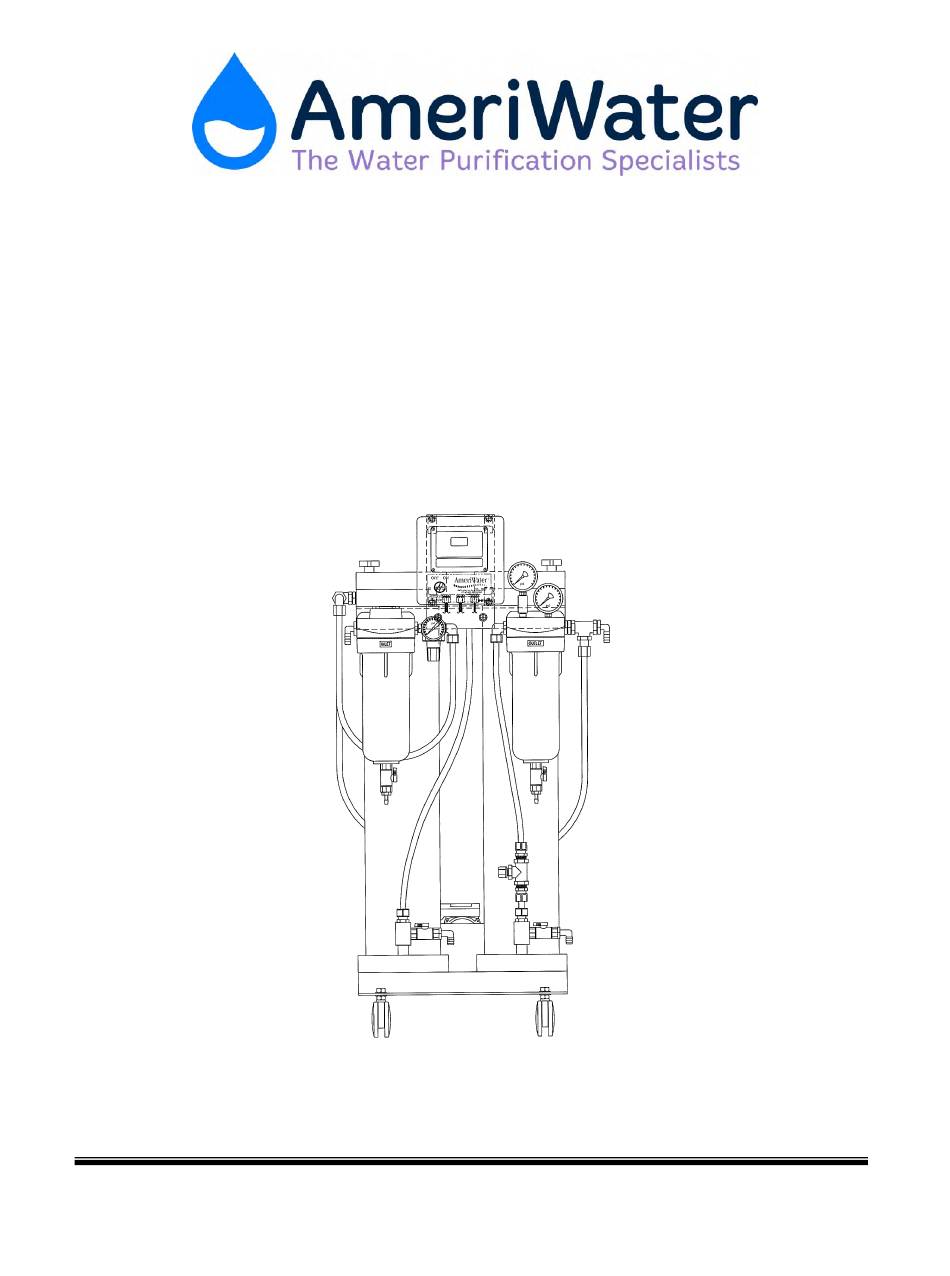

- Page 1 SILEX OPERATION & MAINTENANCE MANUAL MODEL:00M20821 Ultra Pure Deionizer Manufactured With Pride In The USA www.ameriwater.com • 800-535-5585 AmeriWater • 3345 Stop 8 Rd. • Dayton, OH 45414 2-21-11 Part Number : 98-0097 Revision: D...
-
Page 2: Table Of Contents
TABLE OF CONTENTS YOUR SILEX SYSTEM…………………………………………………..1 About the 00M20821 Model………………………………………….1 How does the Silex Deionizer work?………………………………1 How does the regeneration work?…………………………………1 About the resin pack………………………………………………….1 Complete satisfaction is guaranteed………………………………1 SILEX FEATURES………………………………………………………..2 INSTALLATION STEPS ………………………………………………3-5 RECIRCULATION PUMP & RESISTIVITY CONTROLLER…………6 REMINDER FOR ADJUSTING THE SET-POINT………..…………...6 SETTING SET-POINTS ON RESISTIVITY CONTROLLER.…………6 ADJUSTING RELAY RESISTIVITY TIME DELAY……………...…….7 USING THE RESISTIVITY RELAY……………………………………..8... -
Page 3: Your Silex System
The AmeriWater regeneration center maintains the resin used in the Silex Deionizer. When resin packs are exhausted, replace the packs in the Silex system with “stand-by” resin packs and return the exhausted pack to AmeriWater for regeneration. The resin will be regenerated and returned the next business day after receipt. -
Page 4: Silex Features
SILEX FEATURES... -
Page 5: Installation Steps
INSTALLATION IN 10 EASY STEPS Locate the Silex system on a firm, level foundation. It is recommended, but not required, to locate the system near a standard floor drain or sump and a 115 Volt receptacle. It is recommended to install shut-off valves on the inlet and outlet sides of each unit to facilitate changing of resin packs. - Page 6 NOTE: 16 feet of hose has been provided with the Silex system. Cut the hose to the desired lengths for the inlet hose and outlet hose and install the provided fittings as needed. Connect the outlet hose to the hose barb fitting on the right side of the system (while facing the label).
- Page 7 c. Stretch the resin pack over your arm to elongate the pack, and feed it into the Silex column allowing the pack to slide out of the plastic sleeve. d. Replace the cover plate and tighten the black knobs. Be sure to tighten the knobs evenly by screwing in the knobs in opposite corners simultaneously.
-
Page 8: Recirculation Pump & Resistivity Controller
RECIRCULATION PUMP & RESISTIVITY CONTROLLER The ON/OFF switch turns on the recirculation pump which freshens the system. Leave the pump off when not in use. Do not use the pump to vent the system. Never operate the pump dry. The resistivity controller monitors and measures the product quality between 0.015 and 18.17 Meg-ohms/cm. -
Page 9: Adjusting Relay Resistivity Time Delay
Adjusting Relay Resistivity Time Delay The delay on the relay timer can be set from 0-120 seconds to allow for rinse up of the equipment. To modify the settings, take the following steps. Press and hold DELAY then press the ADJUST button. Release both buttons. -
Page 10: Using The Resistivity Relay
Using the Resistivity Relay The resistivity controller has an on-board single pole, double throw relay that is rated at 1 amp @ 28VDC and 0.5 amp at 120VAC. This has both normally open and normally closed contacts, allowing for control both above and below the set- points. - Page 11 Insert the pins of the cal module (see section 9.0 for part #) in the same position as the cell wires with the label facing up. Secure the screws to the cal module. Plug in the device and turn the unit on, allowing the resistivity display to stabilize.
-
Page 12: Resin Pack & Filter Exchange
RESIN PACK & FILTER EXCHANGE Resin Pack Exchange Turn off the recirc pump and water supply to the Silex system. Open the air vents located in the center of the cover plates. Place a container under the drain valves located on the bottom plates of the system. -
Page 13: Filter Cartridge Replacement
Filter Cartridge Replacement Carbon prefilter cartridges should be replaced each time the resin pack(s) are exchanged. The final filter cartridge should be exchanged when the differential pressure of the gauges is greater than 10 psi (Pounds per Square Inch) or each time the resin packs are exchanged. -
Page 14: Resin Pack Regeneration

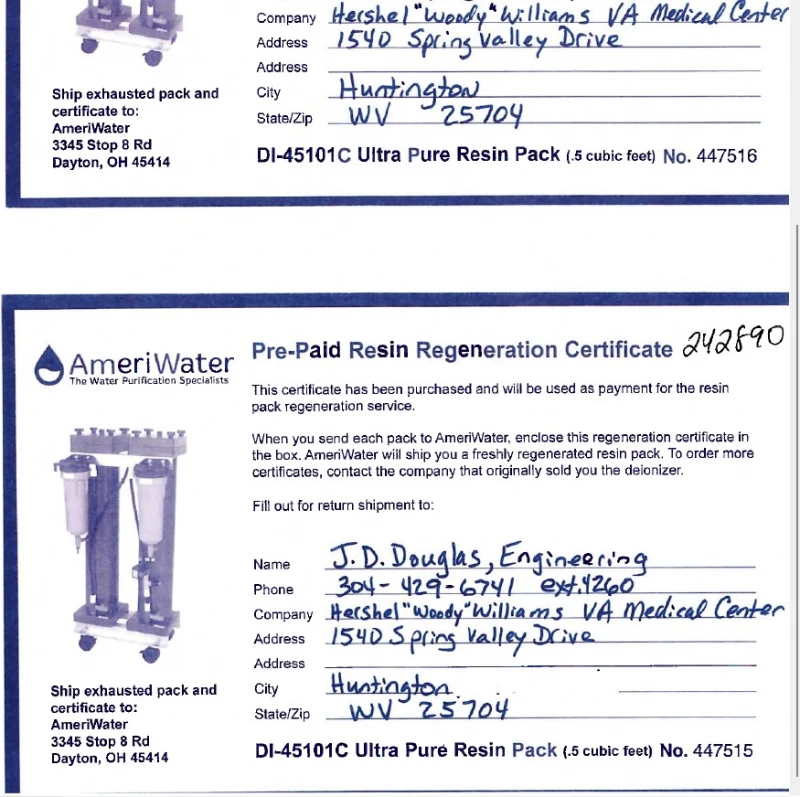

Fill out a regeneration certificate by printing your name, phone number, company and address. When you send each pack to AmeriWater, enclose the regeneration certificate in the box. AmeriWater will ship you a freshly regenerated resin pack. To order more certificates, contact the company that originally sold you the deionizer. -
Page 15: Servicing Your Silex System
Silex columns. Reference the resin pack and filter exchange instructions on page 10 & 11. Apart from regular resin pack exchange and periodic disinfection, the Silex system requires no maintenance. In the event that the system is damaged, all parts can be ordered from AmeriWater by calling 1-800-535-5585. -
Page 16: Standard Replacement Parts
Standard Replacement Parts Part # Name 0119-0006 Hose Kit 0119-0007 Drain Port Assembly 0119-0037 Recirculation Pump Kit 0119-0040 Resistivity Meter Panel Kit 041001 3/8” MXF Sample Port (Drain Port) 14570111 Washer 19300001-00 Silex O-Ring 19530901 Air Vent 19530908 Knobs 20-3021 Post Filter Bacteria Removal (.2 micron, 2.5”... -
Page 17: Warranty Policy
Warranty Policy The buyer has a lifetime warranty on the PVC housing and a one year warranty on all other equipment and parts, excluding non-durable components (e.g., resin packs, carbon packs, filter cartridges, and water quality monitors); provided that the system is not subject to abuse, misuse, alteration, neglect, freezing, accident or negligence;... -
Page 18: Addendum A - Recirc Pump Manual
Addendum A... - Page 19 AWI # 80-0104 GRUNDFOS CIRCULATOR PUMP MANUAL MAINTENANCE-FREE CIRCULATOR Manufactured With Pride In The USA www.ameriwater.com • 800-535-5585 AmeriWater • 3345 Stop 8 Rd • Dayton, OH 45414...
- Page 21 TABLE OF CONTENTS Shipment Inspection…………………………………….…………..20 Pre-Installation Checklist……………………………….…………..20 Installation………………………………………………….…...20 & 21 Electrical…………………………………………………….…...21 & 22 Start-Up….………………………………………………….…………..22 Operation….……………………………………………….…………...22 Failure to Operate….…………………………………….……………22...
- Page 25 (PVC). The AmeriWater system you have purchased may contain PVC or stainless steel parts. While warnings are only required in the State of California, AmeriWater has initiated the use of Prop 65 labeling for all products to ensure compliance with California regulations. Please note that the above warning does not necessarily mean that the product that you have purchased is unsafe.
