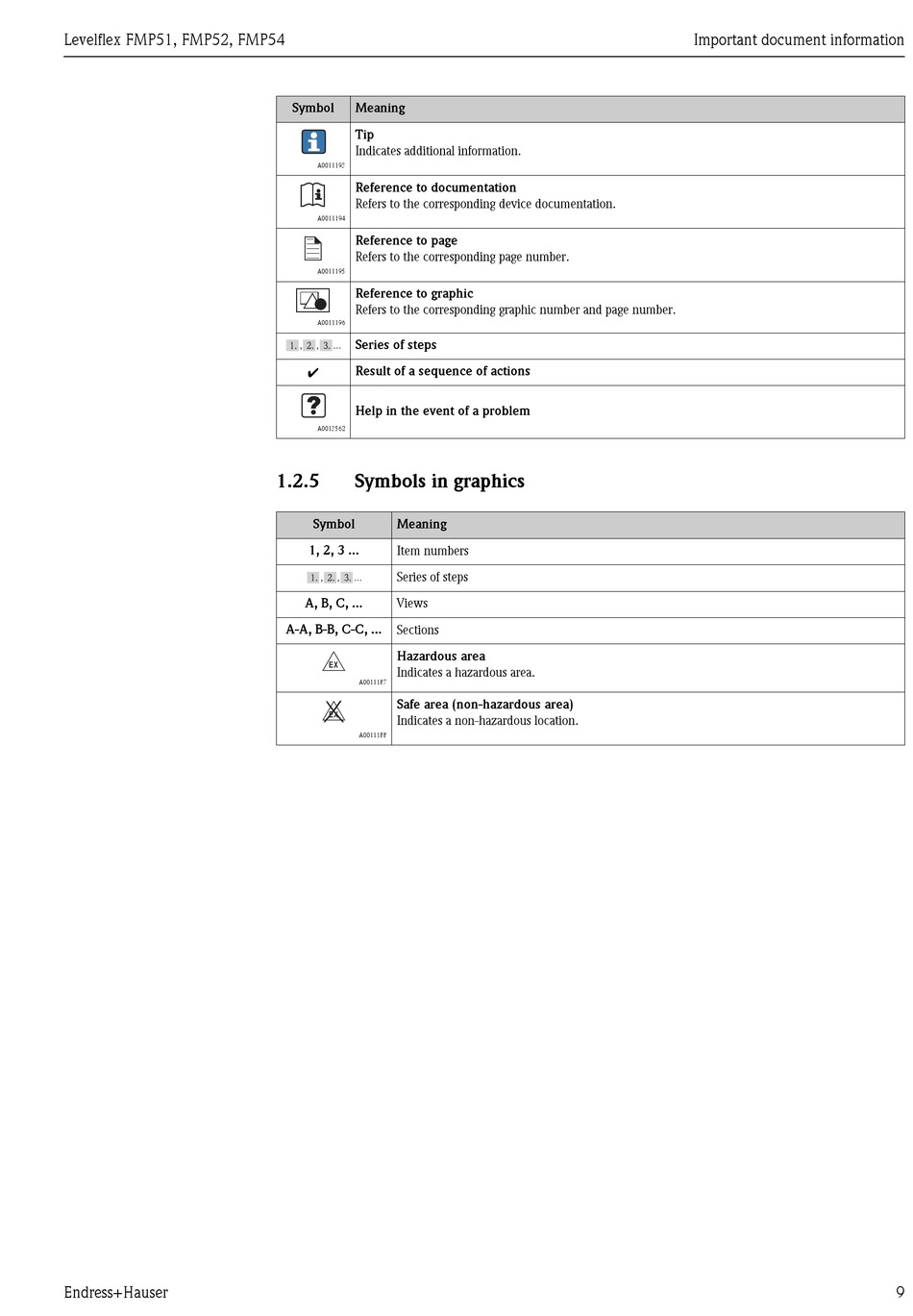

Symbols In Graphics - Endress+Hauser Levelflex FMP51 Operating Instructions Manual

Levelflex FMP51, FMP52, FMP54
Endress+Hauser
Symbol Meaning
Tip
Indicates additional information.
A0011193
Reference to documentation
Refers to the corresponding device documentation.
A0011194
Reference to page
Refers to the corresponding page number.
A0011195
Reference to graphic
Refers to the corresponding graphic number and page number.
A0011196
Series of steps
, , ...
Result of a sequence of actions
Ã
Help in the event of a problem
A0013562
1.2.5

Symbols in graphics

Symbol Meaning
1, 2, 3 ... Item numbers
Series of steps
, , ...
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
Hazardous area
-
Indicates a hazardous area.
A0011187
Safe area (non-hazardous area)
.
Indicates a non-hazardous location.
A0011188
Important document information
9
