PC IEEE Reference
__________________________________________ _

Installing The PC IEEE Board In The Computer.

_____ _ NOTE: Always turn the computer OFF before installing or
removing any interface board from the computer.!!!
After having made sure that the i/o address and the IRQ
and DMA jumpers are correctly set now is the time to insert the
PC IEEE board into the i/o connector slots in the computer.
STEP 1 Before the PC IEEE board can be installed the
power to the PC MUST be switched OFF!
______________________________________ _

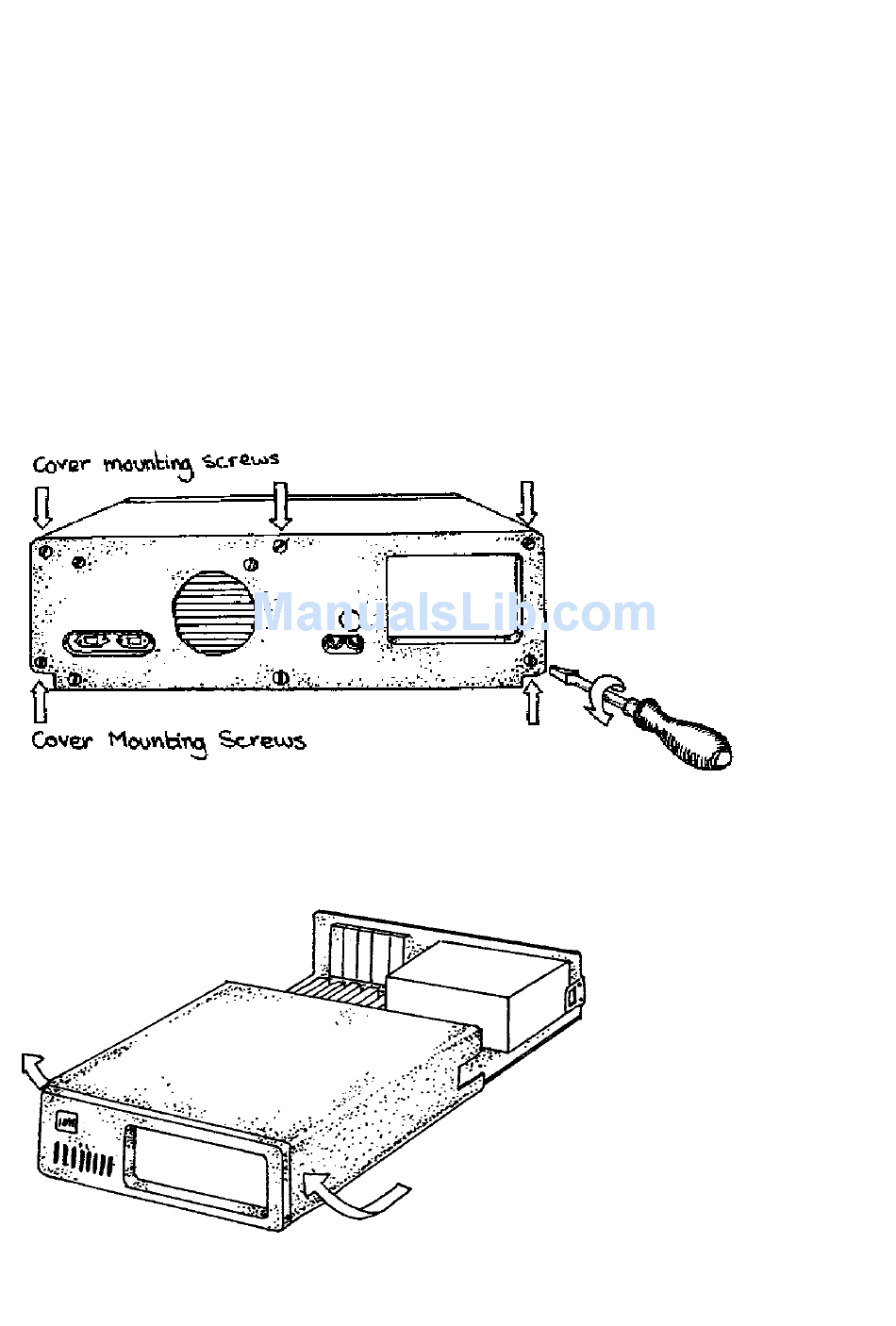

Figure 2-8. Remove Cover Mounting Screws.

________________________________

Figure 2-9. Removing The PC Cover.

STEP 3 Next, remove the PC's cover by sliding it forward and
up. It usually helps to disconnect the keyboard from the PC
since it tends to get in the way when the case is removed.
Page 20
Installation Guide.
STEP 2
using a
driver, remove the
cover mounting
screws on the back
panel of the PC
system unit.
Chapter 2
Then
screw
