Quick-Start - Cobra Systems VNM 4 Pro SignMaker User Manual

VnM ® 4 SignMaker Quickstart
PRINTER MUST BE TURNED OFF!

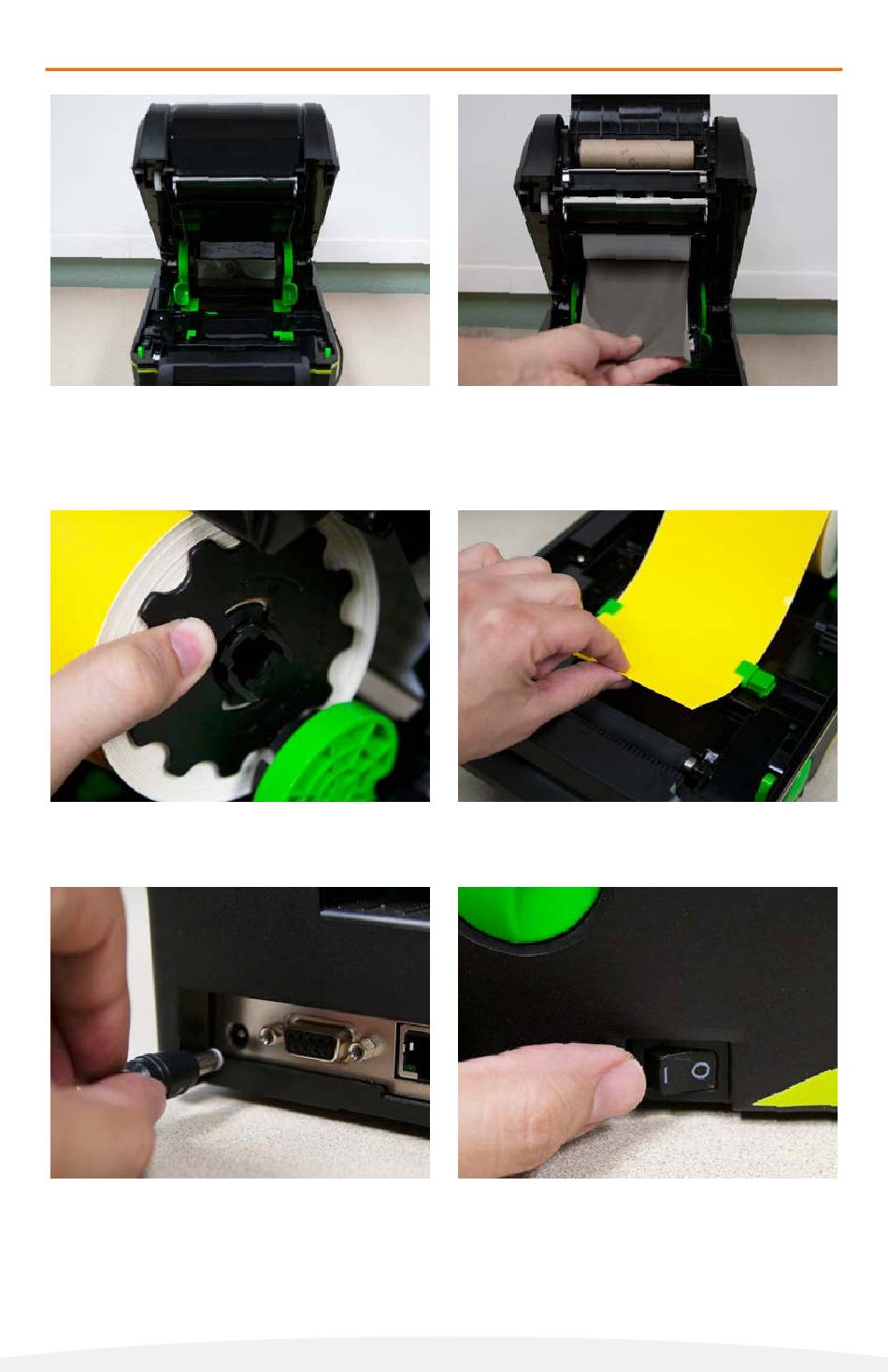

1. Open printer lid by rolling down the green tabs on
each side located toward the front of the printer.
3. Slide new media into the printer's spindle mount.
5. With the printer powered off, plug the keyboard and
power cord into the rear of the printer.
NOTE: Always have the VnM printer cover closed when powering on.
3
Copyright © 2020 Cobra Systems, Inc. All rights reserved
2. Slide ink roll onto spindle and set in rear hub. Insert
second spindle into empty cardboard core and set in
front hub. Pass ink ribbon under the ink roll carriage
and print head. Attach ink ribbon to the empty core
and take up any slack before closing cover.
4. Feed media, face up through the cutter slot. Adjust
the green media guides to fit the width of the vinyl,
centered in the printer.
6. Plug the power cord into a properly grounded AC
outlet.
