ALIBI ALI-TS1132VR Installation And User Manual

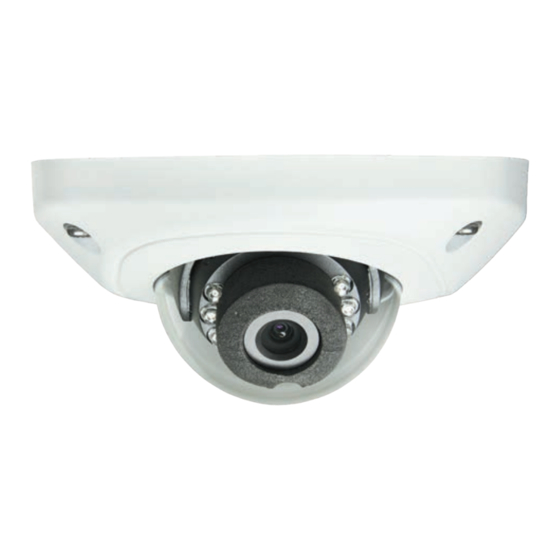

ALI-TS1132VR 2MP HD-TVI Low Light
Infrared Mini Dome Camera
Installation and User Guide
The ALIBI ALI-TS1132VR dome camera include a high sensitivity CMOS sensor with advanced circuit design
technology. It features HD-TVI encoded 1080p resolution, low noise feature which makes them suitable for
surveillance and image processing systems.
Features
2 Megapixel @ 1080p video
•
0.005 lux color Sony Starlight sensor
•
120dB Wide Dynamic Range
•
2.8mm @ 100° field of view
•
65' Smart IR distance
•
Built-in microphone
•
UTC Up the Coax control
•
Compact size
•
1.83"

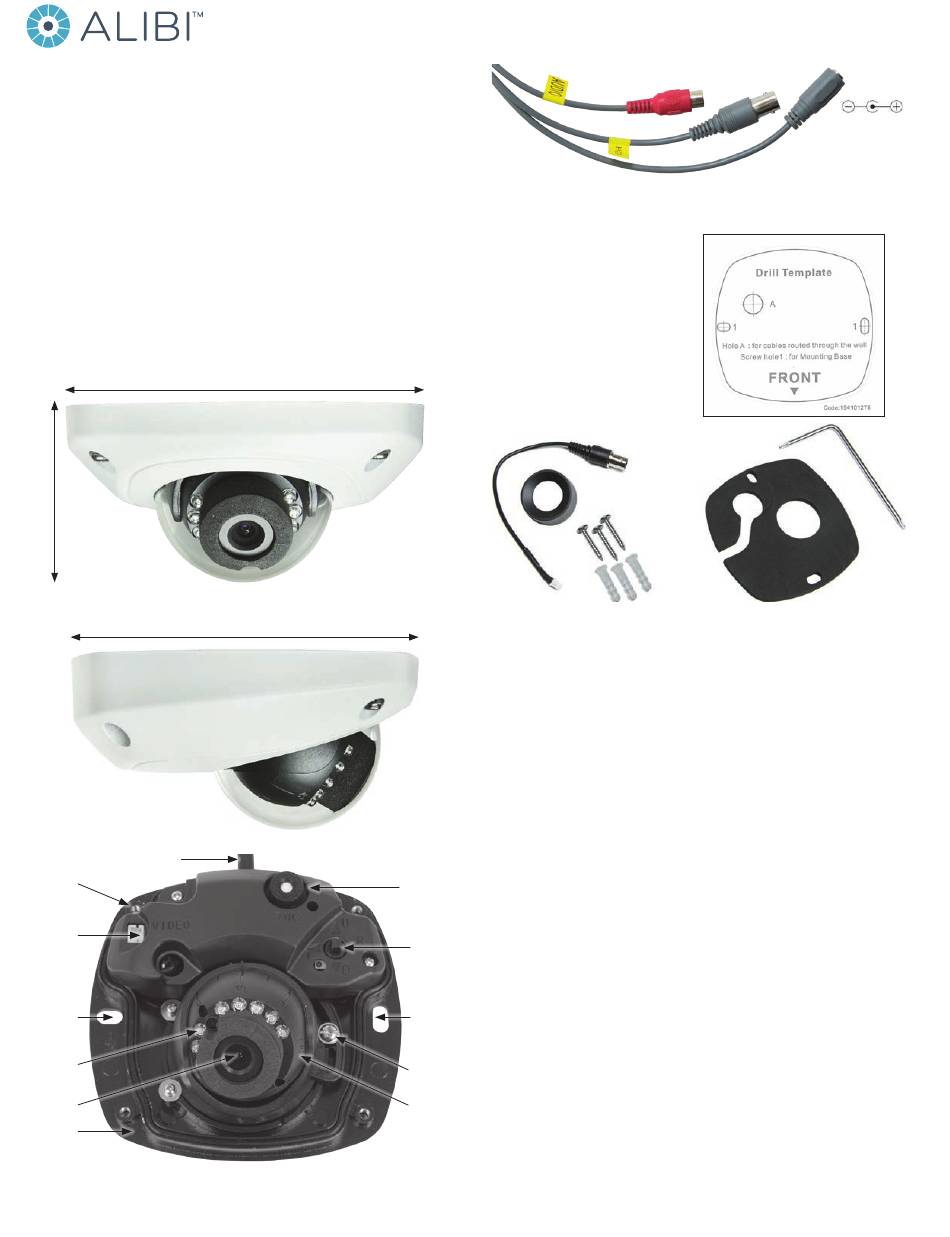

ALI-TS1132VR camera assembly front and side views
Drop cable
Hole for
cover
screw (4)
Jack for
video test
cable
Hole for
mounting
screw
IR array
Lens
Base
assembly
ALI-TS1132VR camera internal components
www.observint.com
1
3.92"
3.82"
Microphone
What's in the box
Camera assembly
•
Drill template
•
Video test cable
•
Adjuster (for camera module)
•
Security L- wrench
•
Mounting hardware (screws and wall inserts)
•
Pad
•
This manual
•
Video test cable
Adjuster

Tools you need

To install the camera, you will need:
12 Vdc power source. See Specifications for voltage and wattage requirements.
•
Tools and additional fasteners (may be required) for mounting the camera
•
HD-TVI compatible video recorder with monitor
•
Video, audio and power extension cables
•
CCTV video setup monitor (optional)
•

Installation

Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
•
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
OSD
joystick
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
•
array shield becomes soiled, clean it only with approved products. See the
Monitor impedance: Set the monitor impedance switch to 75 Ω.
•
Hole for
Power supply: Camera drop cable: The camera drop cable includes three connectors:
•
mounting
Audio RCA connector: Connect the audio drop cable to a RCA extension cable.
—
screw
Video BNC connector: For transmission of the HD-TVI video signal across a coax (75 Ω) BNC
—
Pan
extension cable.
adjust.
Power connector: When applying Vdc power, observe the power polarity. See the picture
lock screw —
above for connector polarity configuration.
Camera
module
1. Using the drill template provided with your camera, mark the location of the two screws that anchor
the base assembly to the mounting surface. If you are routing the drop cable through base, also
mark the position of the hole for the drop cable. (See the template above.)
Audio Out HD-TVI Video
RCA Connector BNC Connector
Camera drop cable connectors
Security L-wrench
Mounting
hardware
Pad
Power
Connector
section.
