ALIBI ALI-TS1015VR Quick Installation Manual

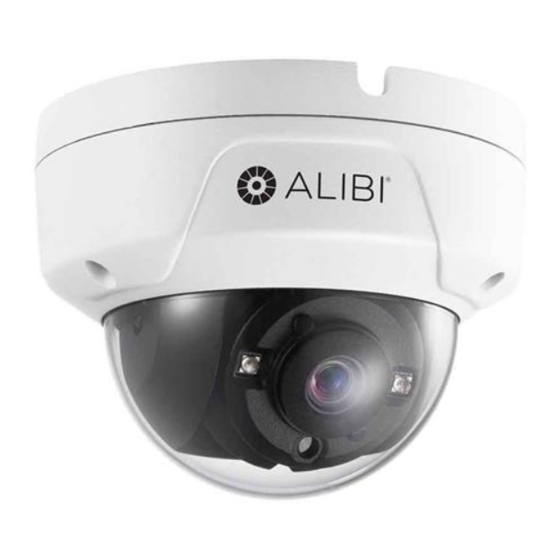

ALI-TS1015VR 5MP HD-TVI
Vandalproof Dome Security Camera

Quick Installation Guide

The ALIBI ALI-TS1015VR dome camera include a new generation sensor with high sensitivity and advanced
circuit design technology. They feature high resolution, low image distortion and low noise features which
makes them suitable for surveillance and image processing systems. Features include:
5 Megapixel high-performance CMOS
•
HD-TVI HD output, up to 5 MP resolution
•
2.8 mm horizontal field of view: 81°
•
True Day/Night, DNR, Smart IR
•
Up-the-coax OSD menu
•
65 ft Full Frame SMART IR
•
IP67 weatherproof, IK10 vandalproof
•
Requires 5 MP HD-TVI compatible recorder (HD-TVI DVR)
•
Flange adaptor for pendant mounting (ALI-AF4) and junction box mounting (ALI-AJ4) are available
•

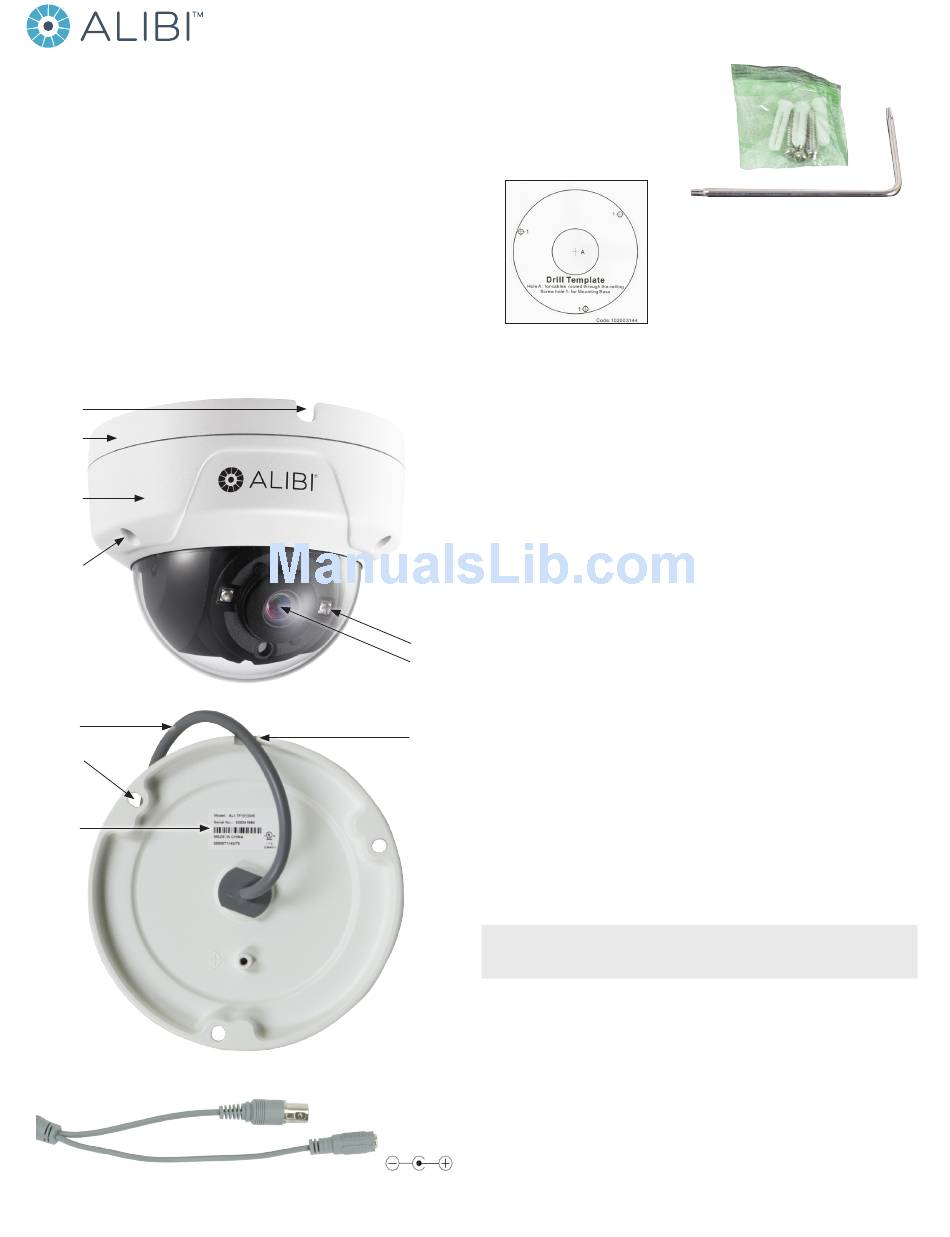

Cable
guide
Mounting
base
Dome
assembly
Dome
assembly
screw (3)
Drop cable
Hole for
mounting
screw (3)
Product
label
Camera mounting surface
Camera drop cable connectors
www.observint.com
1
What's in the box
•
•
•
•
•

Tools you need

To install the camera, you will need:
•
•
•

Installation

Before installation:
•
•
•
•
•
IR LED
Lens
During installation:
•
Cable
•
guide
Step 1.
These cameras can be mounted on a wall or ceiling that has sufficient strength to support it. The video/
power drop cable from the camera can be routed either through mounting surface or through a cable guide
on the edge of the mounting base.
NOTE
1.
2.
3.
HD-TVI video
4.
BNC connector
5.
Power
Connector
Camera assembly
Mounting hardware
Security L-wrench
This instruction guide
Drill template
12 Vdc power source. See Specifications for requirements.
Tools and additional fasteners (may be required) for mounting the camera
Video and power extension cable
Make sure that the device is in good condition and all the assembly parts are included.
IR Reflection Prevention: Avoid mounting the camera near reflective surfaces. The IR light from
the camera can reflect back into the lens. Do not remove the plastic cover until the cover is installation
is complete.
Check the specification of the products for the installation environment.
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
provide the rated voltage and wattage for the camera. See the Specifications section.
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
Video BNC connector: For transmission of the HD-TVI video signal across a coax (75 Ω)
—
extension cable.
Power connector: When applying Vdc power, observe the power polarity. See the drop cable
—
photo above for the connector polarity configuration.
Mounting the camera
This camera can be installed using a pendant mounting bracket with flange adapter or junction
box. Please refer to the instructions provided with those accessories for special considerations when
installing the camera with them.
Using the mounting template to mark the holes for the camera mounting screws.
Drill holes for the mounting screws into the mounting surface. The mounting screws and wall
inserts provided is appropriate for most surfaces. However, depending on the surface material and
strength, more appropriate fasteners may be required.
Drill a 3/4" hole through the mounting surface for the drop cable, if necessary.
If using wall inserts for the mounting screws, install the wall inserts at this time.
Unscrew the three (3) dome assembly screws, and then separate the dome assembly from the
mounting base. The dome is tied to the base with a strap. NOTE: To keep the lens assembly clean,
do not remove the plastic protective packaging applied to the lens at this time.
section.
Cleaning
