ALIBI ALI-TS1012R Quick Installation Manual

ALI-TS1012R HD-TVI 2MP Indoor Dome
Camera Quick Installation Guide
The ALIBI ALI-TS1012R dome camera include a new generation sensor with high sensitivity and advanced
circuit design technology. They feature high resolution, low image distortion and low noise features which
makes them suitable for surveillance and image processing systems.

Features

2 Megapixel high-performance CMOS
•
HD-TVI HD output, up to 2MP resolution
•
2.8 mm lens
•
True Day/Night
•
Smart IR up to 65 ft IR distanc
•
Requires Alibi HD-TVI compatible recorder (HD-TVI DVR)
•

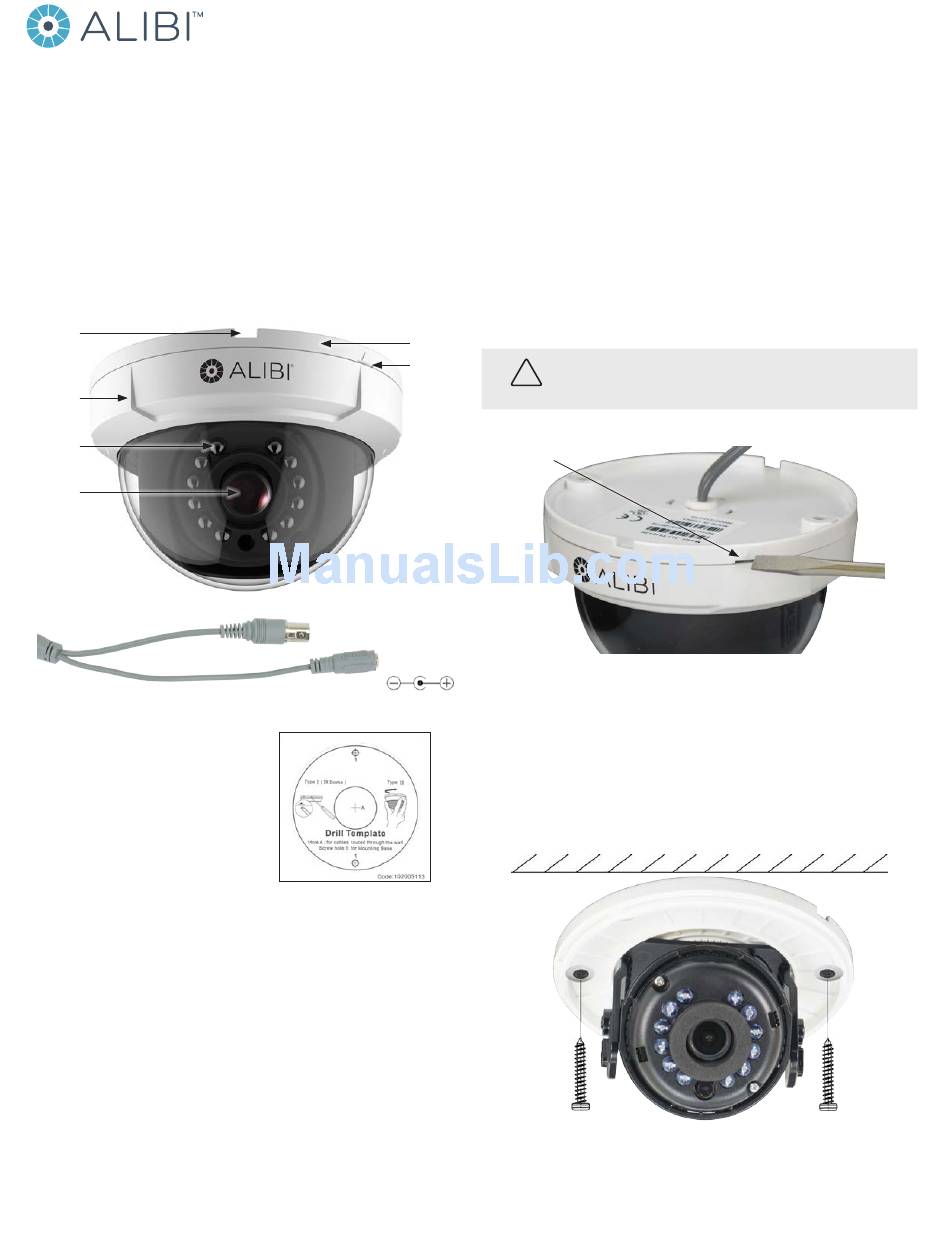

Cable
guide
Dome
assembly
IR LED
array
Lens
Camera drop cable connectors
What's in the box
Camera assembly
•
Mounting hardware
•
This instruction guide
•
Drill template
•

Tools you need

To install the camera, you will need:
12 Vdc power source. See Specifications for powering requirements.
•
Tools and additional fasteners (may be required) for mounting the camera
•
Video and power extension cable
•

Installation

Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
•
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
www.observint.com
1

During installation:

•
•
Step 1.
These cameras can be mounted on a wall or ceiling that has sufficient strength to support it. The video/
power drop cable from the camera can be routed either through mounting surface or through a cable guide
on the edge of the mounting base.
Mounting
base
Pry Slot
CAUTION
1.
HD-TVI video
BNC connector
Power
Connector
2.
3.
4.
5.
6.
7.
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens
becomes soiled or oily, IR can reflect back onto the lens. See the
this document for more information.
Power supply: Camera drop cable: The camera drop cable includes two connectors:
Video BNC connector: For transmission of the HD-TVI video signal across a coax (75 Ω)
—
extension cable.
Power connector: When applying Vdc power, observe the power polarity. See the drop cable
—
photo above for the connector polarity configuration.
Mounting the camera
Use extra care to avoid touching or soiling the clear plastic of the dome. Oils on the surface

can cause IR reflections back onto the camera lens. See the Cleaning Instructions included
at the end of this document.
Use a blade screwdriver to separate the mounting base from the dome assembly.
Pry Slot
Using the drill template or the mounting base, mark the holes for the camera mounting screws.
Drill holes for the screws that anchor the base to the mounting surface. The mounting hardware
provided is appropriate for most surfaces. However, depending on the surface material and strength,
more appropriate fasteners may be required.
Drill a 3/4" hole through the mounting surface for the drop cable, if necessary.
If using wall inserts for the mounting screws, install the wall inserts at this time.
Route the camera drop cable through a cable guide, or through the hole in the mounting surface,
and then secure the mounting base to the surface with two screws. .
Connect the camera drop cable to video and power extension cables.
at the end of
Cleaning Instructions
ALI-TS1012 R_CQ
161004
