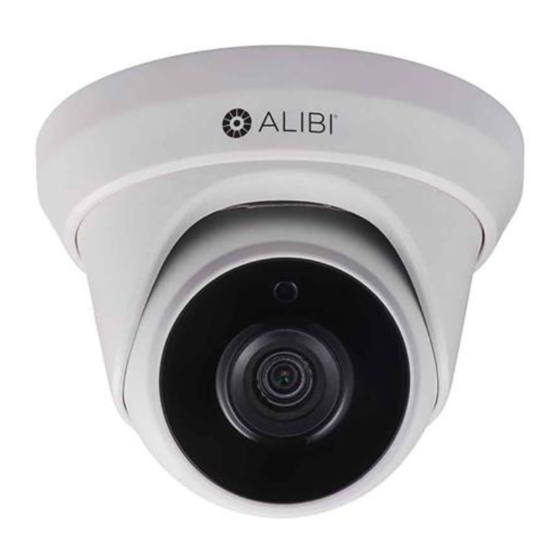

ALIBI ALI-TS1035R Quick Installation Manual

ALI-TS1035R 5MP HD-TVI
Outdoor Turret Camera

Quick Installation Guide

The ALIBI ALI-TS1035R turret camera include a new generation sensor with high sensitivity and advanced
circuit design technology. They feature high resolution, low image distortion and low noise features which
makes them suitable for surveillance and image processing systems.
Features
5 Megapixel high-performance CMOS, HD-TVI output
•
2.8 mm lens, 91˚ field of view
•
True Day/Night
•
Up-the-coax OSD menu, DNR, Smart IR
•
EXIR technology, up to 135 ft IR distance
•
Compatible with 5 MP HD-TVI compatible recorders (HD-TVI DVR)
•
IP67 weatherproof
•
Adaptors are available for pendant mounting (ALI-AF2) and junction box mounting (ALI-AJ7)
•

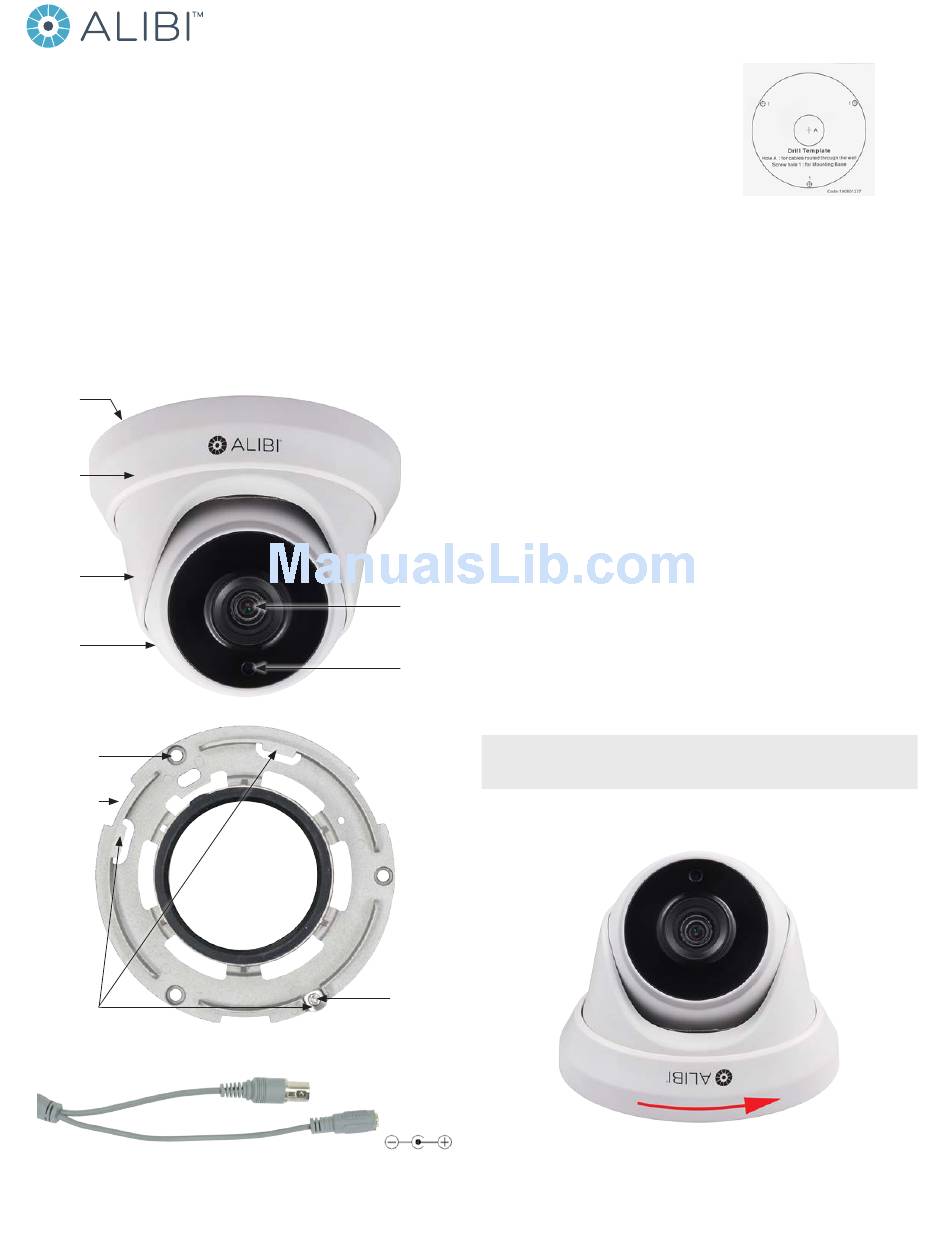

Mounting
plate
under
bezel
Bezel
Housing
Camera
module
Hole for
mounting
screw (3)
Slot for
bezel tab
(3)
Housing
retention
tab (3)
Mounting plate features (camera mounting surface)
Camera drop cable connectors
www.observint.com
1
What's in the box
•
•
•
•

Tools you need

To install the camera, you will need:
•
•
•

Installation

Before installation:
•
•
•
•
During installation:
•
•
Lens
Step 1.
IR LED These cameras can be mounted on a wall or ceiling that has sufficient strength to support it. The video/
power drop cable from the camera can be routed either through mounting surface or through a cable guide
on the edge of the mounting base.
1.
Tab hold
down
screw
Removable tab
HD-TVI video
BNC connector
Power
Connector
2.
Camera assembly
Mounting hardware
This instruction guide
Drill template
12 Vdc power source. See Specifications for wattage requirement.
Tools and additional fasteners (may be required) for mounting the camera
Video and power extension cable
Make sure that the device is in good condition and all the assembly parts are included.
Check the specification of the products for the installation environment.
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
provide the rated voltage and wattage for the camera. See the Specifications section.
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
Video BNC connector: For transmission of the HD-TVI video signal across a coax (75 Ω)
—
extension cable.
Power connector: When applying Vdc power, observe the power polarity. See the drop cable
—
photo above for the connector polarity configuration.
Mounting the camera
This camera can be installed using a pendant mounting bracket or junction box. Please refer to the
NOTE
instructions provided with those accessories for special considerations when installing the camera
with them.
Turn the bezel about 15˚ in the direction shown by the arrow below to loosen free the bezel from
the mounting base, and then lift it off of the camera assembly.
Loosen the removable retention tab hold down screw, and then rotate the tab about 180˚ to release
the housing from the mounting plate. See below.
section.
Cleaning
