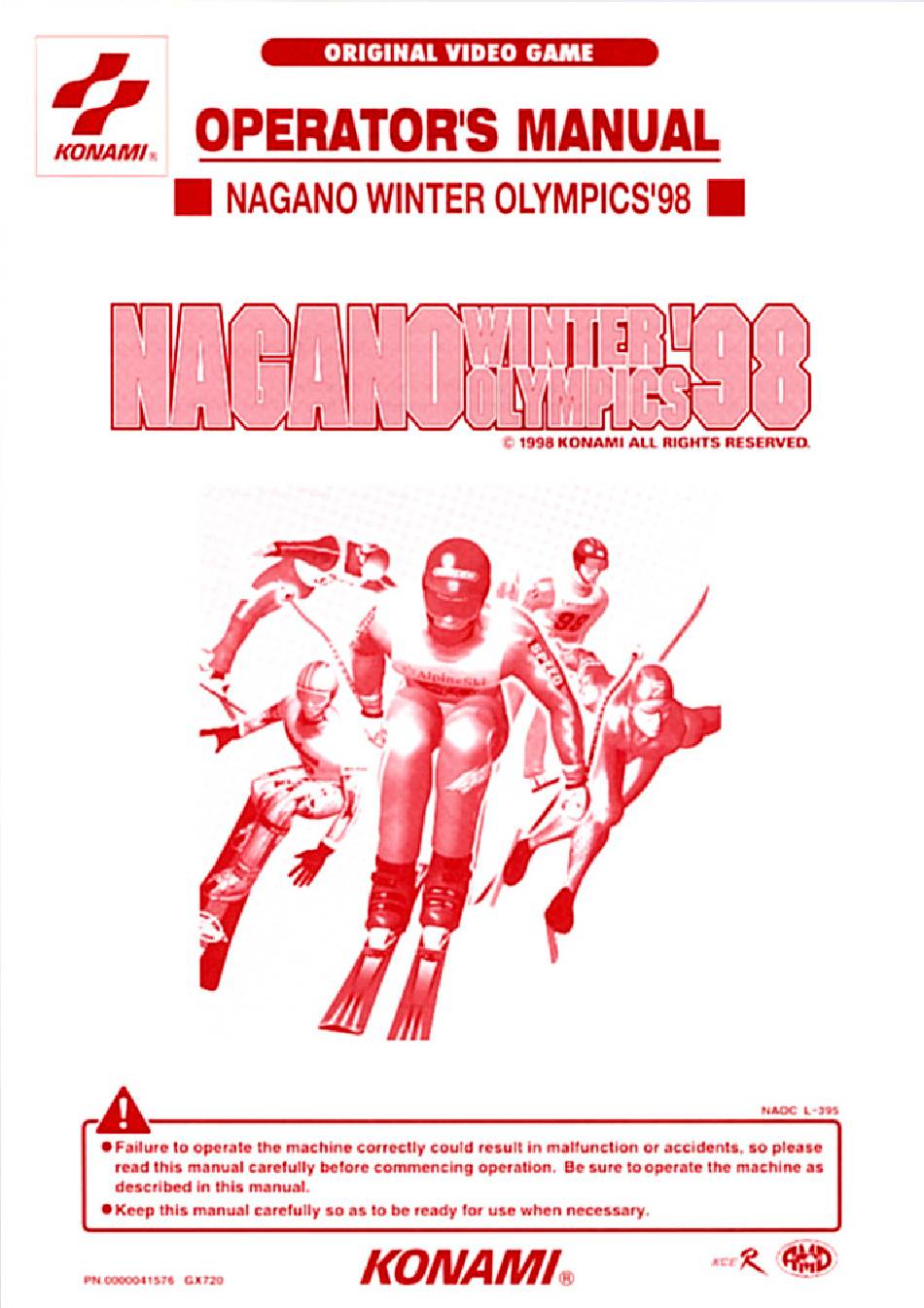

Summary of Contents for Konami Nagano Winter Olympics '98
Page 2
About this product Thank you for purchasing this Konami product. This manual explains how to operate your game machine correctly and safely. •Failure to operate the machine correctly could result in malfunction or accidents, so please read this manual carefully before commencing operation. Be sure to operate the machine as described in this manual.
Contents Precautions for use ……………………………………………………………………………………… 2 …………………………………………………………………………………………………………………… 6 1 Names of parts and specifications 1-1 Names of parts ………………………………………………………………………………………… 9 1-2 Specifications …………………………………………………………………………………………… 9 2 Setting the kit in the machine 2-1 Setup procedure ……………………………………………………………………………………… 10 2-2 Connecting the connectors ………………………………………………………………………… 10 PCB settings 3-1 PCB start-up check (self test) ………………………………………………………………………...
Precautions for use In this manual, the precautions to be followed without fail in order to prevent damage to persons to install, use or maintain “NAGANO WINTER OLYMPICS ’98” or other persons or to properties are shown as follows. Be sure to read the following •The following suggestions show the degree of danger and damage caused when the product is used improperly with the suggestions disregarded.
Page 5
Precautions for use Setting Up WARNING •Handle this kit with due care when installing it. ·Wrong handling may cause kit trouble or accident. ·P arts inside the kit get hot structurally. Do not touch them until completely cooled down. ·T his kit has some projections inside. Do not put your hand in the kit because otherwise you may get injured.
Page 6
Precautions for use Operation WARNING •If by any chance smoke, unusual smell or noise comes out of the kit, immediately turn OFF the machine's power switch and unplug the power cord. プ グ Do not operate the kit. ·Using the kit in abnormal conditions could result in fire or accidents. In case of abnormality 1.
•No sound volume control is provided on this kit. Adjust the sound volume, referring to "SOUND OPTIONS" on page 14. The speaker terminals of cabinets by manufacturers other than KONAMI may be in compatible in the specifications. •Use due care in transporting and handling this kit, which is a precision device. For...
2 Setting the KIT in the machine 2-1 Setup procedure Place the kit in any of the following directions in the machine. Use screws to secure the kit in position. (Prepare the screws yourself because the kit does not come with those screws.) JAMMA connector JAMMA connector JAMMA connector...
3 PCB settings 3-1 PCB start-up check (self test) When this kit has been set up, turn ON the machine’s power switch. The game Printed Circuit Boards (PCB) will be automatically checked for its performance. The test results will be displayed on the screen.
3 PCB settings 3-2 Adjusting the game environment (manual test) Manually check and change the settings for the screen displays and game contents. Starting the manual test mode 1 Turn ON the machine’s power switch. 2 While the demo game is on, press the machine's test switch. (If the power switch is turned on with the test switch down, the current settings will be erased and replaced by the factory settings.) •The manual test mode is called and the main menu appears on the screen.
3 PCB settings 3-3 Mode descriptions The original factory settings are displayed in green; the changed settings are displayed in red. Move the 1P joystick up and down to select an item to be modified, and move it right and left to change its setting.
Page 16
3 PCB settings SOUND OPTIONS Adjusting the sound volume This screen is used to make sound settings and to check them. Select an item by moving up and down the 1P joy stick and change its setting by moving it right and left.
Page 17
3 PCB settings COIN OPTIONS Setting the coin options This screen is used to make coin settings and to check them. Select an item by moving up and down the 1P joy stick and change its setting by moving it right and left.
4 How to Play The "NAGANO WINTER OLYMPICS '98" game challenges you to go through 13 different winter sports events. Go for the gold medals in all the events. Control panel Start buttons 8-way joystick 8-way joystick Button A Button B...
Page 19
4 How to Play Rules and how to play •Speed skating 500 m Pl ayer s sk ate one lap ar ound the 40 0m trac k pl us 100m to dec ide ranking. (A player who makes a false start twice will be disqualified.) Press the button repetitively to accelerate.
Page 20
4 How to Play •Giant slalom This is a race against time down an about 1487 m course. If you fail to pass through the gates along the course, the time penalty is added for each failure. (You can race this course just once.) ACCELERARE Press to edge-ln for a sharp turn.
