Assembly Instructions Bun
Made In China
!
WARNING: Read all instructions before assembling
this product. KEEP INSTRUCTIONS FOR FUTURE USE.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact us first. You
can also order parts writing to the address above. Include the product model number,
color, and a brief description of the part. Call 1-800-762-1751
CARE AND CLEANING
DO NOT use abrasive chemicals for cleaning. Dust often using a clean, soft dry cloth add
period & Dab spills quickly with a soft cloth. Vacuum to remove dust.
If the Bunk Bed is to be stored, store in a cool dry place andcarefully package all original
hardware to protect from loss.
Carver Bunk Bed With Ladder– Assembly Instruction
Page 1 of 9
Page 1 of 9 9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

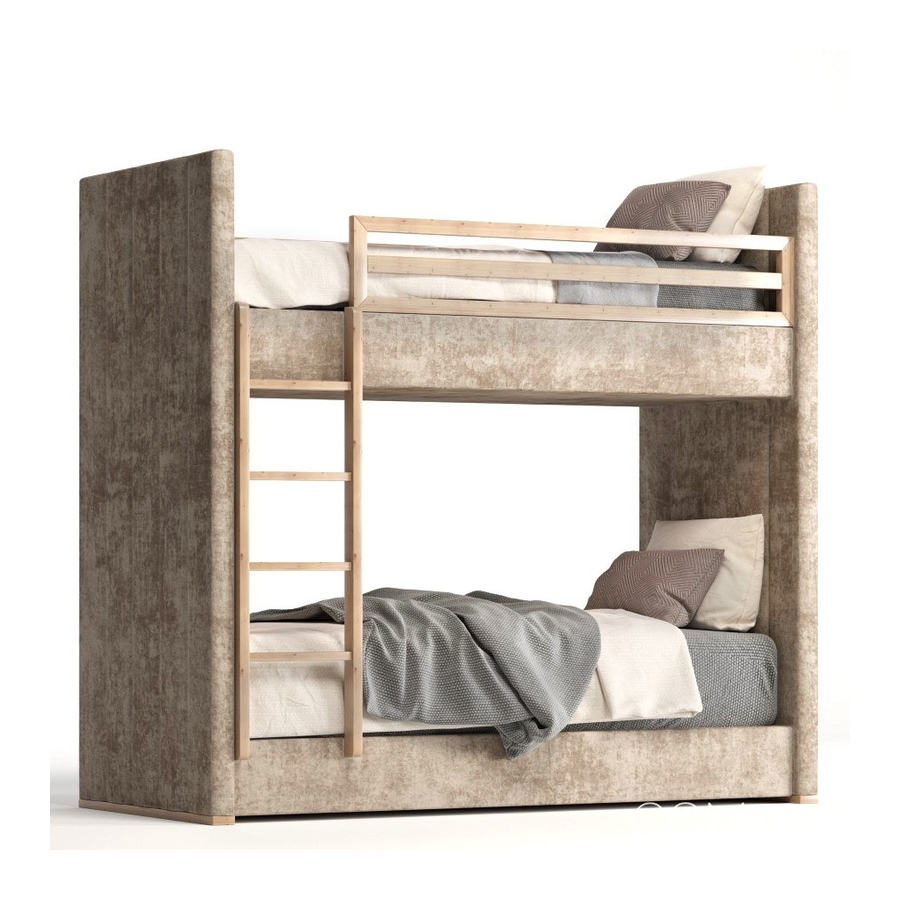

Related Manuals for RH Baby&child Carver
Summary of Contents for RH Baby&child Carver
- Page 1 Carver Bunk Bed With Ladder– Assembly Instruction Assembly Instructions Bun Made In China WARNING: Read all instructions before assembling this product. KEEP INSTRUCTIONS FOR FUTURE USE. CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact us first. You can also order parts writing to the address above.
- Page 2 Carver Bunk Bed With Ladder– Assembly Instruction IMPORTANT SAFETY INFORMATION FOR BUNK BED Follow the information on the WARNINGS appearing on the upper bunk end structure and on the carton. Do not remove warning label from bed Always use the specified size mattress, to help prevent the likelihood of entrapment or falls Surface of mattress must be at least 5 inches below the upper edge of guardrails on top bunk Do not allow children under 6 years of age to use upper bunk.
-
Page 3: Parts List
Carver Bunk Bed With Ladder– Assembly Instruction PARTS LIST (A) Left Bunk End-1 pc (B) Right Bunk End-1 pc (C) Side Rail-4 pcs (D) Back Guard Rail-1 pc (E) Front Guard Rail-1 pc (F) Ladder-1 pc (G) Panel-4 pcs (H) Slat Roll - 2 sets... -
Page 4: Hardware List
Carver Bunk Bed With Ladder– Assembly Instruction HARDWARE LIST HARDWARE ENCLOSED Threaded Rod 16 pcs Curved Washer 16 pcs Spring Washer 16 pcs 16 pcs Spanner Wrench 1 pc Screw (3cm) 36 pcs Screw (4cm) 16 pcs Allen Key (0.5cm Dia.) 1 pc Screw (2.5cm) - Page 5 Carver Bunk Bed With Ladder– Assembly Instruction Process: Step 1: Attach Side Rail (C) to Left Bunk End (A) and Right Bunk End (B). Stand Right Bunk End (B) upright and insert Thread Rod (1) to the prefabricated holes. Then align Side Rail(C) to Right Bunk End (B) with Thread Rod (1) into the holes in Side Rail (D).
- Page 6 Carver Bunk Bed With Ladder– Assembly Instruction Diagram I Diagram II ⑦ ② ③ ④ ① ⑤ Page 6 of 9...
- Page 7 Carver Bunk Bed With Ladder– Assembly Instruction Diagram IV Diagram III ⑧ ⑩ ⑨ Page 7 of 9...
- Page 8 Carver Bunk Bed With Ladder– Assembly Instruction ⑥ Diagram V Diagram VII Diagram VI Page 8 of 9...
- Page 9 Carver Bunk Bed With Ladder– Assembly Instruction Step 8:Install Bedding: BEDDING SPECIFICATION: The following size mattress and Foundation are specified for use with this Bunk bed; 38”W× 75”L ×7”H on upper bunk, MATTRESS: × 75”L ×10”H on lower bunk (twin size) 38”W...
