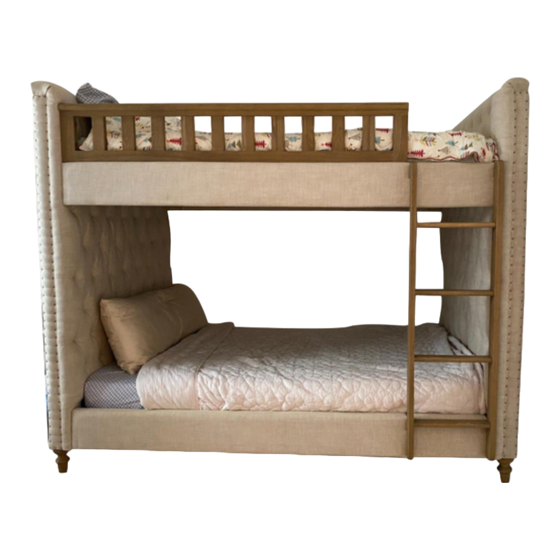

Chesterfield Bunk Bed Full - Assembly Instructions
Made In China
!
WARNING: Read all instructions before assembling
this product. KEEP INSTRUCTIONS FOR FUTURE USE.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact us first. You
can also order parts by writing to the address above. Include the product model number,
color, and a brief description of the part. Or call 1-800-762-1751.
CARE AND CLEA
NINGCAGCARE AND CLEANING
DO NOT use abrasive chemicals for cleaning. Dust often using a clean, soft, dry cloth.
Dab spills quickly with a soft cloth. Vacuum to remove dust.
If the Bunk Bed is to be stored, store in a cool, dry place and carefully package all original
hardware to protect from loss.
