Sharp FP-JC2 Operation Manual

Sharp FP-JC2 Operation Manual

Advertisement

Quick Links

"Plasmacluster" and "Device of a cluster
of grapes" are trademarks of Sharp
Corporation.
FP-JC2
* 1
The technology marking data is based
on a unit attached to the passenger
seat seatback and a car air conditioning
air outlet speed of 4-meters per second
(equivalent to the "low" setting) with
the product operating at the "standard"
setting in the center of the space (0.5m
above the floor) to maintain 25000 high
dencity plasmacluster ions per cm³.
The unit is designed for ordinary passenger
cars with DC 12V batteries.It cannot be used in
vehicles with DC 24V batteries
(buses, trucks, etc.)
FP-JC2.indd
1
*1

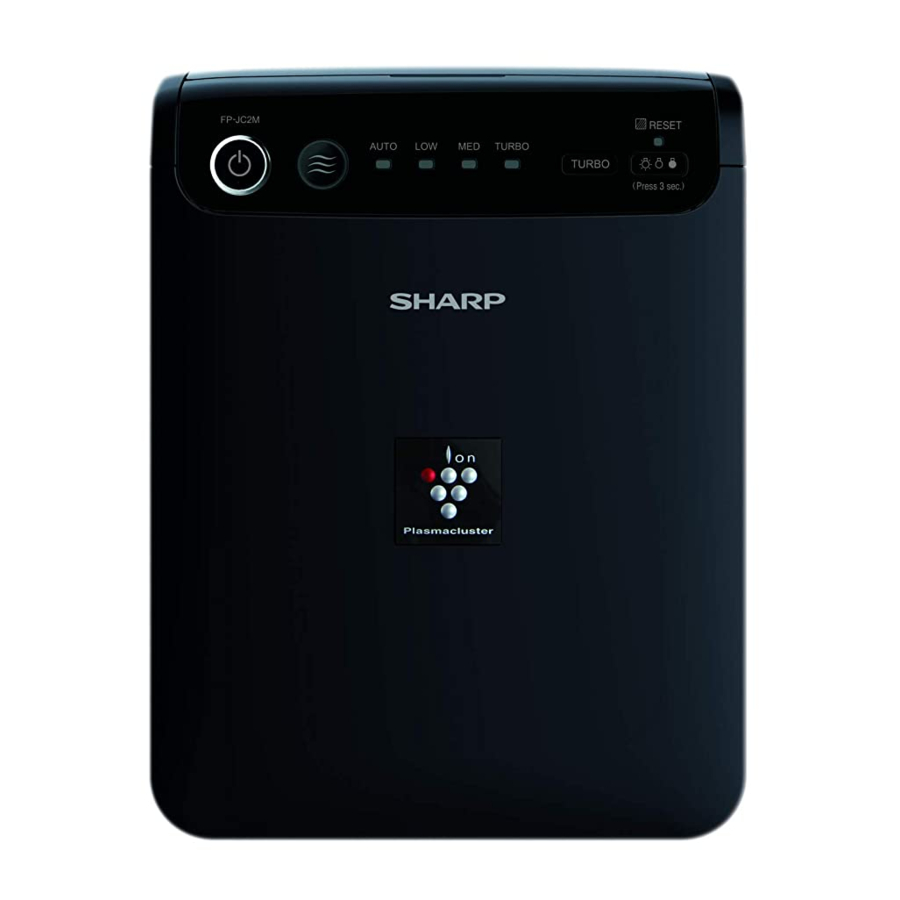

CAR AIR PURIFIER
OPERATION MANUAL
2018/06/28
11:35:09

Advertisement

loading

  Summary of Contents for Sharp FP-JC2

  • Page 1 CAR AIR PURIFIER *1 OPERATION MANUAL "Plasmacluster" and "Device of a cluster of grapes" are trademarks of Sharp Corporation. FP-JC2 * 1 The technology marking data is based on a unit attached to the passenger seat seatback and a car air conditioning air outlet speed of 4-meters per second (equivalent to the “low”...
  • Page 2 Depending on usage conditions, and especially if the unit is used in environments significantly more severe than a normal household, these odors may become noticeable sooner than expected. Replace the filter in those cases or if dust is unable to be removed after maintenance. FP-JC2.indd 2018/06/28 11:35:11...
  • Page 3: Table Of Contents

    • REPLACING THE FUSE............E-19 • SPECIFICATIONS ..............E-19 • TROUBLESHOOTING ............E-20 Thank you for purchasing this SHARP Plasmacluster Ion Generator. Please read this manual carefully before using Plasmacluster Ion Generator. After reading, keep the manual in a convenient location for future reference.
  • Page 4: Important Safety Instructions

    (Doing so could cause injury or damage.) If the unit should drop or be damaged, contact your store of purchase or SHARP authorized service center.Continued usage of damaged unit could lead to fire or electric shock. • Do not install in the place that hinders driving.
  • Page 5 • Do not modify the unit. Also, no one other than an authorized repairman should take apart or repair the unit. (Doing so could lead to fire, electric shock or injury.) Contact your store of purchase or SHARP authorized service center for repairs.
  • Page 6 The inside of the unit has insulation with fluoresin, silicon, and similar materials that can cause the air purifier to not emit Plasmacluster ions. FP-JC2.indd 2018/06/28 11:35:16...
  • Page 7: Part Names

    Car Adapter (With 2.5A glass tube fuse) Connect to the cigar lighter socket in the vehicle. ・Mounting belt ・ Cable Clip(5 pieces) To fi x cable on wiring. ・Operation Manual Power Input Cable Rail Terminal Air Inlet FP-JC2.indd 2018/06/28 11:35:22...
  • Page 8 PART NAMES Odor Monitor / Cleanliness Monitor Cleanliness Monitor Odor Monitor Indicates the odor level in 2 steps. Indicates the air purify level in 2 steps. Turn OFF Clean Geeen Clean Yellow Impure Yellow Impure FP-JC2.indd 2018/06/28 11:35:22...
  • Page 9 Push Push Washable All-in-one dust collection/ Pre-Filter Deodorizing Filter deodorizing filter Grab two lever Washable All-in-one dust collection/ Deodorizing Filter deodorizing filter ① ② Pre-Filter Upside the tagged surface Front Panel ① ① ② ② Close Close FP-JC2.indd 2018/06/28 11:35:26...
  • Page 10: Preparation

    To secure the belt, run the headrest ※2 shaft through the belt hole*1, and Shaft ※1 then attach the headrest.(The buckle should be positioned as shown in *2 in the drawing on the left.) Wrap the belt around the shaft. FP-JC2.indd 2018/06/28 11:35:31...
  • Page 11 To keep the unit from falling, tie the tip of the belt into a knot. Place the tip of the belt between the unit and headrest. After storing the belt, adjust the height of the headrest. cont FP-JC2.indd 2018/06/28 11:35:34...
  • Page 12 • Do not install in places which may influence safety sach as air bags, consider an appropriate place for installation. • Consider the front/back movement of seats and reclining. • Do not fold the cable or put pressure on it. E-10 FP-JC2.indd 2018/06/28 11:35:36...
  • Page 13 Buckle Guide Pull the tip of the belt through the buckle guide in the reverse of the fastening direction. After passing the belt through the buckle guide, pull on the belt to unfasten it from the buckle. E-11 FP-JC2.indd 2018/06/28 11:35:38...
  • Page 14 • If the armrest has a storage NOTE compartment or similar feature and it is not possible to completely store the armrest due to the thickness of the belt, do not attach the unit to the armrest. Not Loose E-12 FP-JC2.indd 2018/06/28 11:35:40...
  • Page 15 To attach the car adapter, refer to steps 8 and 9 of E-10 Attaching to the seat back. Adjusting the airflow direction Air outlet louver Adjust the angle of louver by pressing corner approx 84° approx 52° approx 26° approx 42° E-13 FP-JC2.indd 2018/06/28 11:35:45...
  • Page 16: Operation

    OFF, pull out the cigar plug for preventing the dead battery. • It is not a failure should the fan operate with a delay of about 3 to 10 seconds after starting. E-14 FP-JC2.indd 2018/06/28 11:35:49...
  • Page 17 (80 hours) Benchmarks for setting the filter maintenance lamp light up time. Example: When set to 40 hours and driving 2 hours a day 5 days a week, the lamp will light up in about one month. E-15 FP-JC2.indd 2018/06/28 11:35:51...
  • Page 18: Care And Maintenance

    Gently remove dust from sensor Sensor cover with vacuume cleaner Cover When washing the filter Filter ① Remove the sensor filter. ② If the sensor filter is very dirty, wash it with water and dry it thoroughly. ② ① E-16 FP-JC2.indd 2018/06/28 11:35:53...
  • Page 19 Insert the car adapter into the power input terminal, start operation, and then press the Light control button (also the Filter maintenance reset button) for more than 3 seconds. (The Filter maintenance lamp lights off) Press more 3 seconds E-17 FP-JC2.indd 2018/06/28 11:35:56...
  • Page 20: Filter Replacement Guidelines

    • Tobacco smoke (particles) • Ammonia odor • Acetaldehyde Water washable • Acetic acid type odor Depending on the usage environment, the filter may need to be replaced from every several weeks to every several months. E-18 FP-JC2.indd 2018/06/28 11:35:58...
  • Page 21 • Be sure to replace with a 2.5A glass tube fuse (commercially available). • Before use, make sure that the car adapter tip is not loose after reattaching it. Using the unit while the car adapter tip is loose can damage the unit. d remains) odor E-19 FP-JC2.indd 2018/06/28 11:36:00...
  • Page 22: Troubleshooting

    (See E-00) The Cleanliness Monitor does • Is the lamp set to the Turn Off setting? • Press the lamp Brighter, Darker, Turn Off button not light up. to switch the brightness. (See E-00) E-20 FP-JC2.indd 2018/06/28 11:36:01...
  • Page 23 • Please remove the car adapter and re-insert it, then press the operation button again. • If this happens repeatedly, contact the store of purchase or SHARP authorized service center. A discontinuous noise is heard. A • Clicking or ticking sound may be audible when the unit is generating ions.
  • Page 24 Association. The time required to reduce dust concentration from 1.25mg/m³ to 0.15mg/m³ (equivalent to reducing concentration to 12% of its initial amount) in a space with the volume of a typical car (3.6m³) or minivan (6.0m³). SHARP CORPORATION OSAKA, JAPAN Printed in China   TINSEA005KKRZ 18G- ①...
