NOTE: THIS MACHINE IS FOR USE WITH SOFT DOUGH ONLY
OPERATING AND MAINTENANCE MANUAL
The use of templates and/or accessories not produced or supplied by
MONO Equipment will invalidate the machine's warranty
09/07/21 UL
Rev. A21
FG080 –EPSILON UL spec 09/07/21
Enter Serial No. here._____________________________________
In the event of an enquiry please quote this serial number.
Epsilon
FILE 102
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Epsilon and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mono Epsilon

Summary of Contents for Mono Epsilon

  • Page 1 NOTE: THIS MACHINE IS FOR USE WITH SOFT DOUGH ONLY Epsilon OPERATING AND MAINTENANCE MANUAL The use of templates and/or accessories not produced or supplied by MONO Equipment will invalidate the machine’s warranty 09/07/21 UL FILE 102 Rev. A21 FG080 –EPSILON UL spec 09/07/21...
  • Page 2 SAFETY LABELS FOR EPSILON DEPOSITOR PART NUMBER PART NUMBER 080-00-00102 B801-15-025 PART NUMBER 080-00-00101 (4off EACH LABEL) PART NUMBER 077-11-00100 FG080 –EPSILON UL spec 09/07/21...
  • Page 3 The use of templates and/or accessories not produced or supplied by MONO Equipment will invalidate the machine’s warranty FOR SAFE WORKING, PAY SPECIAL ATTENTION TO ITEMS MARKED FG080 –EPSILON UL spec 09/07/21...

  • Page 4: Table Of Contents

    – EDIT & SAVE SCREEN 4A – TRAY SETUP – COPY – DELETE – PASSWORDS – ENGINEERING SETTINGS – FAULT INFORMATION SCREENS 11.0 MAINTENANCE 12.0 SPARES AND SERVICE 13.0 SPARES LIST 14.0 ELECTRICAL INFORMATION FG080 –EPSILON UL spec 09/07/21 Rev.A21...

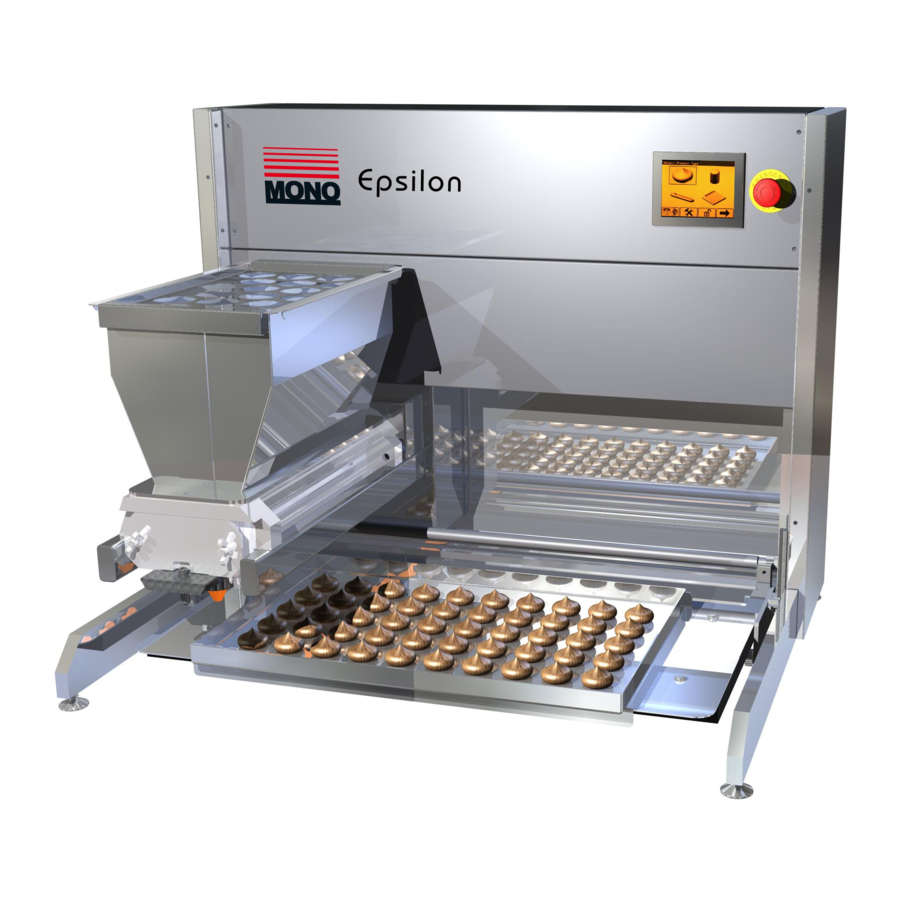

  • Page 5 1.0 INTRODUCTION EPSILON  The ground breaking EPSILON tabletop confectionary depositor requires a small space to operate.  The unique travelling hopper system removes the need for a conveyor belt which means trays can be loaded and unloaded in the most ergonomically efficient way – directly from the front.
