Enter Serial No. here._____________________________________
In the event of an enquiry please quote this serial number.
www.monoequip.com

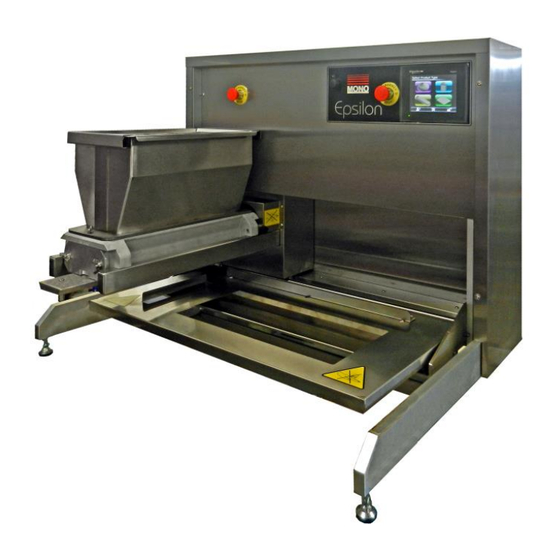

EPSILON
IMPORTANT INFORMATION
and
INSTALLATION INSTRUCTIONS
NOTE: THIS MACHINE IS FOR USE WITH SOFT DOUGH ONLY
The use of templates and/or accessories not produced or supplied by
MONO Equipment will invalidate the machine's warranty
MONO EQUIPMENT
Tel. +44(0)1792 561234
Queensway
email:spares@monoequip.com
Swansea West Industrial Estate
Spares Tel.+44(0)1792 564039
Swansea. SA5 4EB UK
Fax. 01792 561016
COMPLETE OPERATION AND MAINTENANCE INSTRUCTIONS
ARE AVAILABLE AT www.monoequip.com
FILE 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mono EPSILON
Summary of Contents for Mono EPSILON
- Page 1 EPSILON IMPORTANT INFORMATION INSTALLATION INSTRUCTIONS NOTE: THIS MACHINE IS FOR USE WITH SOFT DOUGH ONLY The use of templates and/or accessories not produced or supplied by MONO Equipment will invalidate the machine’s warranty MONO EQUIPMENT Tel. +44(0)1792 561234 Queensway email:spares@monoequip.com Swansea West Industrial Estate Spares Tel.+44(0)1792 564039...
-
Page 3: Safety Symbols
SAFETY SYMBOLS The following safety symbols are used throughout this product documentation and manual (available at www.monoequip.com). Before using your new equipment, read the instruction manual carefully and pay special attention to information marked with the following symbols. Indicates a hazardous situation which, if not avoided, WARNING will result in death or serious injury. - Page 4 ELECTRICAL SAFETY AND ADVICE REGARDING SUPPLEMENTARY ELECTRICAL PROTECTION: Commercial bakeries, kitchens and foodservice areas are environments where electrical appliances may be located close to liquids or operate in and around damp conditions or where restricted movement for installation and service is evident. The installation and periodic inspection of the appliance should only be undertaken by a qualified, skilled and competent electrician, and connected to the correct supply suitable for the load as stipulated by the appliance data label.
- Page 5 Always ensure hands are dry before touching any electrical appliance (including cable, switch and plug). NEVER move machinery by pulling on the power cords or cables. Ensure that the floor area around the Epsilon is clean to avoid slipping – especially if carrying heavy hopper and template components to and from the machine.
-
Page 6: Installation
INSTALLATION Ensure that the depositor is connected to the correct electric supply as specified on the serial number plate on the side of the machine. The supply to this machine must be protected by a 30mA RCD Ensure that the correct fuse rating is fitted in the electrical supply. The support table should be level and strong enough to support the machine and loaded hopper. - Page 7 BEST OPERATING CONDITIONS To obtain the best product results and consistent operation, ✓ Make sure the depositor is used on a level surface. (Adjust feet if required) ✓ Ensure flat trays are used. ✓ Ensure undamaged nozzles and templates are used. ✓...
-
Page 8: Fitting The Hopper
FITTING THE HOPPER ❑ CAUTION SHOULD BE TAKEN WHEN FITTING HOPPER AND PUMP ASSEMBLY AS WEIGHT EXCEEDS 25KGS ON SOME MODELS It will need to be lifted off by two people, or dismantled into smaller components while still on the machine. MAKE SURE FLOOR AREA AROUND MACHINE IS CLEAN To reduce weight and bulk fit the complete hopper assembly in two stages - first the pump assembly onto the support bars, then the feed hopper body onto the pump... -
Page 9: Preparing For Operation
PREPARING FOR OPERATION NOTE: THIS MACHINE IS FOR USE WITH SOFT DOUGH ONLY The use of templates and/or accessories not produced or supplied by MONO Equipment will invalidate the machine’s warranty Select template and nozzles required and fit (as section 9a & 9b on web manual). - Page 10 To adjust the position of the back guide, remove the table and turn it over. Loosen the thumb nuts and slide the sheet across to the desired position. Tighten the nuts and replace the table. NUTS FG080 Epsilon quickstart RevA19 29-01-19...
-
Page 11: Cleaning Instructions
Thumbscrews only need to be released slightly to allow the template to slide away from the pump assembly. If loosened too much, the template will have to be supported. DOUGH HOPPER CLAMP STRIP AND NUTS TEMPLATE NOZZLES FG080 Epsilon quickstart RevA19 29-01-19... - Page 12 To gain access to the inner wing nut, slide the complete hopper away from the machine body slightly (keep on support bars) - this will also disengage the pump assembly from the drive shaft. HOPPER WINGNUTS Ensure that the wing nuts are placed where they will not be lost. FG080 Epsilon quickstart RevA19 29-01-19...
- Page 13 4. Remove remainder of pump assembly from the machine and remove remaining end-cap to fully dismantle pump assembly components for cleaning. PICTORIAL VIEWS SHOWN COULD BE DIFFERENT TO THE MACHINE BEING WORKED ON BUT THE INSTRUCTIONS ARE THE SAME FOR ALL MODELS. FG080 Epsilon quickstart RevA19 29-01-19...
- Page 14 1. Hold table with the front edge raised and engage the slots over the pin on both sides. 2. Lower the table front edge. When in the correct position the table will not slide forward. TABLE LOCATING PIN FG080 Epsilon quickstart RevA19 29-01-19...
