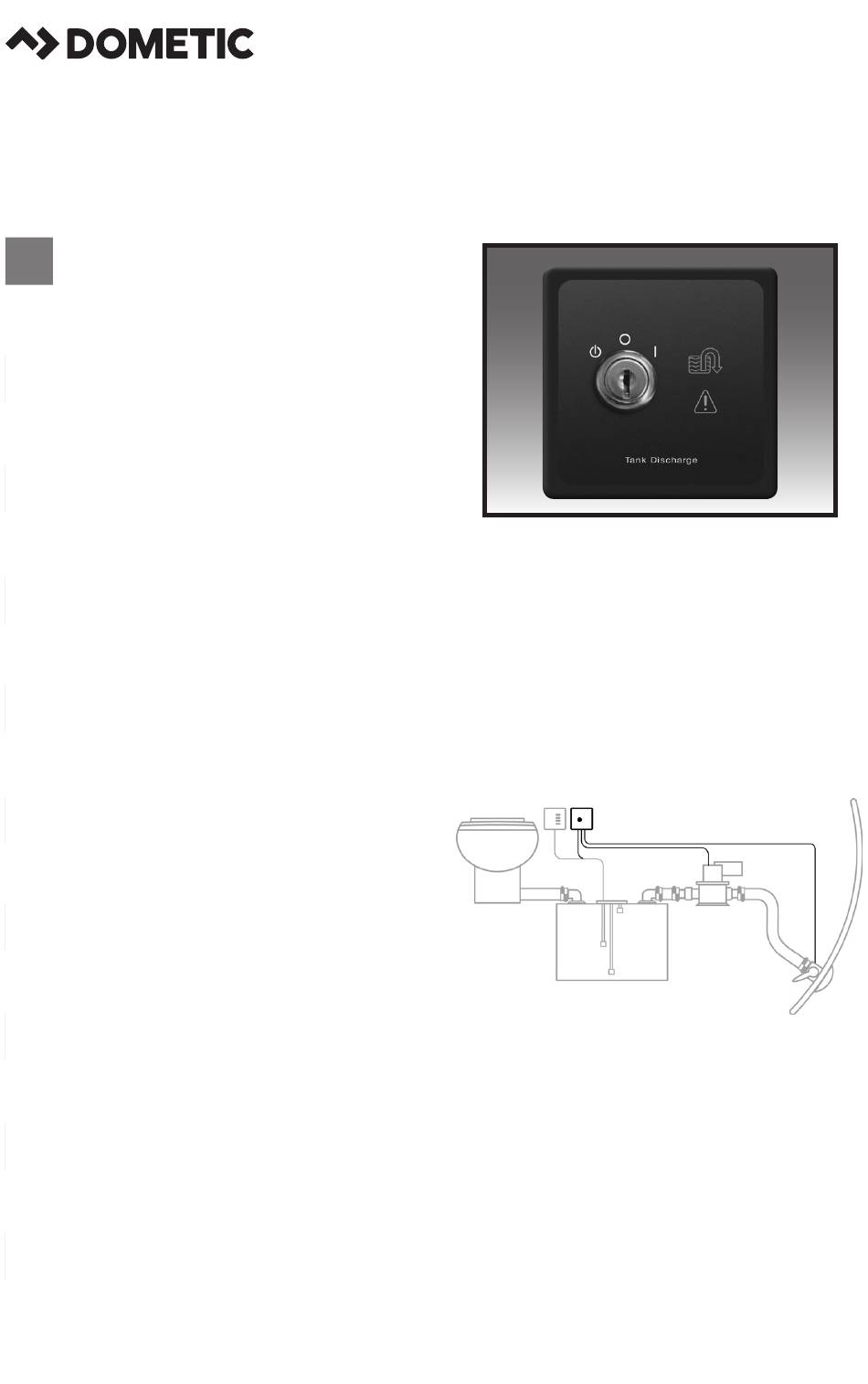

DTD01A Tank Discharge Control panel provides a key-operated switch to activate a discharge pump . When the key is in the automatic power position and the panel is used with a Dometic DTM04 Tank Monitor System, the discharge control panel activates the discharge pump automatically . The DTD control panel can be used with virtually any electric discharge pump that operates on the same rated voltage (12 V DC or 24 V DC) and a maximum circuit breaker or fuse rating of 20 amps . -
Page 8: Specifications
Because attempting to pump-out a holding tank can be harmful if the seacock to the overboard discharge fitting is closed, the DTD02A panel also includes a yellow warning light that indicates when the seacock is closed . The DTD02A panel connects to two Dometic seacock switches (available separately): •... -
Page 9: Components
385311683 / 860003853116831 #6 fastener 385311612 / 860003853116120 Mounting frame 385311613 / 860003853116138 DTD01A circuit ass’y, 12 V DC 385311680 / 860003853116807 DTD01A circuit ass’y, 24 V DC 385311681 / 860003853116815 DTD02A circuit ass’y, 12 V DC 385311684 / 860003853116849 DTD02A circuit ass’y, 24 V DC... - Page 10 8 . Tuck key switch wires into circuit assembly housing, and push panel cover onto mounting frame until it locks into place . 9 . Turn on electrical power . Key to DTD01A/02A and DTM04 system wiring (fig . , page 4) Ref.
-
Page 11: Operation
Operation Caution! Operator must know local regulations for emptying a holding tank . DTD01A discharge control with DTM04 tank monitor system (fig . , page 3) 1 . When boat is in unrestricted waters and automatic pump-out is desired, open seacock, insert key into switch and turn to “automatic power”... -
Page 12: Warranty
. If this Dometic product is placed in commercial or business use, it will be warranted to the original purchaser only to be free of defects in material and workmanship for a period of ninety (90) days from the date of purchase . -
Page 13: Customer Service
Service department listed elsewhere in this manual . Any damage due to improper use is not covered by the warranty . The warranty does not cover any modifications to the product or the use of non-original Dometic parts; the warranty does not apply if the installation and operating instructions are not adhered to and no liability shall be entertained . - Page 14 Notes Dometic Tank Discharge Control...
