- Page 1 ESPAÑOL · MANUAL DE USUARIO ENGLISH · USER´S MANUAL 1_AF_Espanol_Ingles_Interior.indd 3 02/09/11 15:20...
- Page 2 Diagrams with parts: Basic Diagrams with parts: Basic 1_AF_Espanol_Ingles_Interior.indd 7 02/09/11 15:20...
- Page 3 Diagrams with parts: Essential Pro Diagrams with parts: Essential Pro 1_AF_Espanol_Ingles_Interior.indd 8 02/09/11 15:20...
- Page 4 Diagrams with parts: Versatile Pro Diagrams with parts: Versatile Pro 1_AF_Espanol_Ingles_Interior.indd 9 02/09/11 15:20...

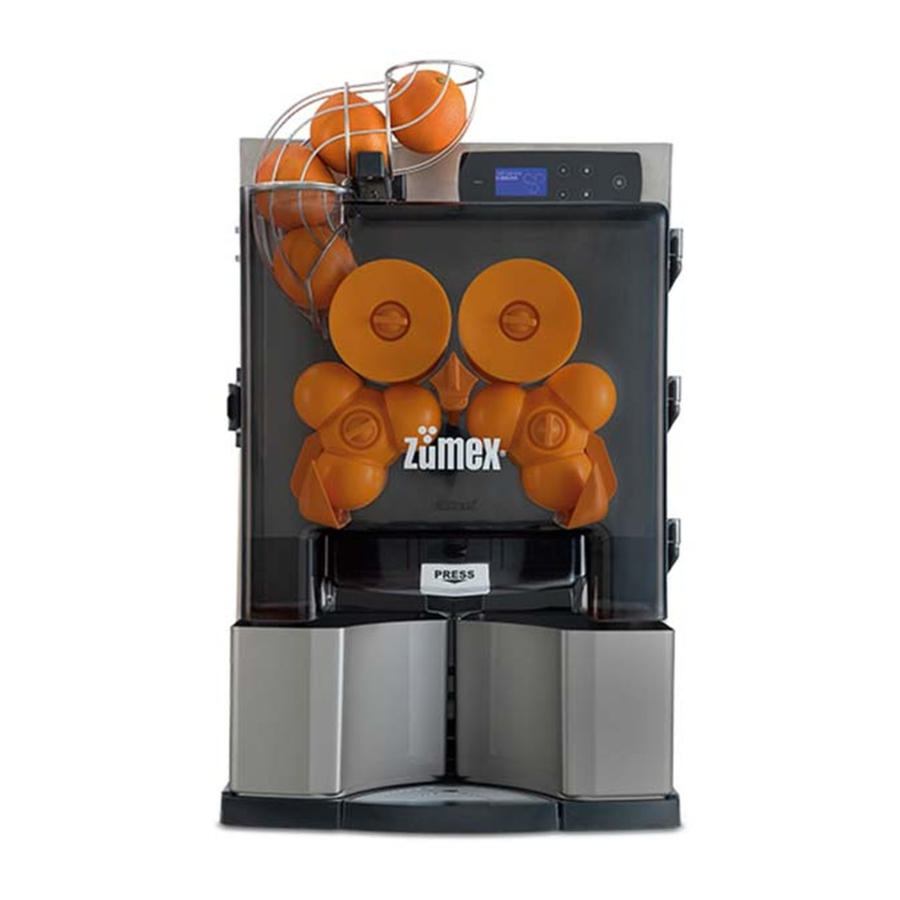

- Page 5 ZUMEX ESSENTIAL BASIC Fig. 1 Fig. 2 Fig. 3 ZUMEX ESSENTIAL PRO ZUMEX VERSATILE PRO Fig. 4 Fig. 5 Essential Basic · Essential Pro · Versatile Pro 1_AF_Espanol_Ingles_Interior.indd 10 02/09/11 15:20...
- Page 6 Fig. 6 Fig. 7 Frutas Fig. 8 Fig. 9 Fig. 10 Fig. 11A Fig. 12A Fig. 12B Fig. 13 90º Essential Pro · Versatile Pro 1_AF_Espanol_Ingles_Interior.indd 11 02/09/11 15:20...
- Page 7 Electrical Diagram Essential Pro CIRCUITO IR BOTONERA IR CIRCUIT kEYBOARD MOTOR MOTOR DETECTOR CUBETA ZUMO DETECTOR JUICE CONTAINER DETECTOR GRIFO DETECTOR FAUCET CIRCUITO DE MANIOBRA TOMA DE TIERRA CONTROL CIRCUIT GROUND Electrical Diagram 1_AF_Espanol_Ingles_Interior.indd 12 02/09/11 15:20...
- Page 8 Electrical Diagram Versatile Pro BOTONERA kEYBOARD MOTOR MOTOR DETECTOR CUBETA ZUMO DETECTOR JUICE CONTAINER DETECTOR GRIFO DETECTOR FAUCET CIRCUITO DE MANIOBRA TOMA DE TIERRA CONTROL CIRCUIT GROUND Electrical Diagram 1_AF_Espanol_Ingles_Interior.indd 13 02/09/11 15:20...
- Page 9 The following Manual refers to the following models: Essential Basic · Essential Pro · Versatile Pro 1_AF_Espanol_Ingles_Interior.indd 34 02/09/11 15:20...
- Page 10 40 Warranty 41 Usage Instructions 41 General description 42 Preparation 43 Operation 50 Cleaning 52 Fault detection 54 CE Declaration of Conformity Zumex reserves the right to modify the information contained in this manual without prior notice. 1_AF_Espanol_Ingles_Interior.indd 35 02/09/11 15:20...
- Page 11 A Original squeezing system and Technology antibacterial ASP. ORIGINAL SYSTEM Original squeezing system patented by ZUMEX. The rotating squeezing units extract the maximum amount of juice preventing their contact with the cortex and thus ensuring better quality, taste and hygiene.
- Page 12 The first generation of orange juicers with exclusive antibacterial technology. ZUMEX ASP is a unique antibacterial technology based on silver ions that inhibit bacterial growth between washes providing extra-effective protection and durability. www.zumexasp.com Under moist conditions... ZUMEX ASP delivers silver ions.
-
Page 13: Important General Information
- 23 languages to choose from. - Anti-drip tap · The specific particulars about your Zumex juicer (voltage, frequency and other data of interest) are stated on the Identification Label on the machine itself. · Remember that for any technical consultation you should get in touch with your usual Distributor/ Official Technical Assistance Service, always stating the Serial number of the machine’s Identification Label. -
Page 14: Technical Features
Technical Features Essential Basic Essential Pro Versatile Pro Podium Oranges per minute: Dimensions (cm): 47 x 50 x 88 cm 47 x 50 x 75 cm 47 x 55 x 85 cm 47,5 x 58 x 80 cm Net Weight (Kg):... -
Page 15: Warranty
Identification Label. Replacement of original parts Zumex recommends the use of Zumex spare parts and accessories for keeping the machine in perfect condition. These parts have been expressly adapted for your type of machine and have been subjected to our strict controls ensuring their reliability;... -
Page 16: Usage Instructions
Usage Instructions General Description Zumex Essential Basic Zumex Essential Pro Zumex Versatile Pro Juice container Fume juice container Juice container Filter container Filter container Filter container Zumex cover Zumex cover Zumex cover Lower pressing unit Lower pressing unit Lower pressing unit... - Page 17 Preparation To start squeezing you must follow the steps below: Step 1 Unpack your juicer and place it on a surface as horizontal as possible. Step 2 Ensure that the mains power falls within the margins indicated on the Iden- tification Label of the machine which you will find both on the cover page of this manual as well as on the machine itself.
- Page 18 Operating Modes with Zumex Essential Pro Zumex Essential Pro can work in two operating modes: Autostart: The machine detects the oranges in the feeder tube and starts up as the oranges pass by. Self-service: The machine starts up by activating the self-service faucet either by pressing the faucet or by activating the switch lever;...
- Page 19 ON to confirm your selection. Press OFF several times until you exit MENU. Configuration Your Zumex juicer allows you to adjust the parameters according to your preferences. All adjustments are made at MENU > CONFIGURATION. Press the MENU key for a few seconds to enter the menu and select CONFIGURATION, press ON to confirm your selection.
- Page 20 Technical Service The Zumex Essential Pro and Versatile Pro juicers provide you with the information you need for correct unit maintenance. They are also fitted with a squeezed orange counter which can be configured in this mode. Press the MENU key for a few seconds to enter the menu and select TECHNICAL SERVICE, press ON to confirm your selection and OFF to return to the previous menu.
- Page 21 · Calibrate: Select CALIBRATE and press ON. Next, set your PIN number and press ON. The machine will ask for confirmation: ‘Calibrate?’, press ‘ON’ to confirm the automatic calibration. The machine will then carry out said calibration and dis- play the adjusted calibration value. Return to the menu, pressing OFF. This option must only be carried out under the supervision of the Technical Servi- ce and when it has been specifically indicated.
- Page 22 · Total counter: This shows you all the oranges consumed throughout the life of the juicer, this counter cannot be deleted. On the TECHNICAL SERVICE menu select COUNTERS > TOTAL COUNTER and press ON to confirm your selection. You can view the number of oranges on the screen. Move up to the upper menu by pressing OFF.
- Page 23 Summary of Zumex Essential Pro and Versatile Pro Operating Modes Working mode Configuartion Professional Technical Service Professional Professional Fruits Working mode Lighting Lighting Configuartion Language Technical Service Offset Language Lighting English Language Offset 1/23 Pin ? Offset Lighting Language 0000...
- Page 24 Summary of Zumex Essential Pro and Versatile Pro Operating Modes Serial number New Pin Voltage Calibration Counters Partial Counters Serial number Partial Counters Delete ? Partial Counters Total Counter Voltage Discounter Calibration 000010 Counters Partial Counters Total Counter Total Counter...
- Page 25 · In order to avoid the accumulation of wax it is important to clean the fruit feeder frequently of Zumex Versatile Pro models. · On models with a base stand clean the hopper and the inside of the stand, making sure to eliminate any peel or pulp remains.
- Page 26 REMEMBER: Do not put the front cover in the dishwasher. To clean it you can use a soft cloth dipped in water and washing-up liquid. Under no circumstances must you use abrasive products nor anti-lime products. English Usage Instructions 1_AF_Espanol_Ingles_Interior.indd 51 02/09/11 15:20...
-
Page 27: Detecting Faults
Detecting Faults FAULT: The machine doesn’t work Possible cause Correction Machine not plugged in. Plug it in. No power is reaching the plug. Check the socket. Cover not fitted properly. Make sure it has been fit properly. Juice container not fitted properly. Make sure it has been fit properly. - Page 28 FAULT: The faucet gets blocked Possible cause Correction The juice has seeds or too much pulp. Disassemble and clean the faucet according Fig. 11A. FAULT: The machine stops every now and again Possible cause Correction Check that the appliance’s ventilation Insufficient ventilation.
-
Page 29: Screen Messages
ZUMEX GROUP S.A., whose registered offices are situated at Polígono Industrial de Moncada III, C/ Molí, 2 - 46113 Moncada, Valencia (Spain) does hereby declare, under its sole responsibility, that the Essential Basic - Essential Pro - Versatile Pro juicer machine models conform to the following harmonised standards: EN ISO 12100-1 Machine safety. - Page 30 EN 60335-2-14 Safety of household electrical appliances and similar. Part 2-14: Specific requirements for kitchen appliances. 2006 EN 50366 Household electrical appliances and similar. Electromagnetic fields. Evalua- tion and measurement methodologies. 2003 Electromagnetic compatibility. Requirements for household electrical EN 55014-1 appliances, electrical tools and similar equipment.
