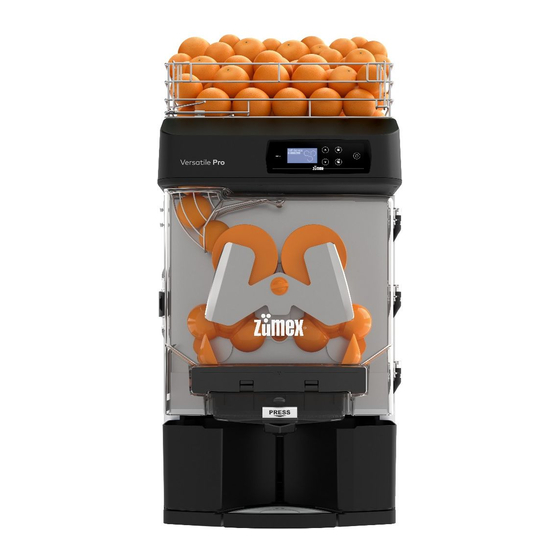

ZUMEX Versatile Pro Cleaning Instructions

Cleaning Instructions

1
Remove the feeder plate by unscrewing the
central knob.
Then clean the feeder base with a wet cloth.
4
Remove the tap pressing softly both sides.
7
Unscrew the central knob of the 1Step
Extraction Kit.
10
Clean the front part of the machine with a
soft sponge.
13
Take out the waste bin and clean inside the
podium, making sure that there is no rest of
pulp and peels.
The cleaning process will be explained in details for each one of the machine's components below.
Zumex Group S.A. Tel. +34 961 301 251. Fax. +34 961 301 255. zumex@zumex.com. Zumex Service Tel: +34 960 800 999.
For a correct cleaning process, please follow the instructions below.
Caution! Before getting started, make sure that the machine is
unplugged from general switch.
2
Remove the juice tray.
5
Remove the peel buckets.
8
Remove the 1Step Extraction Kit by pulling
it towards you with the stainless-steel
handles.
11
Remove the anti drop tray and the filter.
14
Once all the parts have been disassembled,
proceed to deep cleaning.
3
Remove out the filter.
6
Remove the front cover.
9
Assemble the blade protector and then
remove the blade by pulling the handle
towards you.
12
In case of podium models, clean the hopper
with a soft sponge.
Replacing parts.
For quick cleaning in the middle of
the day, we recommend having a kit
with spare parts. This Kit is made up
of: a cover, 1Step Extraction Kit, Juice
container and Filter.
www.zumex.com
