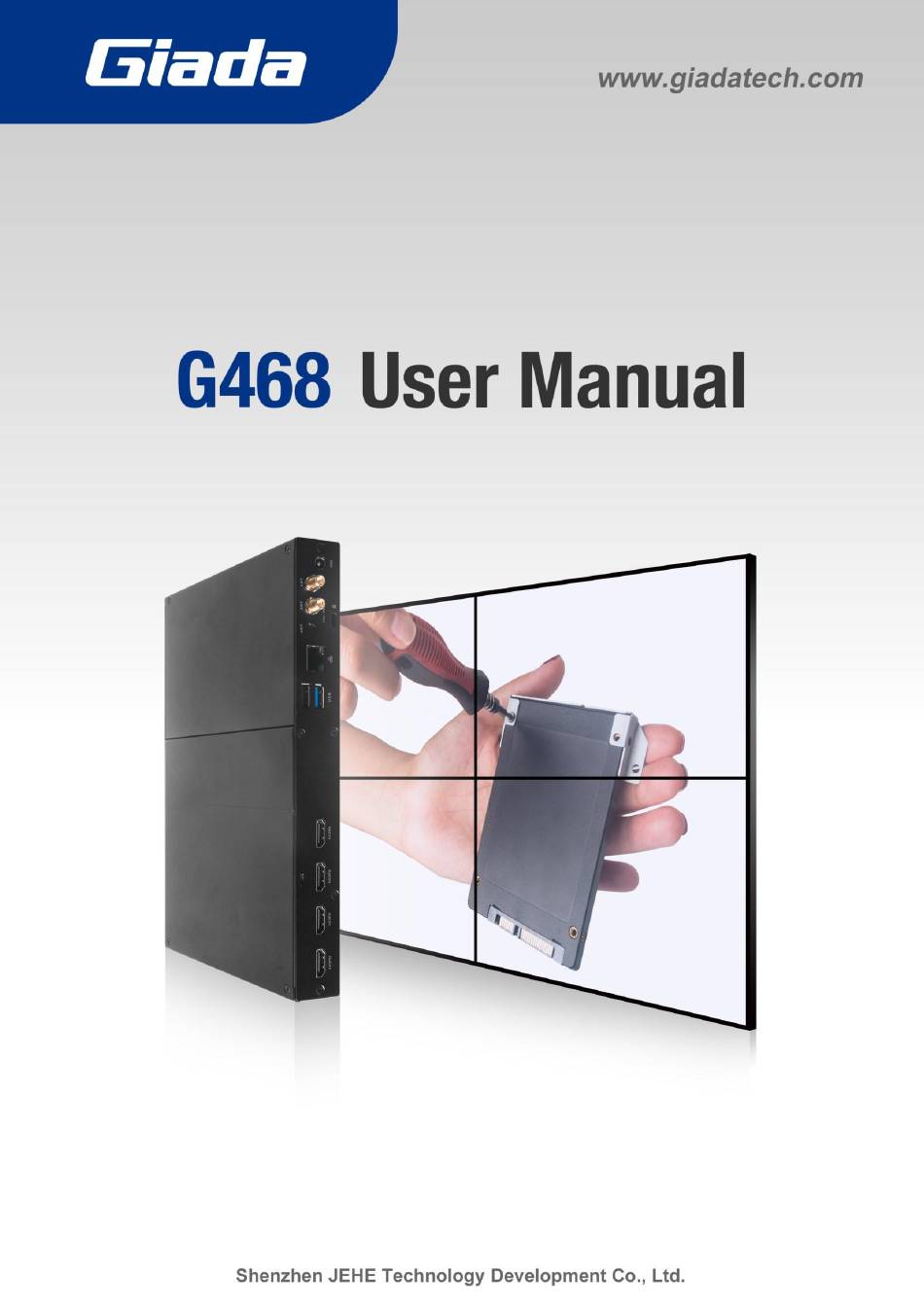

Giada G468 User Manual
  1. Manuals
  2. Brands
  3. Giada Manuals
  4. Media Player
  5. G468
  6. User manual

Giada G468 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G468 and is the answer not in the manual?

Questions and answers

Related Manuals for Giada G468

Summary of Contents for Giada G468

  • Page 2 The copyright of this manual belongs to Shenzhen JEHE Technology Development Co., Ltd. (Giada, JEHE‟s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction ....................3 2. Interface Description and Hardware Specifications ..........3 2.1 Interface Description ..................3 2.2 Hardware Specifications ................... 4 3. Accessories Installation Steps ................. 5 3.1 Memory Installation ..................6 3.2 SSD (M.2) Installation ..................7 3.3 WiFi Installation ....................
  • Page 4 4.2.4.2 Trusted Computing ..............20 4.2.4.3 ACPI Settings ................21 4.2.5 Power Configuration ................22 4.2.6 CPU Configuration ................23 4.2.7 Network State Configuration ..............24 4.2.8 CSM Configuration ................26 4.3 Security Setup ....................28 4.4 Boot Menu ...................... 29 4.5 Save &...

  • Page 5: Product Introduction

    1. Product Introduction Based on AMD Ryzen platform, Giada G468 adopts DDR4 dual-channel memory. With four HDMI 2.0 display outputs, it supports 4K resolution. The player is suitable to be applied in high-end digital signage applications such as video wall.

  • Page 6: Hardware Specifications

    2.2 Hardware Specifications G468 V1605B V1807B AMD Ryzen V1605B AMD Ryzen V1807B Processor Frequency 2.0GHz, 4 Cores / 8 Threads 3.35GHz, 4 Cores / 8 Threads BIOS AMI Source Code Chipset Type DDR4 Memory 2 x SO-DIMM Socket Max Capacity...

  • Page 7: Accessories Installation Steps

    3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the top cover and bottom cover Unscrew the two screws and remove the top cover. (M.2 for WIFI/BT and 2.5‟‟ SATA slot are on top side) Unscrew the only one screw, push the bottom cover, and remove it.

  • Page 8: Bios Setup

    The descriptions relating to BIOS setup in this Manual is for reference only since the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.
  • Page 9 B. Function Keys definitions Hot Key Description ↑ (Up key) Move to the previous item ↓ (Down key) Move to the next item ← (Left key) Move to the left item → (Right key) Move to the right item Exit the current interface Page Up Change the setup state, or add the values Page Down...
  • Page 10 (Fig 1) 1) Main (standard CMOS setup) This item is used for setting the date and time. 2) Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIe facilities, CPU, HDD, etc.

  • Page 11: Main (Standard Cmos Setup)

    4.1 Main (Standard CMOS Setup) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”.

  • Page 12: Advanced (Advanced Bios Setup)

    4.2 Advanced (Advanced BIOS Setup) 4.2.1 AMD CBS Settings 10 -...

  • Page 13: Nbio Common Options

    Options Description AMD CBS NBIO Common Options NBIO Common Options FCH Common Options FCH Common Options 4.2.2 NBIO Common Options Options Description NBIO Common Options GFX Configuration The user can set this item as enable, forces and Auto.  AUTO: Use default fan controller settings Fan Control ...

  • Page 14: Gfx Configuration

    4.2.2.1 GFX Configuration Options Description GFX Configuration Enabled Integrate Graphics controller.  Disabled. Integrated Graphics Controller  Forces.  Auto. Enabled Integrate HD Audio controller. Disabled.  NB Azalia  Forces.  Auto. This option is set by default. 12 -...

  • Page 15: Fan Control

    4.2.2.2 Fan Control Fan Control Description  Manual. Fan Control  Auto. Fan Control is auto by default. Low Temperature  Low Temperature Medium Temperature  Medium Temperature High Temperature  High Temperature Critical Temperature  Critical Temperature Low PWM ...

  • Page 16: Fch Common Options

    Fan Control Description  Negative Fan Polarity  Positive. The Fan Polarity value is positive by default. 4.2.3 FCH Common Options FCH Common Options Description SATA Configuration Options SATA Controller. SATA Controller  Disabled.  Enabled: The SATA controller is enabled by default. Ac Power Loss Options Specify what state to go to when power is re-applied after a power failure.

  • Page 17: Amd Pbs Settings

    FCH Common Options Description of last setup. Uart Configuration Options  Disabled. Uart 0 Enable Enabled. This item is enabled by default.   Disabled.  COM1 0x3F8.This item is COM1 0X3F8 by default. Uart 0 Legacy Options  COM2 0x2F8. ...
  • Page 18 AMD PBS Options Description AMD Firmware Version  Int Graphics (IGD).This item is enabled by default. Select IGD used by the internal graphics device. Primary Video Adapter Ext Graphics (PEG). Select PEG used by the extend graphics  device.  SATA.

  • Page 19: Firmware Version

    4.2.4.2 Trusted Computing TPM20 Device Found Description Firmware Version  TPM FW version is 3.23 Vendor  The vendor is AMD  Disabled Security Device Support  Enabled. This item is enabled by default.  Active PCR banks Active PCR banks ...

  • Page 20: Acpi Settings

    TPM20 Device Found Description  TPM2.0 UEFI Options, TCG_1_2 or TCG_2. The version is TPM2.0 UEFI spec version TCG_2 by default. Physical Presence Spec  You can choose 1.2 or 1.3. The version is 1.3 by default. Version TPM 20 Interface Type ...

  • Page 21: Power Configuration

    ACPI Options Description  S3 (Suspend to RAM): Enable S3(Suspend to RAM) 4.2.5 Power Configuration Power Configuration Functions Description Wake On LAN Function. Resume On Lan  Disabled: The WOL is disabled by default.  Enabled. Enable or disable System wake on alarm event. Select FixedTime, system will wake on the hr::min::sec Wake system by RTC specified.

  • Page 22: Cpu Configuration

    4.2.6 CPU Configuration The menu Description CPU Configuration Module Version Module version.  AGESA Version  AGESA Version  Enable/Disable the generation of APCI _PPC,_PSS and PSS Support _PCT Objects The PPC Adjustment is PState by default.  PState 0.The ppc adjustment is PState 0 by default. PPC Adjustment ...

  • Page 23: Network State Configuration

    4.2.7 Network State Configuration 21 -...
  • Page 24 OEM Menu Functions Description UEFI Configuration Enabled/Disabled UEFI Stack.. PXE Function  Disabled: The PXE function is disable by default.  Enabled. Enabled/Disabled IPV4 PXE boot support. Ipv4 PXE Support  Enabled.  Disabled. This item is disabled by default. Enabled/Disabled IPV4 PXE boot support.

  • Page 25: Csm Configuration

    4.2.8 CSM Configuration CSM Options Description Compatibility Support Module Configuration  Enabled: The CSM support function is enable by default. CSM Support  Disabled. CSM16 Module Version The Current CMS Version.  Upon Request. (This option is set by default) GateA20 Active ...
  • Page 26  UFEI and Legacy: It will support both UEFI and legacy mode. Boot option filter  Legacy only: It only supports legacy mode.  UEFI only: It only supports UEFI mode. Option ROM Execution Network ROM Boot.  Do not launch: Do not Boot. Network ...

  • Page 27: Security Setup

    4.3 Security Setup (set the administrator/user password) If this function is selected, the following information will appear: Enter New Password hhhhhh Then enter a password which is no more than eight characters and press <Enter>. BIOS will require to enter the password again. Once you enter it again, BIOS will save the set password.

  • Page 28: Boot Menu

    4.4. Boot Menu Boot Item Description Boot Configuration This item is use to set the wait time of entering the operation system. During the BIOS post, if user doesn't press the keyboard, Setup Prompt Timeout it won't respond unless you reboot the BIOS. The Setup Prompt Timeout is 3s by default.

  • Page 29: Save & Exit

    Boot Item Description New Boot Option Policy Control the placement of newly detected UEFI boot options You can set and manage legacy USB device after enabling this USB Drive BBS Priorities option. 4.5 Save & Exit Save Exit Item Description Save Options Save Changes and Reset Save all changes and exit...

  • Page 30: Jahc Introduction

    5. JAHC Introduction JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). It can support following functions: 1. Automatically boot up when power on. It is controlled by the Micro Control Unit (MCU) chip. 2.
  • Page 31 b. Select Advanced->Power Configuration->JAHC Enable- > Enabled. 29 -...
  • Page 32 c. Press „F10‟ to save change & exit after select “JAHC enabled” option. 30 -...

  • Page 33: Jahc Software

    Supported operation system: Windows 10 64bit, Linux 64bit. How to install JAHC software: Please download the JAHC.EXE from Giada website: www.giadatech.com, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and click [Next] button to continue the installation.
  • Page 34 b. Click [Next] button to continue the installation. Select [Create a desktop shortcut] and click [Next] button. 32 -...
  • Page 35 d. Click [Install] button to continue the installation. 33 -...
  • Page 36 Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation. Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. 34 -...

  • Page 37: Startup And Shutdown Time Setup

    5.2.3 Startup & shutdown time setup After installing the JAHC software, double click the JAHC icon on taskbar and the setup menu will pop up. One week as a circle, maximum 3 schedules per day. Select each schedule to set up the resume time and shutdown time.

  • Page 38: Watchdog Api And Instruction

    You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and Instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction. 36 -...
  • Page 39 37 -...
