  • Page 2 The copyright of this manual belongs to Shenzhen JEHE Technology Development Co., Ltd. (Giada, JEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.
  • Page 3 Table of Contents 1. Product Introduction ..................... 3 2. Interface Description and Hardware Specifications ..........3 2.1 Interface Description .................... 3 2.2 Hardware Specifications ..................5 3. Accessories Installation Steps ................6 3.1 CPU Installation ....................7 3.2 Memory Installation ..................... 7 3.3 WIFI (M.2) Installation ..................
  • Page 4 4.2.5 CSM Configuration ................... 23 4.2.6 HM Monitor & Smart Fan ................ 24 4.2.7 OEM Configuration .................. 26 4.2.8 System Devices Configuration ..............27 4.3 Security Setup ....................28 4.4 Boot Menu ......................29 4.5 Save & Exit ......................30 5.

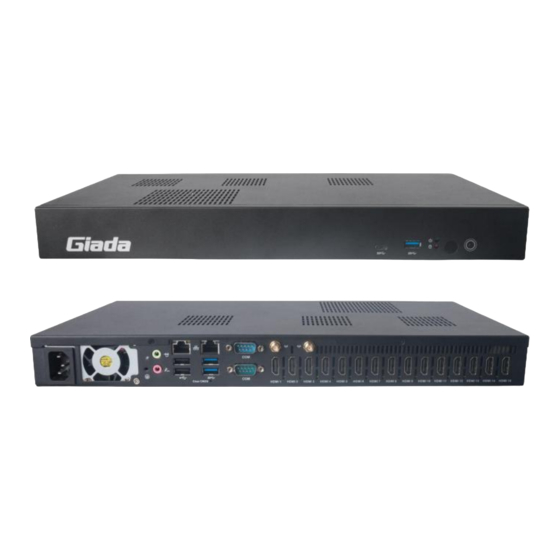

  • Page 5 1. Product Introduction Based on Intel Coffee Lake-S platform, Giada G968 and G1568 support Intel LGA1151 Socket 8 Generation processors. Featured with AMD discrete graphics card, the G968 supports 9 HDMI outputs while G1568 supports 15 HDMI outputs. With multiple outputs and powerful GPU capability, G968 and G1568 provide ideal solution for video wall applications.
  • Page 6 15 x HDMI Left I/O Port 2.2 Hardware Specifications G968 G1568 Intel ® Coffee Lake-S Processors (TDP≤ 65W) Processor Chipset Q370 Type DDR4 – 2400MHz Memory Socket 2 x SO-DIMM Max Capacity 32 GB - 4 -...
  • Page 7 1 x AMD E8860 GPU with 128-bit 2 x AMD E8860 GPU with 128-bit wide, 2GB GDDR5 wide, 2GB GDDR5 Graphics Graphic Engine DirectX12，OpenGL4.5, OpenGL 1.2 9 x HDMI 2.0 15 x HDMI 2.0 HDMI (Max. 4096 x 2304 @60Hz) (Max.
  • Page 8 3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the cover Unscrew the six screws. Push and open the case. (SO-DIMM#1 SO-DIMM#2, M.2 for SSD, MIni PCle for 3G/4G, M.2 for Wifi/BT, 2.5’’ SATA and SIM slot) - 6 -...
  • Page 9 3.1 CPU Installation 1. Unscrew the four screws and remove the CPU cooler. 2. Remove the hook to open the closure. 3. Put the CPU on the board and paint the top side with heat conduction grease. 4. Remove the closure and put the hook back. 5.
  • Page 10 3.3 WIFI (M.2) Installation 1. Plug the WIFI module into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. 3. Connect the two black cables to Main and AUX. Install antennas. - 8 -...
  • Page 11 3.4 3G/4G Installation Default SMA connector and cable is for WIFI. Please change to 3G/4G SMA connector and cable. 1. Unscrew two screws to remove the fan. 2. Plug the 3G/4G module into the mini PCIE slot. 3. Secure the module to the carrier by tightening up the screw. 4.
  • Page 12 3.5 SSD (M.2) Installation 1. Plug the SSD (M.2) into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. - 10 -...
  • Page 13 3.6 2.5’’ SATA Installation 1. Unscrew the screws from the carrier. 2. Tighten up the two screws on the back side of 2.5'' SATA disk. 3. Plug 2.5'' SATA disk into the slot and tighten up the two screws on front side to fix it. 3.7 SIM Card Installation This product supports standard SIM card with the size of 25mm ×...
  • Page 14 The descriptions relating to BIOS setup in this Manual is for reference only since the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.
  • Page 15 series of diagnosis fixed in BIOS. When this program is executed, the following information will appear if any error is found: Press [F1] to Run General help Press [F2] to Load previous values and continue To enter BIOS, you can press F2; to load the default values and enter the system, you can press DEL to enter the BIOS interface if no error occurs.
  • Page 16 Fig 1 1) Main (standard CMOS setup) This item is used for setting the date and time. 2) Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIe facilities, CPU, HDD, etc.
  • Page 17 4.1 Main (Standard CMOS Setup) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”. - 15 -...
  • Page 18 4.2 Advanced (Advanced BIOS Setup) - 16 -...
  • Page 19 4.2.1 ACPI Settings ACPI Menu Description Select the highest ACPI sleep state the system will enter when the ACPI Sleep State SUSPEND button is pressed.  S0 State (Default): If set it as S0 State, it means the system will remain shutdown state S5 State: If set it as S5 State, it means the system will be ...
  • Page 20 CPU Configuration Menu Description Select the performance state that the BIOS will set Boot performance mode starting from reset vector. Intel Virtualization Technology is enabled by Intel Virtualization Technology default. User can enable and disable the Intel Virtualization Technology function. Allows more than two frequency range to be Intel ®...
  • Page 21 CPU Configuration Menu Description Allows CPU to go to C states when it’s not 100% C-States utilized. Enable/Disable processor Turbo Mode (Requires Turbo Mode Intel Speed Step or Intel Speed Shift to be available and enabled). 4.2.3 Graphics Configuration - 19 -...
  • Page 22 Graphics Configuration Description Primary Display options include Auto, IGFX, PEG, PCI, SG mode and The Primary Display is Auto mode by default.  Auto: It means the discrete graphics is primary display.  IGFX: It means the Intel's integrated graphics is primary display.
  • Page 23 4.2.4 Trusted Computing Trusted Computing Description TPM20 Device Found TPM2.0 device information. Enables or Disables BIOS support for security device. OS will not Security Device Support show security device. TCG EFI protocol and INT1A interface will not be available. SHA-1 PCR Bank Enabled/Disabled SHA-1 PCR Bank SHA256 PCR Bank Enabled/Disabled SHA256 PCR Bank...
  • Page 24 Trusted Computing Description Select the TCG2 SPEC version support.  TCG_1_2: The compatible mode for win8/win8. TPM2.0 UEFI spec version  TCG_2: Support new TCG2 protocol and event format for win10 or later. Select to tell OS to support PPI SPEC version 1.2 or 1.3. Physical Presence Spec Version Note: some HCK tests might not support 1.3.
  • Page 25 4.2.5 CSM Configuration Advanced Menu Description compatibility support Module Configuration  Enabled: The CSM support function is enabled by default. CSM Support  Disabled. UPON REQUEST:GA20 can be disabled using BIOS services.  GateA20 Active  ALWAYS: Do not allow disabling GA20. This option is useful when any RT code is executed above 1MB.
  • Page 26 Advanced Menu Description Network ROM Boot.  Do not launch: Do not Boot. Network  UEFI: It will support UEFI mode network ROM.  Legacy: It will support legacy mode network ROM. Storage ROM Boot. Do not launch: Do not Boot. ...
  • Page 27 Pc Health Menu Description Pc Health Status It includes Full on mode Smart Fan manual mode " ", " " " ".  Full on mode. CPU Smart Fan Mode  Smart Fan: Smart Fan is enabled by default.  Manual Mode.
  • Page 28 4.2.7 OEM Configuration OEM Configuration Menu Description JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC JAHC Enable Technology Manager).  Disabled: The JAHC is disable by default.  Enabled. Wake On LAN Function. Wake On LAN Enable Disabled: The WOL is disabled by default.
  • Page 29 4.2.8 System Devices Configuration System Devices Configuration Menu Description SATA Configuration Enable/Disable SATA Device SATA Mode Selection Determines how SATA controller (s) operate. Control Detection of the HD-Audio device. HD Audio Disabled. HDA will be unconditionally disabled Enabled. HDA will be unconditionally enabled. Network Stack Enable/Disable UEFI Network Stack.
  • Page 30 4.3 Security Setup If this function is selected, the following information will appear: Enter New Password hhhhhh Then enter a password which is no more than eight characters and press <Enter>. BIOS will require to enter the password again. Once you enter it again, BIOS will save the set password. Once the password item is enabled, you will be required to enter the password every time before the system entering to the setup program of BIOS.
  • Page 31 4.4 Boot Menu Boot Item Description Boot Configuration This item is use to set the waiting time of entering the operation system. During the BIOS post, if user doesn't Setup Prompt Timeout press the keyboard, it won't respond unless you reboot the BIOS.
  • Page 32 The first boot device. If BIOS doesn't detect the first boot Boot Option #1 device, it will check the second boot device. Boot Option #2 The second boot device. Boot Option #3 The third boot device. Boot Option #4 The fourth boot device. You can set and manage legacy Hard disk device after Hard Drive BBS Priorities enabling this option.
  • Page 33 Save Exit Item Description Boot Override Whole Boot devices 5. JAHC Introduction JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). It can support following functions: 1. Automatically boot up when power on. It is controlled by the Micro Control Unit (MCU) chip. 2.
  • Page 34 b. Select Advanced- > OEM configuration- > JAHC Enable- > Enabled. FIG (1) - 32 -...
  • Page 35 Supported operation system: Windows 10 64bit, Linux 64bit. How to install JAHC software: Please download the JAHC.EXE from Giada website: www.giadatech.com, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and...
  • Page 36 click [Next] button to continue the installation. b. Click [Next] button to continue the installation. - 34 -...
  • Page 37 Select [Create a desktop shortcut] and click [Next] button. d. Click [Install] button to continue the installation. - 35 -...
  • Page 38 Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation. Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. - 36 -...
  • Page 39 5.2.3 Startup & shutdown time setup After install the JAHC software, double click the JAHC icon on taskbar and the setup menu will pop One week as a circle, maximum 3 schedules per day. Select each schedule to set up the resume time and shutdown time.
  • Page 40 You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and Instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction. - 38 -...
  • Page 41 - 39 -...
