Connections

CAUTION!
!
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code or
applicable local codes.
CAUTION!
!
The camera module is a sensitive device and must be handled
carefully. Do not drop when disassembling the unit.
2.1

Power

CAUTION!
!
Ensure that your power supply matches the rated voltage of
your camera before installing.
CAUTION!
!
Never supply power via the power connector when power is
supplied via the Ethernet connection (PoE).
10mm
A LA R M

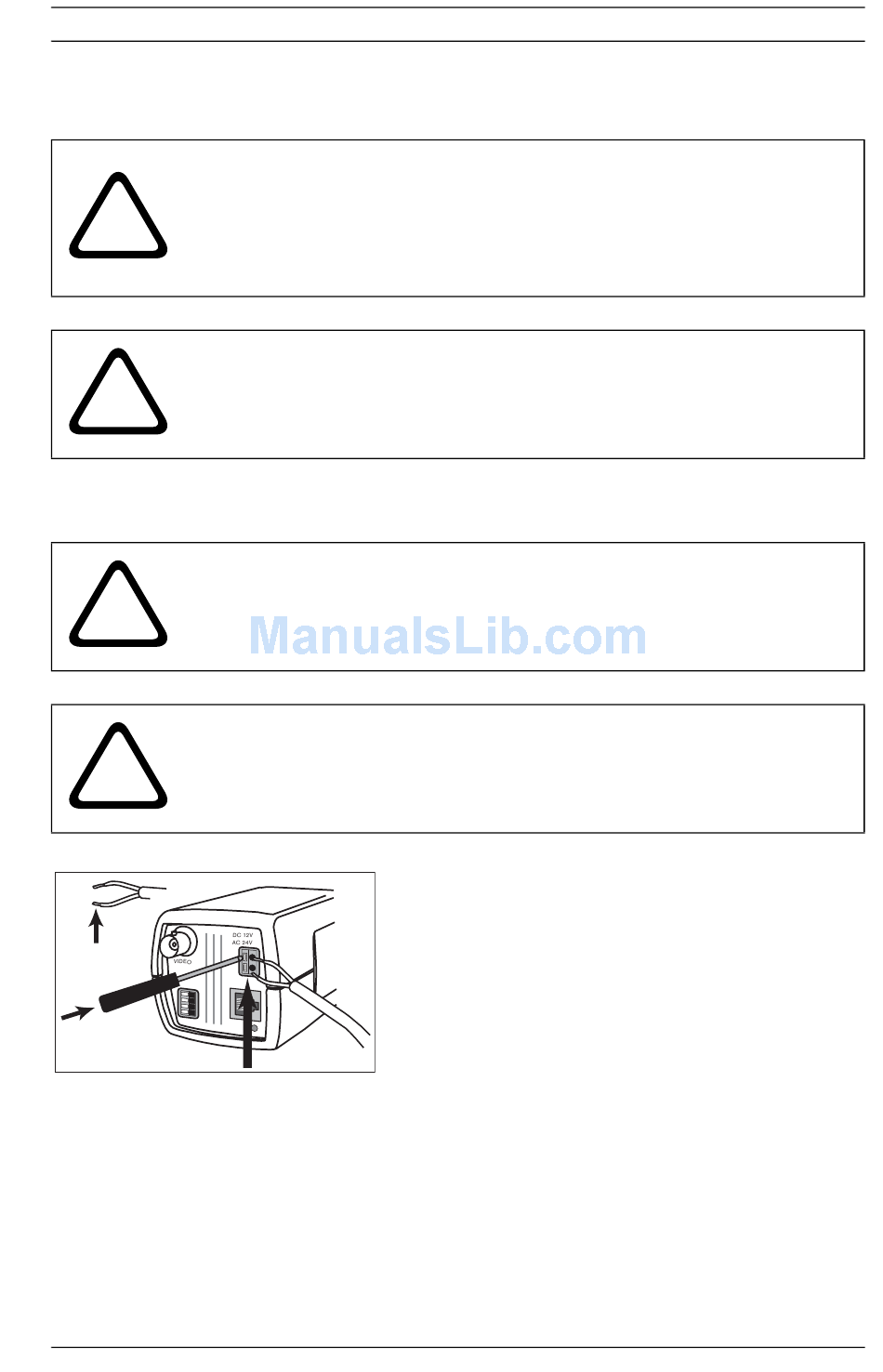

Fig. 2.1 Power connection
Bosch Security Systems
- use a class 2 power supply
- 24 VAC or 12 VDC
- push in the tabs to open the quick-connectors
(these connections are not polarity sensitive).
- use AWG16 to 22 stranded wire or AWG16 to 26
ET H
solid wire; cut back 10mm (0.4") of insulation.
Operating Instructions
