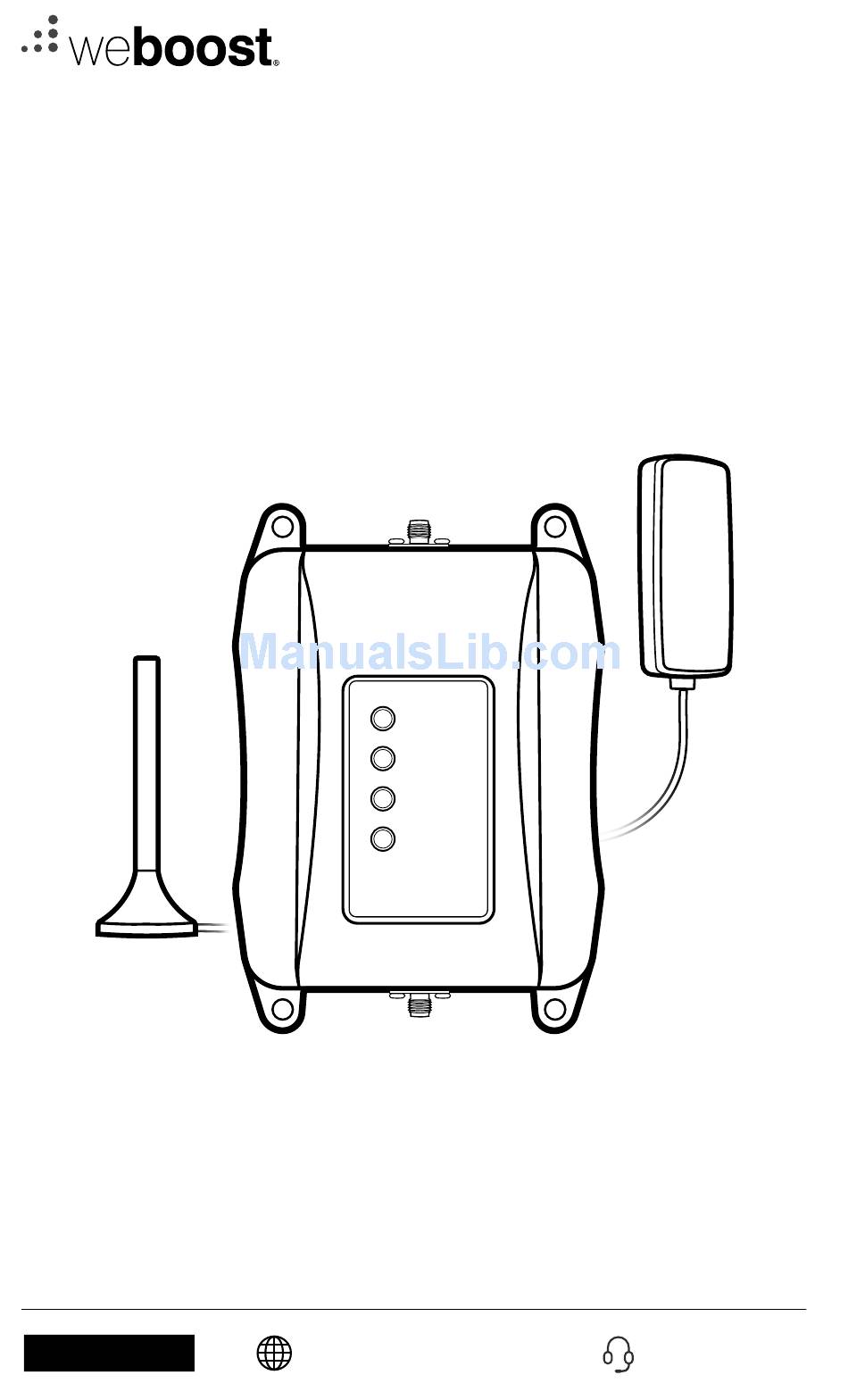

Page 1: User Manual
A WILSON ELECTRONICS BRAND DRIVE 4G-M Vehicle Signal Booster Kit User Manual support.weboost.com 866.294.1660 NEED HELP? -
Page 2: Table Of Contents
______ Index Package Contents Mount Outside Magnetic Antenna STEP 1: Mount Inside Antenna STEP 2: Connect Coax Cables To Booster STEP 3: Connect Power Supply To Booster STEP 4: Plug Power Adapter Into Vehicle’s Power Supply STEP 5: Light Patterns Troubleshooting Safety Guidelines Specifi... -
Page 3: Package Contents
________ Package Contents Outside Inside Power Booster Antenna Antenna Supply Optional: Adhesive disk for aluminum vehicles DRIVE 4G-M VEHICLE SIGNAL BOOSTER... -
Page 4: Step 1: Mount Outside Magnetic Antenna
Mount the outside antenna by placing on top of vehicle. 6 in. away from windows (including sunroofs) NOTE: For aluminum roofs, use the included adhesive disk to secure outside antenna in place. WORKS WITH ALL VEHICLES VEHICLE SIGNAL BOOSTER DRIVE 4G-M... - Page 5 Car/Sedan: Cable routed into rear side door. NOTE: When going through car wash, remember to remove your antenna. SUV/Van/Hatchback: Cable routed into top of hatchback door. Truck: Cable routed into side door. DRIVE 4G-M VEHICLE SIGNAL BOOSTER...
-
Page 6: Step 2: Mount Inside Antenna
18 inches but no more than 36 inches from where the cellular device will be used. Use the Velcro® adhesive strip/adhesive strip provided and attach to desired location. In-Vehicle V ehic Antenna Antenn In-Vehicle Antenna VEHICLE SIGNAL BOOSTER DRIVE 4G-M... -
Page 7: Step 3: Connect Coax Cables To Booster
Step 3: Connect Coax Cables To Booster Connect the cable from the Mini-Mag Mount Antenna to the port labeled “Outside Antenna” on the Drive 4G-M booster. from Outside Antenna Connect the cable from the 4G In-Vehicle Antenna to the port labeled “Inside Antenna”... -
Page 8: Step 4: Connect Power Supply To Booster
______ Step 4: Connect Power Supply To Booster Connect the power supply cord to the end of the Drive 4G-M labeled “Power.” NOTE: Do NOT connect the power to the Signal Booster until you have connected both the Inside and Outside Antennas. -
Page 9: Step 5: Plug Power Adapter Into Vehicle's Power Supply
Into Vehicle’s Power Supply Plug the power adapter into vehicle’s 12V DC power supply. Power up your Drive 4G-M by fl ipping the switch on the back of the DC power adapter on. If your Drive 4G-M is working correctly, the light on the power adapter will be red, and the light on the booster will be green. -
Page 10: Light Patterns
Refer to Troubleshooting section. Light Off If the Drive 4G-M Signal Booster’s light is off, verify your power supply has power. NOTE: The Signal Booster can be reset by disconnecting and reconnecting the power supply. -
Page 11: Troubleshooting
If you are having any diffi culties while testing or installing your booster, contact our weBoost Customer Support team for assistance (866.294.1660). FREQUENTLY ASKED QUESTIONS What hours can I contact customer support? Customer Support can be reached Monday thru Friday by calling 866.294.1660, or... -
Page 12: Safety Guidelines
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. All inside panel and dome antennas must have at least 6’ of separation distance from all active users, and low profi le antennas must have at least 1.5’ separation distance from all active users. -
Page 13: Specifi Cations
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifi cations not expressly approved by weBoost could void the authority to operate this equipment. DRIVE 4G-M VEHICLE SIGNAL BOOSTER... -
Page 14: Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material... - Page 15 Notes support.weboost.com 866.294.1660 NEED HELP? DRIVE 4G-M VEHICLE SIGNAL BOOSTER...
- Page 16 3301 East Deseret Drive, St. George, UT 866.294.1660 www.weboost.com support.weboost.com Copyright © 2017 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000065_Rev02_05.2.18...
