ANTAIRA STE-6104C-T-V2 Quick Installation Manual

Antaira Technologies
STE-6104C-T-V2
4-Port Industrial Serial RS232/422/485 to Ethernet Device
Server, with Dual LAN; EOT: -40°C to 85°C; Version 2 Hardware
Quick Installation Guide
Version 1.0
(March 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
1. P
ACKAGING
The package contains the following items:
STE-6104C-T-V2
Quick Installation Guide
7-pin Terminal Block
2 H D
ARDWARE ESCRIPTION

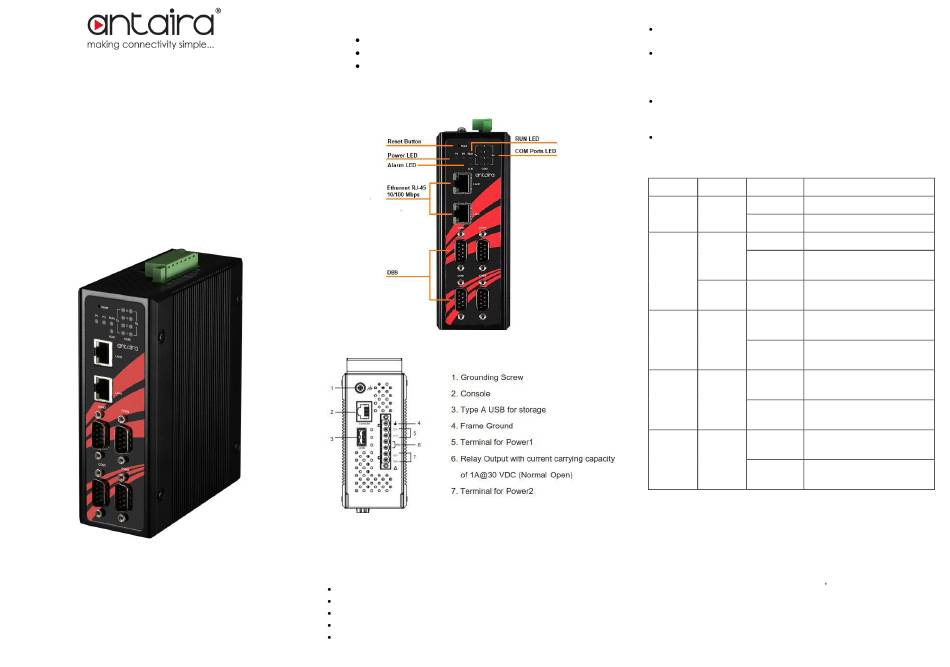

Front Panel Layout
Top Panel View
Product Overview
System Interface/Performance
15KV ESD Protection for serial signals
Ethernet connectivity 2*10/100Tx RJ45 ports
Store-and-forward switching architecture
4-Port RS232/422/485, Baud Rate up to 921 Kbps
Power port EFT protection: 2,000VDC; Single port ESD
Protection: 2,000VDC
Power Input & Connection
DC 12 to 48V redundant power, with a 7-pin removal
terminal block
It is recommended to use a UL listed industrial power
supply

Operating Temperature

Extended operating temperature model: -40°C to 85°C

Case/Installation

IP30 protection / DIN-Rail mount design

LED Indicators:

Name Color Status
Off Power is not connected
P1 / P2 Green
On Power is connected
Off Ethernet Disconnected
Green
Data is transmitting on
Blinking
LAN Ethernet for 100Mbps
Data is transmitting on
Orange Blinking
Ethernet for 10Mbps
No data is transmitting on
Off
COM port
COM Green
Data is transmitting on
Blinking
COM port
System is not ready or
Off
halt
RUN Green
AP firmware is running
Blinking
normally
Alarm is triggered by user
On
defined events
ALM Red
Alarm is not triggered by
Off
user defined events

Installation Procedures:

Step 1: Connect the STE-6104C-T-V2 to a power source.
Step 2: Connect the STE-6104C-T-V2 to the Ethernet network.
Use a standard straight-through or cross-over Ethernet
cable. Always make sure the PC is on the same network
subnet as the STE-6104C-T-V2.
Step 3: Connect the STE-6104C-T-V2 s serial port to a serial
device.
Step 4: Mount the STE-6104C-T-V2 to a DIN-Rail.
Description
