Everfit TFK 500 EVO Instruction

Hide thumbs

Advertisement

Quick Links

INSTRUCTION
Ed : 03/17
Rev : 00

Advertisement

loading
Need help?

Need help?

Do you have a question about the TFK 500 EVO and is the answer not in the manual?

Questions and answers

Related Manuals for Everfit TFK 500 EVO

Summary of Contents for Everfit TFK 500 EVO

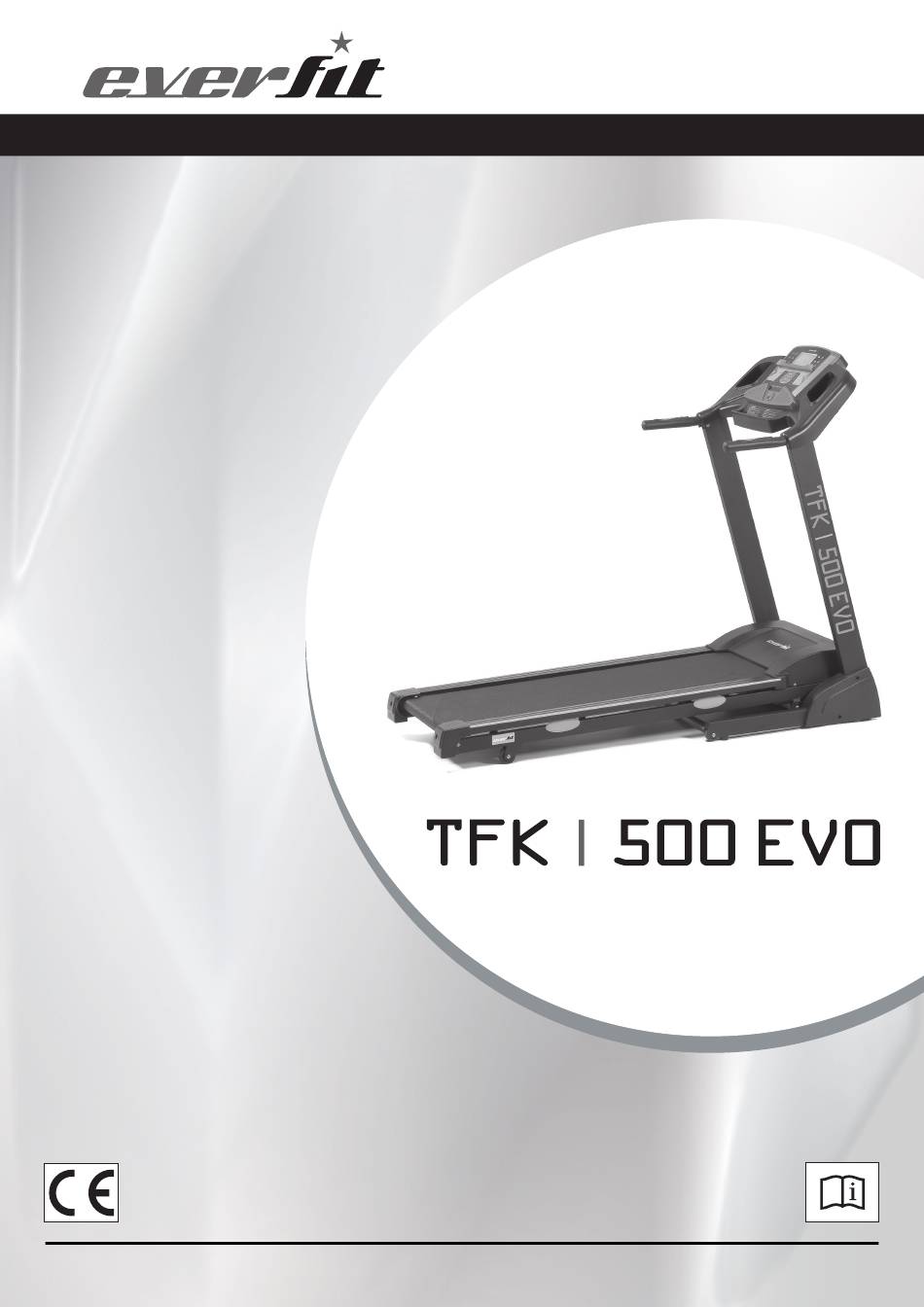

  • Page 1 INSTRUCTION Ed : 03/17 Rev : 00...

  • Page 2: Table Of Contents

    CONTENT CONTENT -------------------------------------------------------------------------------------------------------------------------------- IMPORTANT SAFETY PRECAUTIONS -------------------------------------------------------------------------------------2 TECHINICAL PARAMETERS-------------- -------------------------------------------------------------------------------------3 PRODUCT OVERVIEW -------------- ---------------------------------------------------------------------------------------------3 ASSEMBLY INSTRUCTIONS ----------------------------------------------------------------------------------------------------4 FOLDING & UNFOLDING INSTRUCTIONS -------------------------------------------------------------------------------7 GROUNDING METHODS -----------------------------------------------------------------------------------------------------------8 OPERATION GUIDE -------------------------------------------------------------------------------------------------------------------9 GETTING STARTED GUIDE -----------------------------------------------------------------------------------------------------14 WARM-UP EXERCISES ------------------------------------------------------------------------------------------------------------15 SAFETY EXERCISES ---------------------------------------------------------------------------------------------------------------16 MAINTENANCE INSTRUCTIONS ---------------------------------------------------------------------------------------------17 BELT ADJUSTMENT ----------------------------------------------------------------------------------------------------------------18...

  • Page 3: Product Overview

    Technical Parameters Working temperature: 0-40 Input supply voltage：220V Speed range: 0.8-16KM/H Incline range:12 levels of Motor incline Max. user weight: 110kg Distance display range: 0.00-99.9km Calories display range: 000-999 Time display range: 00：00-99：59 (min : sec) Heart rate range: 50-200 (time / min) Running surface: 420*1300mm Product size: 1700*710*1380MM Folding size: 900*710*1510MM Product Overview...

  • Page 4: Assembly Instructions

    Assembly instruction WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS: STEP 1: Take out and prepare the below parts Main frame 1 set D17 Inner star washer M8 D13 Round hex head bolt C13 Safety key 1 PC 8PCs M8*15 4PCs D3 Allen wrench...
  • Page 5 STEP 3: Secure bottom frame with bolt M8*45（D16）, M8*15 (D13) and i (D17). nner star washer Then assemble the handrail/console bracket with bolt M8*15 (D13) and (D17). inner star washer Step 4: Tighten the left/right side covers (B11L/R) with cross self-tapping bolt with washer ST4.2*19 (D48).
  • Page 6 Step 5: Place on the safety key (C13). Step 6: To check if the running belt runs correctly, placing treadmill in folding position and tightening all the bolts. Then set speed under 3km/h and see if running belt runs without problem.
  • Page 7 Folding Instruction Lift up the machine and force to pull up until you heard "click" that made by safety casing stuck the pneumatic cylinder. Unfolding instruction Kick the safety sleeve lightly and pull down the machine at the same time as the arrow direction. Then the machine will fall down smoothly.

  • Page 8: Operation Guide

    Operation Guide WINDOW DISPLAY 1.1. 1.1. Console 1.2. START Normal start after 5 seconds countdown 1.3 PROGRAM 3 countdown functions, 12 sets of programs , 1 body fat program, 3 HRC programs with Polar receiver 1.4. SAFETY LOCK FUNCTION The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi" alarm noise.
  • Page 9 1.5.2 “PROGRAM” BUTTON When the treadmill is not running, press this button can choose from program circle mode to manual mode (P1-P12, FAT, HC1-HC3). The lowest speed for manual mode is “0.8km/h”, and the highest speed is “16km/h”; the lowest incline is “0”, and the highest is “12”. 1.5.3 “MODE”...
  • Page 10 Display pulse data 1.6.5 DISTANCE Display the running total distance or distance countdown. 1.6.6 CALORIES Display the calorie or calorie countdown 1.6.7 ALL WINDOW DISPLAY DATA RAGNE TIME：0:00 – 99.59(MIN) DISTANCE: 0.00 – 99.9(KM) CALORIES: 0.0 – 999 (C) SPEED:0.8 -16.0 (km/h) INCLUDE: 0-12% PULSE: 50 –...
  • Page 11 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 1.9 3 COUNTDOWN FUNCTION PARAMETER DATA Countdown time initial setting 10：00 minutes，setting range 5：00---99：00 minutes , each step 1：00. Countdown calorie initial setting 50therm, setting range 20---990 therm，each step 10. Countdown distance initial setting 1.0km，setting range 1.0---99.0 km，each step 0.1 Cycle switch order is: manual, time, distance, calories.
  • Page 12 FAT = (25---29) Over weight FAT ≥30 Obesity 1.11 HRC Program There are 3 HRC programs (HRC1-HRC3) in total. The parameter data setting order is “AGE” -> “THR(HRC) data” -> “TIME”. HRC: Detect user’s actual heart rate through wireless receiver and set different the heart rate data as goal to adjust speed and incline during running.
  • Page 13 SPEED will increase 0.8KM/h and incline add 1 section until they reach the max. data (2). If THR-5>Target heart rate >=THR-15,then the speed and incline will adjust automatically every 15 second, the SPEED will increase 0.4KM/h and incline add 1 section until they reach the max. data (3).

  • Page 14: Exploded Drawing

    Exploded Drawing Parts list...

  • Page 15: Parts List

    Parts List A. Welding parts Description Description Incline bracket Main frame Base frame Filter bracket Motor base Left upright Right upright Handrail bracket B. Plastic parts Description Description Console set Motor upper cover B1-1 Overlay Motor lower cover B1-2 Membrane key Side rail B1-3 Console...
  • Page 16 Drive belt Magnetic ring Power switch Inductor Controller Filter Button for left handrail Single cord Button for right handrail D. Hardware parts Description Description Allen wrench 13-15-17 Hex round head bolt M6X45 Screw driver T5 Hex round head bolt M6X60 Round hex head bolt M10X30 Hex round head bolt M8X20 Round hex head bolt M10*45...
  • Page 17 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.everfit.it - info@everfit.it...
