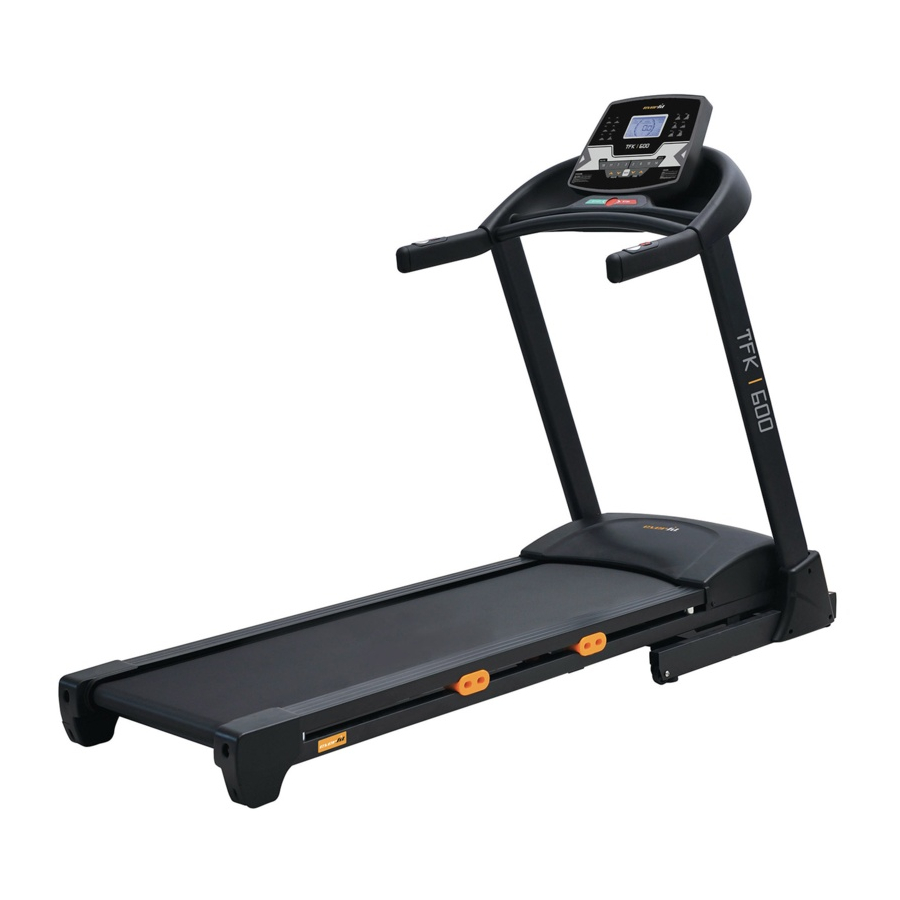

Summary of Contents for Everfit TFK 600

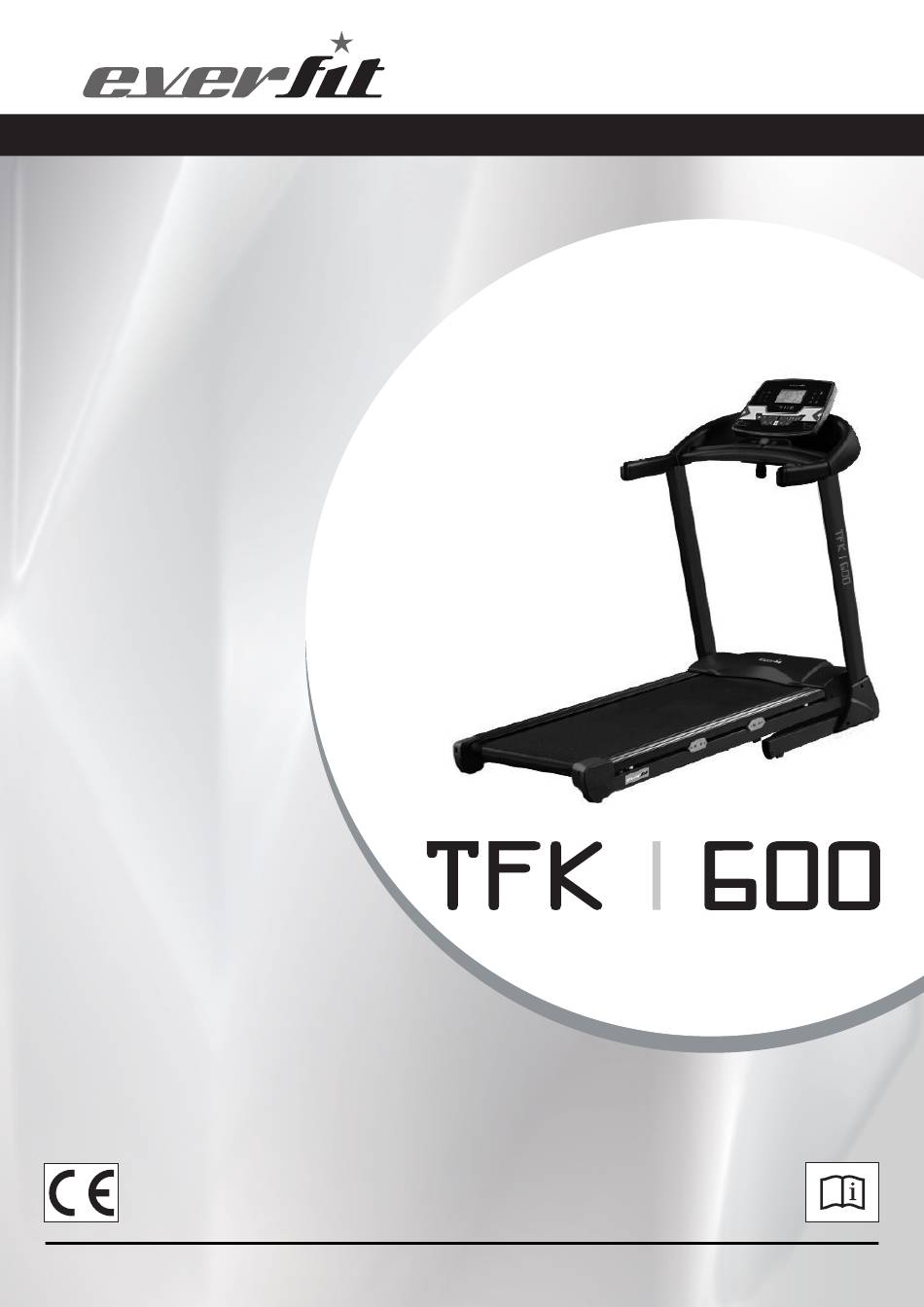

- Page 1 INSTRUCTION Ed : 09/17 Rev : 00...
-
Page 2: Exploded Drawing
EXPLODED DRAWING PARTS LIST PART NO PART NAME Q'TY - 5 -... - Page 3 Computer frame Left upright Right upright Base frame Incline frame Running platform Computer panel Down cover of Computer panel Up cover of computer Back cover of computer Foam 30*60 Elliptical tube plug Fixed base of incline shortcut key Button of shortcut key Fixed base of speed shortcut key Safety key Left protective cover of upright...
- Page 4 Motor Frame of speed sensor Speed sensor Fix base of motor Magnet ring Filiter Motor control board 40*40 rectangle tube plug ∮24 stopple plug Power wire cushion Power wire Fuse Power switch Rubber cushion of motor 4.2*15 Screw 4.2*60 Screw M8*20 Allen head bolt M8*30 Allen head bolt Ф8 Arc Washer...
-
Page 5: Hardware Comparison Chart
Ф6 washer M6 Nylon nut M8*65 Allen head bolt Support cushion of running deck 4.2*15 Screw Side rail cushion M8*85 Allen head bolt M8*50 Allen head bolt ∮5 washer M5*10 bolt 2.9*6 Screw M8*20 Allen head bolt Ф8 Spring washer M8*12 bolt M8*60 Allen head bolt 4.2*12 Screw... - Page 6 ASSEMBLY INSTRUCTIONS: WARNING: Please put on all the screws, washers and bolts then tighten them. ATTENTION: Be careful when you connect the two console-controller wires. There are pins inside connector, the pins must be straight, and otherwise it will cause problems. STEP1: First make...
- Page 7 STEP2: 1. First make sure to connect the Computer Control wire and Control wire of upright. 2. Then fix the computer on the uprights with M8*20 Allen head bolt 55、M8*30 Allen head bolt 56 andФ8 Arc Washer 57. STEP3: Fix the left and right protective cover onto uprights with 4.2*15 Screw 53.
-
Page 8: Computer Operation
To unfold the treadmill: 1. Strike the damper by feet. (as shown by the arrow on the left side). 2. Hold the top end covers (as shown by the arrow on top left) and pull the treadmill slowly down onto the ground. To fold up the treadmill: Hold the bottom end covers (arrows showing in the left and right side) and lift the treadmill. -
Page 9: Heart Rate Instruction
Panel layout OPERATION INSTRUCTION KEY INSTRUCTION： START: Press this key to start treadmill. STOP: Press this key to stop treadmill. MODE: Press this key to choose the manual, countdown of time or the countdown of distance or the countdown of calories or P1-P2…..-P12 cycle selection. SPEED+: Press this key to increase speed or time or distance or calorie value. - Page 10 In the case of a powered treadmill, his hands holding the steel disc of left &right handrail, in order to obtain more accurate heartbeat value, standing on the treadmill and when the treadmill stop to measurement, and holding time is not less than 30 seconds. Display range: 50-200 beats / min. This data is for reference only, not as medical data PROGRAM SECTION...
- Page 11 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.everfit.it - info@everfit.it...
