Summary of Contents for Everfit TFK350

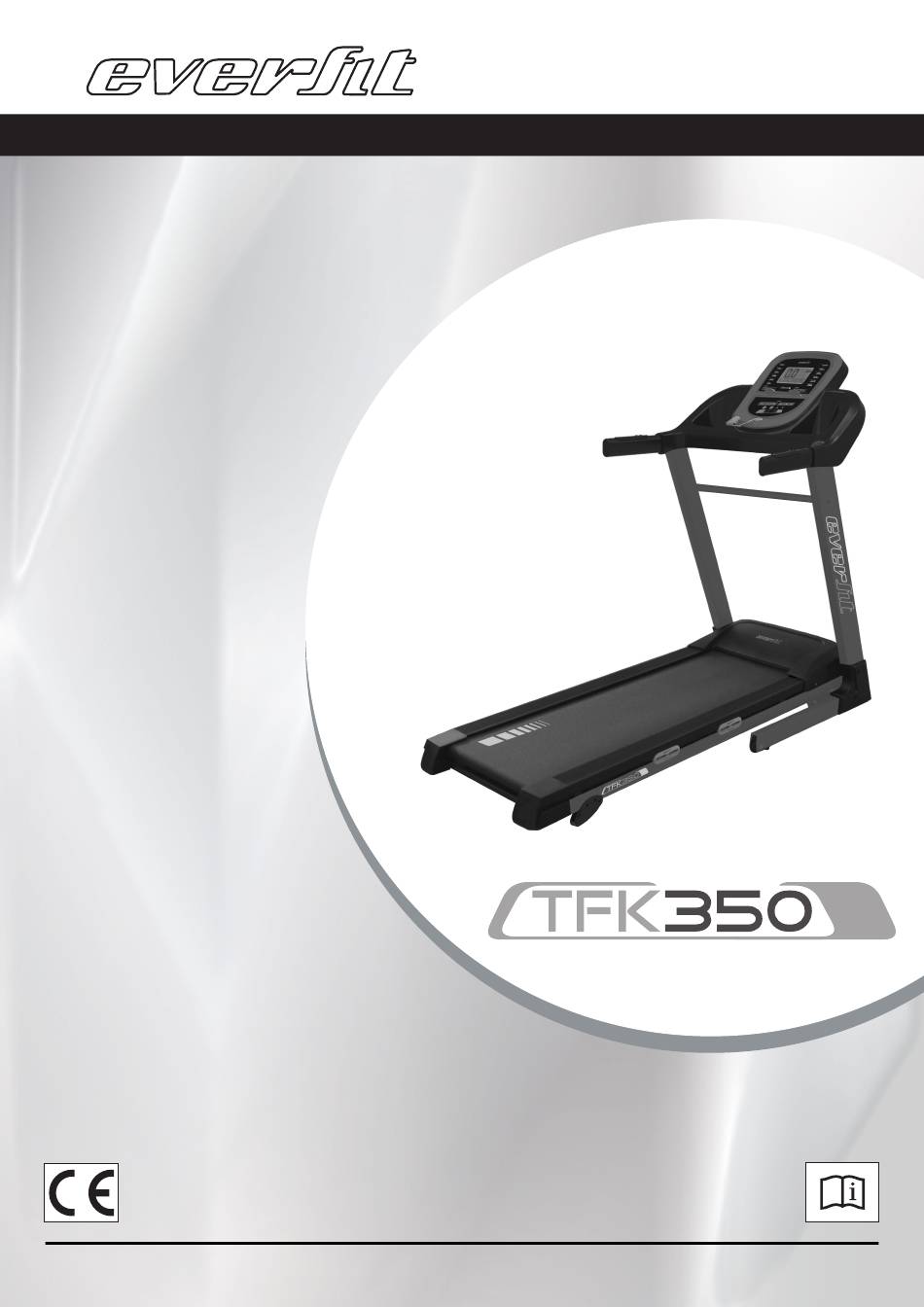

  • Page 1 INSTRUCTION 11/19 Rev : Cod : GRLDEVEFTFK350...
  • Page 2: Exploded Drawing

    EXPLODED DRAWING...
  • Page 3 PARTS LIST PART NO PART NAME Q'TY MOTOR COVER FRONT ROLLER RUNNING BELT REAR ROLLER RUNNING DECK MOTOR BELT MOTOR SPEED SENSOR FRAME SPEED SENSOR MOTOR FIXED FRAME LEFT SIDE RAIL RIGHT SIDE RAIL CONSOLE FRAME CONSOLE MAIN BODY CONSOLE SMALL PANEL SILICA GAS CUSHION DECK FIX CUSHION FRONT TUBE PLUG OF RUNNING PLATFORM...
  • Page 4 UPRIGHTS PROTECT COVER RIGHT UPRIGHT LEFT UPRIGHT SHORTCUT KEY SHROTCUT WIRE BOARD FOAM SHORT KEY PRESS HANDLEBAR TUBE PLUG SAFETY KEY ST4.8*16 SCREW M8*85 ALLEN HEAD BOLT φ8 WASHER M8*65 ALLEN HEAD BOLT ST4.2*15 SCREW SIDE RAIL CUSHION 5/32 BOLTS 5/32 NO-SLIP WASHER ST2.9*8 SCREW M8*70 ALLEN HEAD BOLT...
  • Page 5: Hardware Comparison Chart

    φ8 ARC WASHER HARDWARE COMPARISON CHART For your convenience, we have identified the hardware used in the assembly of this product. The chart below is provided to help you to identify items that may be unfamiliar to you. DESCRIPTION Q'TY ST4.2*15 SCREW M8*20 ALLEN HEAD BOLT M10*20 ALLEN HEAD BOLT...
  • Page 6 ASSEMBLY INSTRUCTIONS WARNING: Please put on all the screws, washers and bolts then tighten them. STEP1: First make connect communication cable. Then fix the uprights on the base frame with M10*20 ALLEN HEAD BOLT 77 and Φ10 WASHER 78.. STEP2: First make connect...
  • Page 7 STEP3: Fix the Upright protective cover on the uprights with ST4.2*15 SCREW Folding illustration: Folding illustration: To drop down treadmill: 1. Strike the damper. 2. Hold on to the top end covers and pull down the treadmill slowly on the ground.
  • Page 8: Computer Operation

    To fold up treadmill: Both hands hold on the bottom end covers and lift up the treadmill. COMPUTER OPERATION Panel layout TIME CALORIES PULSE SPEED DISTANCE...
  • Page 9 The Operation 1.Window description: The LCD window functions as follows 1, "TIME" window: show the movement time. 2, "DIST." Distance window: shows the distance of movement 3, "CA L" calorie window: show the movement of calories consumed 4. "PULSE" Display Pulse Value 5, "SPEED"...
  • Page 10 down countdown. The corresponding window displays the default value and blinks. Press "SPEED ▲ / ▼" at this time to adjust to the desired value. Press the START key, after 5 seconds countdown, the treadmill from the lowest speed start running, press SPEED ▲ / ▼ and speed shortcut keys to adjust the speed, press INCLINE ▲, ▼...
  • Page 11 3, user-defined program settings Description: Each program will be divided into 20 time periods, set to complete all 20 time periods of speed and slope and run time settings, in order to start the treadmill by start button. 4. In the course of the operation can be "SPEED +", "SPEED -" to adjust the speed, when the end of a section of the operation, automatically enter the next section of the operation, the speed automatically adjusted for the set value.
  • Page 12 6.Security lock function Any time the security lock is disconnected, the treadmill stops quickly and all data is cleared. All windows display "---". All normal operation and operation must be carried out with the safety lock closed。 7、Built-in program data table Period set the time / 20 time periods = up and down time of the run time Program...
  • Page 13 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.everfit.it - info@everfit.it...
