Summary of Contents for Everfit TFK I 250 EVO

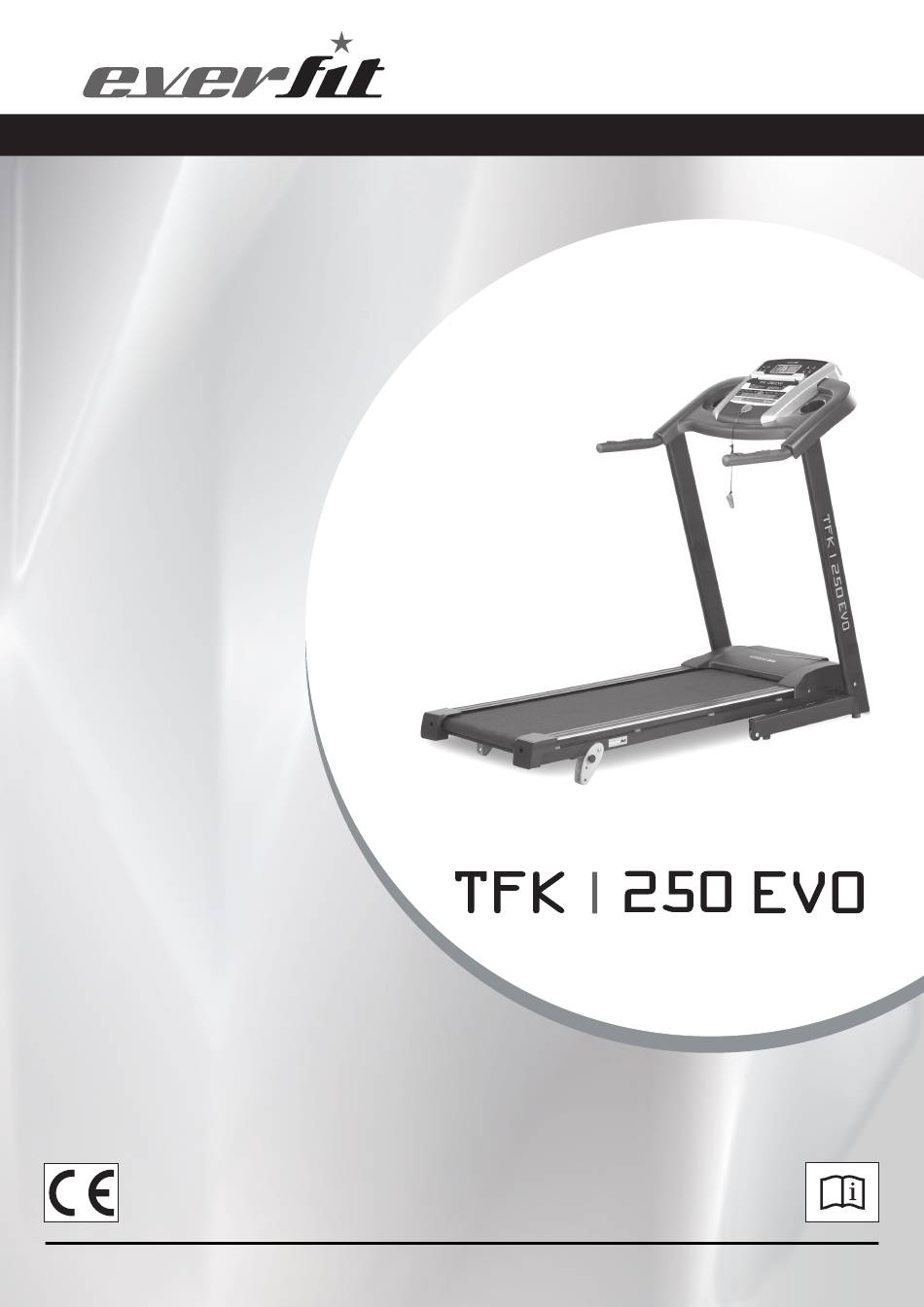

  • Page 1 INSTRUCTION Ed : 03/17 Rev : 00...
  • Page 2: Technical Parameters

    Technical Parameters Working temperature: 0-40 ℃ Input supply voltage:220V Speed range: 0.8-14KM/H Incline range: 3-section manual incline Max. user weight: 100kg Distance display range: 0.00-99.9km Calories display range: 000-999 Time display range: 00: 00-99: 59 (min : sec) Heart rate range: 50-200 (time / min) Running surface: 400*1200mm Product size: Folding size:...
  • Page 3: Assembly Instruction

    Assembly instruction WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS: STEP 1: Take out and prepare the below parts Main frame 1 set D17 Inner star washer M8 Round bolt C13 Safety key 1 PC 10 PCs M8*15 10 PCs D3 Allen wrench B18 Silicon oil...
  • Page 4 STEP 3: Connect upper cable (C16) and connecting cable (C18), and then place the handrail/console bracket on the left/right uprights (A3L/A3R) with bolt M8*15 (D13) and inner star washer (D17). Step 4: Place on safety key (C13) and water bottle holder (B49). Step 5: To check if the running belt runs correctly, placing treadmill in folding position and tightening all the bolts.
  • Page 5: Folding Instruction

    Folding Instruction Lift up the machine and force to pull up until you heard "click" that made by safety casing stuck the pneumatic cylinder. Unfolding instruction Kick the safety sleeve lightly and pull down the machine at the same time as the arrow direction.
  • Page 6 Operation Guide WINDOW DISPLAY 1.1. 1.1. Console 1.2. START Normal start after 5 seconds countdown 1.3 PROGRAM 12 pre-set programs, 1 body fat program , 3 countdown function 1.4. SAFETY LOCK FUNCTION The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi" alarm noise.
  • Page 7 1.5.3 “MODE” BUTTON When the treadmill is not running, press this button to choose countdown modes:”H-1”,”H-2”,”H-3”. H-1” is the time countdown mode, and “H-2” is the distance countdown mode, “H-3” is the calories countdown mode. Press the “SPEED+/-” button to adjust the data. After that, press the “START” button to start this treadmill 1.5.4 “SPEED +/- “BUTTON SPEED +/–...
  • Page 8 PULSE: 50 – 200 (BPM) 1.7 PULSE FUNCTION When the treadmill is running, hold the hand pulse about 5 seconds, it will display pulse data. The pulse data range is 50-200 times/ minute. It has heart-shaped graphics when testing pulse. This data is only for reference, can not be as medical data.
  • Page 9 The body quality index is to test the relation between height and weight not the body scale. The body FAT suits for any male and female to adjust the weight according together with other body quality index. The ideal FAT should be between 20-25, if under 19, it means too thin. If between 25 and 29, it means overweight, if over 30, it means obesity.
  • Page 10: Exploded Drawing

    Exploded Drawing...
  • Page 11: Parts List

    Parts list A. Welding parts Description Description Main frame Handrail/console bracket Filter bracket Base frame Motor bracket Left upright Right upright B. Plastic parts Description Description Console set B16L Left end cap B1-1 Overlay B16R Right end cap B1-2 Membrane key Silicon oil B1-3 Console...
  • Page 12: Hardware Parts

    Left handrail button Single cord Right handrail button D. Hardware parts Description Description Allen wrench T5 Hex round head bolt M8X20 Round hex bolt M10*50 Hex round head bolt M8X45 Cross head bolt M4X20, Round hex bolt M8X15 washer Cross head bolt M5X12, Round hex bolt M8X30 washer Cross head bolt M5X15,...
  • Page 13 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.everfit.it - info@everfit.it...
