Summary of Contents for Everfit TFK655 SLIM

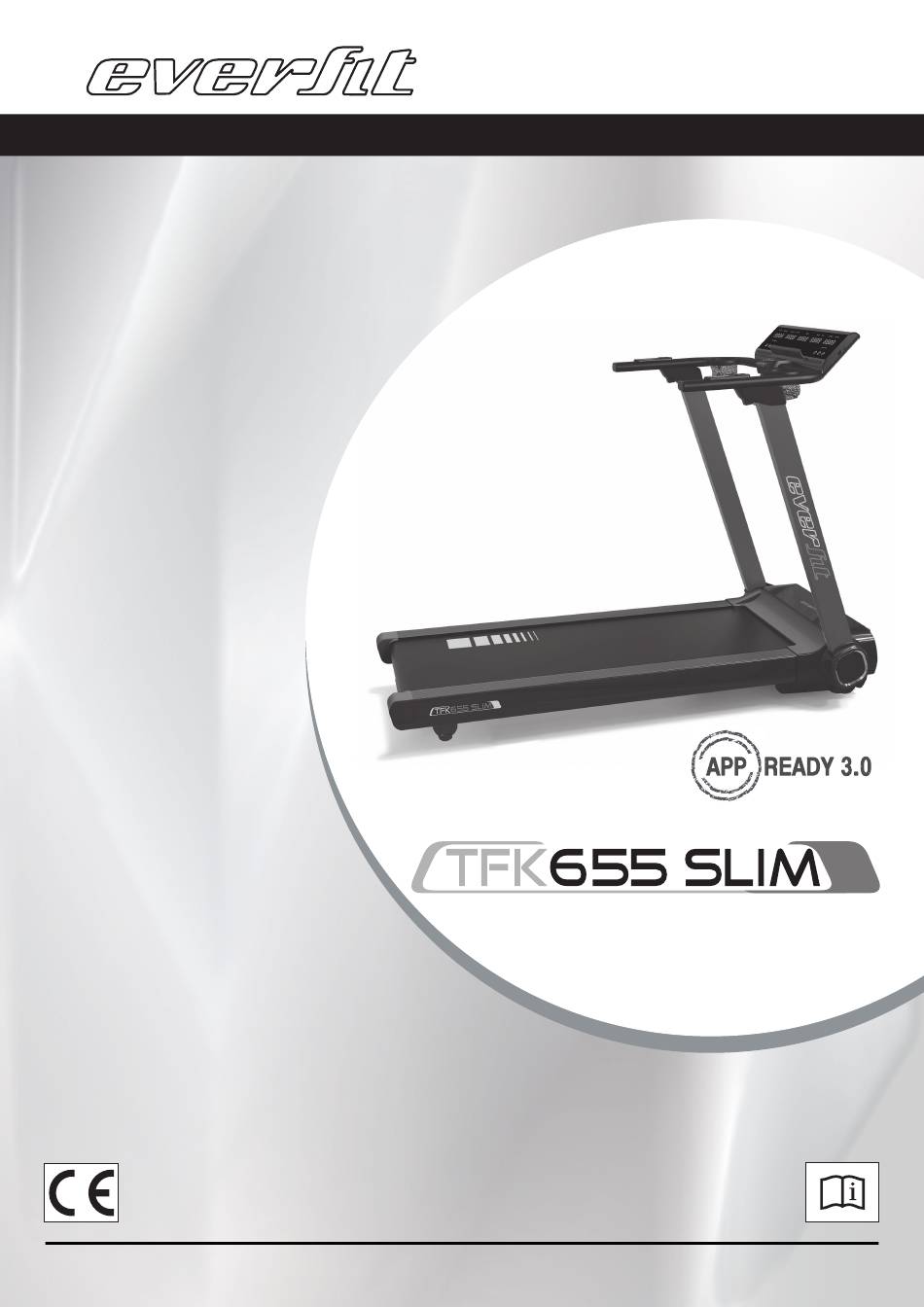

- Page 1 INSTRUCTION Ed : 07/20 Rev : Cod : GRLDEVETFK655S...
-
Page 2: Dimension Data
DIMENSION DATA Power Circuit： 220V~AC Use in temperature：0-40℃ Real Speed：0.8-16KM/H Incline：12 sections of motor incline Max user weight ：110kg Distance range：0.00-99.9km Calories：0-9999 Kcal Time range：00：00-99：59（min） Heart rate range：60-200 bpm Running face：450*1300mm Set up size：1660*730*1250mm Folding size：1660*730*260mm PRODUCT DESCRIPTION Tablet Holder Handrail Console Bottle... - Page 3 ASSEMBLY INSTRUCTIONS ATTENTION: Do the following operations after checking all screws are tightened and everything is OK. Before you use the treadmill, please read the instructions carefully. Move out the treadmill unit from the packaging box, and place it on the flat STEP 1：...
- Page 4 STEP 3: Hold left and right #A4 Handlebar and push it down until hearing a “clock” sound for lock it into position. Rotate the #B1 Console to the appropriate reading angle. STEP 4: Plug in the #C15 Power Cord and insert the #C13 Safety Key.
- Page 5 STEP 5: After installation, press start button, adjust speed level under 3km/h. Then check the running belt to see if it runs smoothly or not. The tightness level is decided based on the situation of slippery and deviation (Please refer to “MAINTENANCE INSTRUCTIONS “).
-
Page 6: Folding Instruction
FOLDING INSTRUCTION STEP 1: Rotate the #B1 Console backward to be horizontal with #A4 Handlebar. STEP 2: Slightly push down the #A4 Handlebar and press #B100 Folding Button at the same time. Once the #A4 Handlebar is un-locked, rotate it back to attach #A3L/ #A3R Uprights. - Page 7 STEP 3: Step down #A44 Pedal Lever for auto folding process until #A3L/ #A3R to be horizontal with running deck. STEP 4: Hold #A1-H Lift Handle for transportation or lift one end of treadmill up to standing position. A1-H Figure A. Figure B.
- Page 8 STEP 5: Place treadmill at standing position against wall for storage, or place it under the bed for space saving. The height of treadmill is 26cm. If the space is less than 26cm under your bed, please keep it somewhere else for storage. Standing Position Storage Against Wall Place Under Bed...
-
Page 9: Program Button
Operation Guide 1.1 WINDOW DISPLAY 1.2. START Normal start after 3 seconds countdown 1.3 PROGRAM 1 manual mode, 3 countdown mode, 1 body fat program, 12 preset programs, 3 Users, and 3 HP programs 1.4 SAFETY KEY FUNCTION The window shows"---" when you take away the safety lock and the treadmill will stop quickly with "didi"... -
Page 10: Mode Button
1.5.3 “MODE” BUTTON When the treadmill is not running, press this button to choose between countdown modes: Time, Distance, and Calories, press the Right/Left Quick Buttons on handrail “SPEED+/-” or “INCLINE+/-“ to adjust the data. After that, press the “START” button to start this treadmill. 1.5.4“SPEED +/-“BUTTON SPEED +/–, Adjust speed when treadmill start, the increment is 0.1km/time in kilometer. - Page 11 1.6.4 INCLINE/ALTITUDE Display the current incline level Display altitude you have ran, it is based on your incline level and how far you ran will show your MTS Altitude. Display will switch every 5 seconds. 1.6.5 PULSE/DISTANCE Display your pulse data. Display your total running distance or countdown distance.
- Page 12 1.8 PROGRAM EXERCISE CHART SET TIME / 10= EVERY GRADE TIME TIME MODE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE...
-
Page 13: Manual Mode Operation
1.9 MANUAL MODE OPERATION 1.9.1 Press start key, time count down 3 seconds, then treadmill will start to work with initial speed0.8km/h 1.9.2 Press speed +/-, you can adjust the speed 1.9.3 Press incline+/-, you can adjust the incline 1.9.4 Press stop/pause, you can pause/stop treadmill at working state 1.9.5 Press quick speed key, you can quickly adjust the speed you want 1.9.6 Press quick incline key, you can quickly adjust the incline you want 1.10 COUNTDOWN FUNCTION PARAMETER DATA... - Page 14 ≤19 05 FAT Under weight = (20---25) Normal weight = (25---29) Over weight ≥30 Obesity 1.12 USER PROGRAM Besides 12 preset programs, there have 3 user-defined programs: U1, U2 and U3 Each user program has 10 segments. The user can set the desired speed and incline . Press "PROGRAM"...
- Page 15 need to be changed for physical health condition.) Formula is calculated as below: HP1 is T.H.R =(220-age)x70%, Fastest speed 8KM HP2 is T.H.R =(220-age)x80%, Fastest speed 9KM HP3 is T.H.R =(220-age)x90%. Fastest speed 10KM After finishing the setting of HRC data, user can press “MODE” key to modify the time. When “TIME”...
- Page 16 1.15 OTHERS 1.15.1 The system will enter into power saving mode automatically if there is no any action within 10 minutes under IDLE MODE and there is no display and backlight on the computer. Press any key to resume the system. 1.15.2 Countdown time, countdown calorie and countdown distance, you can only set one of them at a time.
- Page 17 1.17 USB-Bluetooth App The USB Slot on the side is meant for USB Bluetooth dongles. Treadmill is written to be able to be compatible with Bluetooth dongle...
-
Page 18: Maintenance Instruction
MAINTENANCE INSTRUCTION WARNING：Please make sure pull out the treadmill's power plug before cleaning or maintaining the product. CLEANSING：General cleaning or the unit will greatly prolong the treadmill's life. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails. -
Page 19: Belt Adjustment
BELT ADJUSTMENT Place treadmill on a level surface. Make treadmill run at approximately 6-8 km/h, observe the running belt deviate condition. If the belt has drifted to the right, unplug the safety lock and power switch, and turn the right adjusting bolt 1/4 turn clockwise, then insert the power switch and safety lock, make the treadmill running, observe the running belt deviate condition. -
Page 20: Exploded Drawing
EXPLODED DRAWING... -
Page 21: Parts List
PARTS LIST A. Welding and Metal Parts DESCRIPTION Main Frame Left Upright Right Upright Handlebar Incline Bracket Filter Bracket Deck Support Tube Motor Base Belt Guide Bracket Handrail Folding Joint Bracket Safety Key Pin Pedal Lever Bracket A39L Left Bottom Hook A39R Right Bottom Hook A40L... - Page 22 B. Plastic Parts DESCRIPTION Console Set B1-1 Overlay B1-3 Console B1-5 Tablet Holder Console Cover Console Back Cover Side Cover Motor Upper Cover Motor Bottom Cover Side Rail B16L Left End Cap B16R Right End Cap Transportation Wheel Deck Cushion Round Shape Cushion Rubber Pad EVA Pad (for Tablet Holder)
- Page 23 B100 Folding Button B101 Transportation Wheel Cover B102L Left Inner Side Cover 1 B102R Right Inner Side Cover 1 B103L Left Inner Side Cover 2 B103R Right Inner Side Cover 2 B104 Second Transportation Wheel B105 Rear Leg Support Cushion B106 Rear Leg Support Cover B107...
- Page 24 Overload Protector Single Cable 300 (Blue) Short Single Cable 150 (Brown) Short Single Cable 150 (Blue) Grounding Wire Power Switch Cylinder D. Hardware Parts DESCRIPTION Allen Wrench T6 Round Head Hex Bolt M10X65 Round Head Hex Bolt M10X45 Round Head Hex Bolt M8X15 Round Head Hex Bolt M8X45 Nylon Nut, M10 Nylon Nut, M8...
- Page 25 Countersunk Head Hex Bolt M8X15 Socket Head Cap Bolt M8X25 Socket Head Cap Bolt M8X12 Washer, M8 Cross Pan Head Self-drilling Tapping Bolt bolt ST4.2X19 Extension Spring Compression Spring D121 Console Compression Spring D123 C Ring ∮ D124 C Ring ∮...
- Page 26 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.everfit.it - info@everfit.it...
