INSTRUCTION
Ed : 01/13
Rev : 00
Codice :
GRLDEVEFTFKMAG

Advertisement

loading
Need help?

Need help?

Do you have a question about the TFK 100MAG and is the answer not in the manual?

Questions and answers

Summary of Contents for Everfit TFK 100MAG

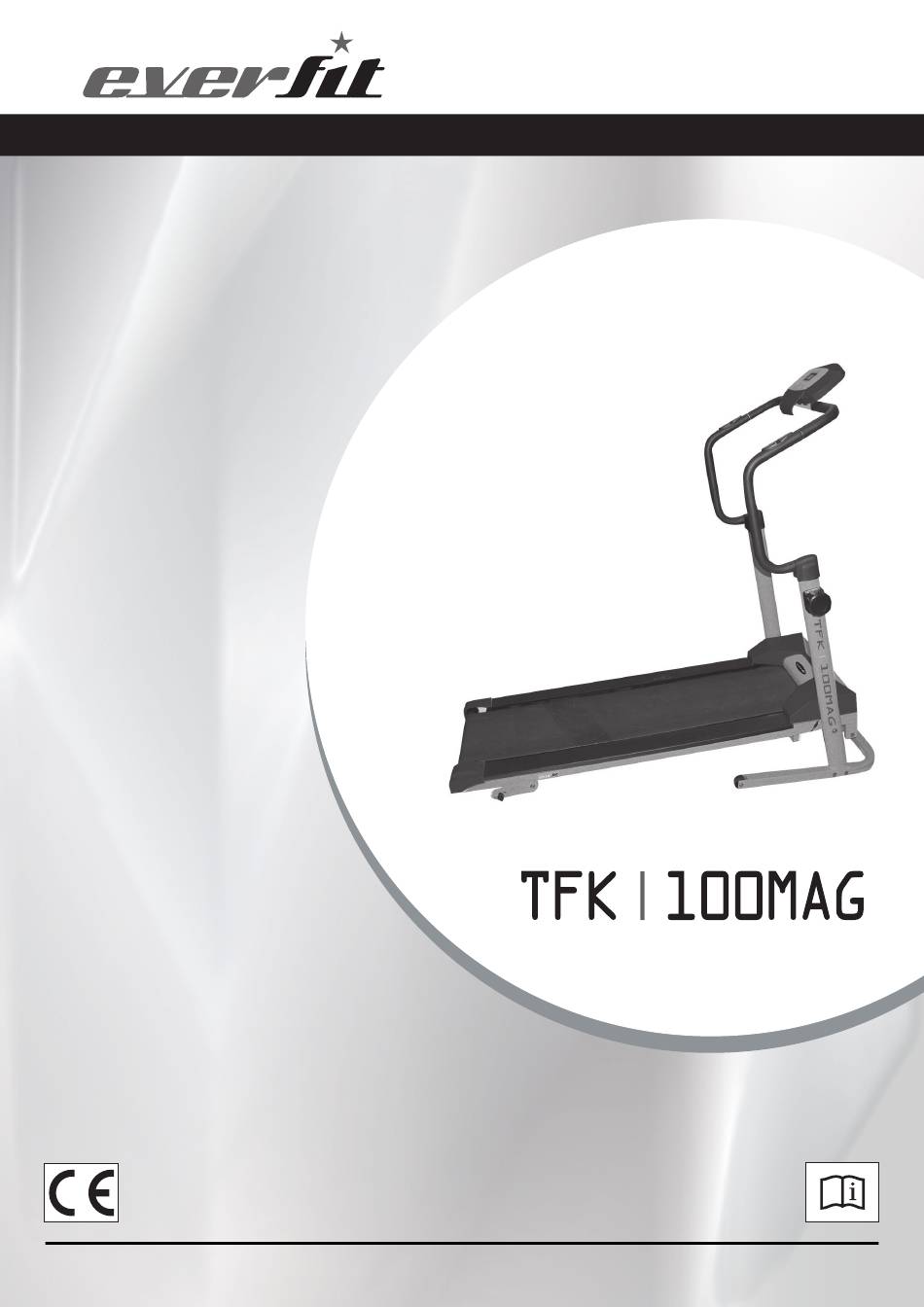

  • Page 1 INSTRUCTION Ed : 01/13 Rev : 00 Codice : GRLDEVEFTFKMAG...
  • Page 2 EXPLODE...
  • Page 3: Part List

    PART LIST DESCRIPTION DESCRIPTION Main Frame Bolt(M8*1.25*70mm) Base Frame Bolt(M4*25mm Left Upright Washer(Ø10.2) Right Upright Sensor Wire Left Handrail Tube Bolt(M3*15mm) Right Handrail Tube Magnetic Brake Middle Handrail Tube Washer(Ø13) Front Roller Bolt(M6*1*15mm) Rear Roller Wheel Protective cover Cushion Running board Bolt(M8*1.25*50mm) Running belt Bolt(M10*1.5*65mm)
  • Page 4 PART LIST OF ASSEMBLY...
  • Page 5 ASSEMBLY 5MM x 1 30 MIN NOTICE • Read this manual before assmbly • Recognize the spare parts first. • Check the hardware. • Ensure that you have the right tool. • Prepare an area to assemble. • Follow the instruction accordingly. •...
  • Page 6 ASSEMBLY STEP 1: 1).Get the product out from the box as picture A, then turn the product around as picture B. 2).Cut the packing belt off, and get the let upright tube (3) and computer box out, then turn over the right upright tube (4) and picture B with 180 degrees as the degree of picture A, put the right upright tube (4) along with the main frame as picture C.
  • Page 7 3)Keep the left upright (3) and right upright (4) are aligned with main frame (1) ,and lock with bolt (43) and Please don’t lock the bolt (43) totally. washer (34). 4 Turn over the left/right upright tube (3,4) around 70 degrees as picture D. 5)Install the TENSION KNOB(45) into the opening in the RIGHT UPRIGHT(4) and secure with ROUND HEAD SCREW(M5x25mm) (45A) and Washer(45B) 6) Insert the Pin (21) into the hole of adjust sheet (23).
  • Page 8 STEP 2 Assemble the base frame (2) and left/right upright (3, 4) with bolt (42), washer (46) and nut (61).
  • Page 9 STEP 3 1. Please plug the SENSOR WIRE(35) into the SENSOR CONNECTING WIRE(53) 2. Please plug the SENSOR CONNECTING WIRE(54) into the METER CONNECTING WIRE(60), plug the HANDLE PULSE (55) into the HANDLE PULSE WIRE(56). 3. Insert the LEFT HANDRAIL (5L) and RIGHT HANDRAIL (5R) into the MIDDLE HANDRAIL (6) and Secure with the BOLT M6*15mm(49).
  • Page 10 STEP 4 1. Refer to illustration C. Attach the Meter CLIPS (51) to the back of the METER (52) with BOLT (M5*10mm, 50). 2. Install two AA batteries into the METER (52), the batteries are not included. See page 14 for detailed battery installation instructions.
  • Page 11 STEP 5 1. For the adequate tension power, you just need to adjust the tension knob.
  • Page 12 -11- STORAGE WAY STEP 6 Insert the LOCKING KNOB (44) through the hole in the LEFT UPRIGHT (3) and screwing it into the MAIN FRAME (1). Refer to detail view A. STORAGE 1. To store the Magnetic Treadmill, simply keep it in a clean dry place. 2.
  • Page 13: Incline Instructions

    -12- INCLINE INSTRUCTIONS As left drawing, you can adjust lifting angle by means of changing ball pin latch's position. Here are 4 sections manual adjustment to be used. -13-...
  • Page 14 TREADBELT ADJUSTING If the following situation is happened on the tread belt, it will make some noise on the machine. So if the tread belt is not in the center position, too tight or too loose, please use the tool to adjust it . 1.
  • Page 15 -16-...
  • Page 16 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.everfit.it - info@everfit.it...
