Summary of Contents for Everfit TFK110 MAG

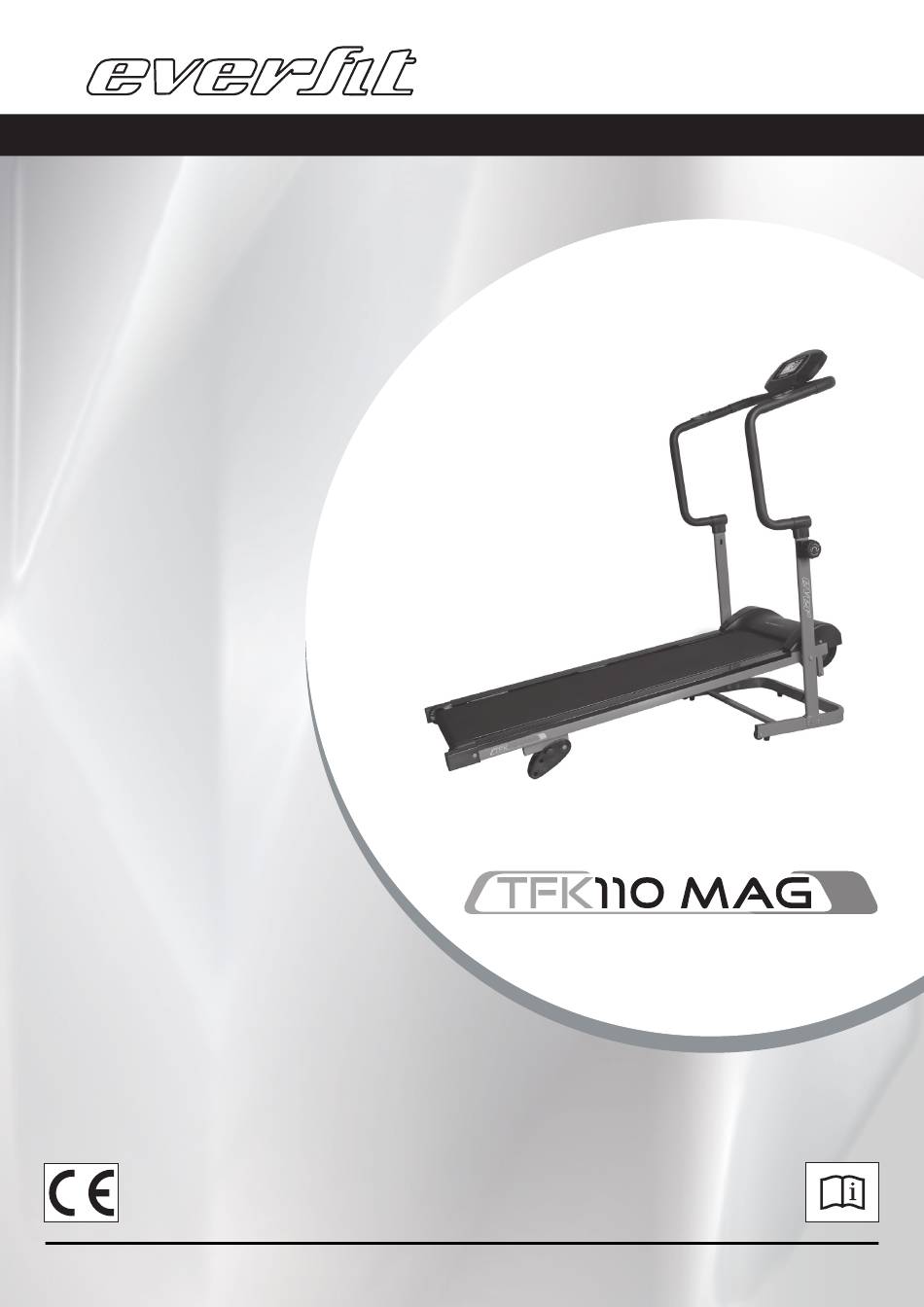

- Page 1 INSTRUCTION Ed : 06/20 Rev : Cod : GRLDEVEFTFKMAG1...
-
Page 2: Exploded Diagram
EXPLODED DIAGRAM... -
Page 3: Parts List
PARTS LIST Name & Specification Name & Specification Allen bolt M10*50 Running belt Running board Allen bolt M8*30 Left upright Side rail Allen bolt M6*10 Rear cover Allen bolt M8*75 Main frame Allen bolt M6*60 Motor cover Carriage bolt M8*35 Decorative cover left Cross head screw M5*12 Decorative cover right... - Page 4 Heart rate slice 170mm Heart rate slice Sensor wire 460mm Sensor wire 1 1380mm Ring insert pin Sensor wire 2 460mm Electronic watch stand Adjustment U base...
-
Page 5: Assembly Steps
ASSEMBLY STEPS Step 1 1. put the eight gear position trimming the right upright (20), fasten it with the philips screw and flat washer. 2. Fasten the left/right uprights (3,20) onto the base tube (26) with carriage 7# M8*35 4PCS bolt (7), flat washer (13) and nylon nut 13# ¦... - Page 6 Step 3 1. Connect Sensor wire 2 (55) with Sensor wire 1 （ 54） ;Connect Heart rate slice (53) with Heart rate slice Sensor wire （58）. 2. Fasten the computer frame (56) onto the left/right uprights (3,20) with Allen bolt (4) and arc washer (15).
- Page 7 Folding Images Image 1 Image 2...
- Page 8 Running Belt Adjustment Image Add lube oil image...
-
Page 9: Operational Instructions
OPERATIONAL INSTRUCTIONS USING THE FITNESS METER Walking Belt movement or press POWER ON: any button. Automatic shut off after 4 minutes POWER OFF: of inactivity. FUNCTION BUTTONS: Press and release to select each function MODE: for display or preset target values. Press the button and hold it down for three seconds to reset all functions to zero. - Page 10 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.everfit.it - info@everfit.it...
