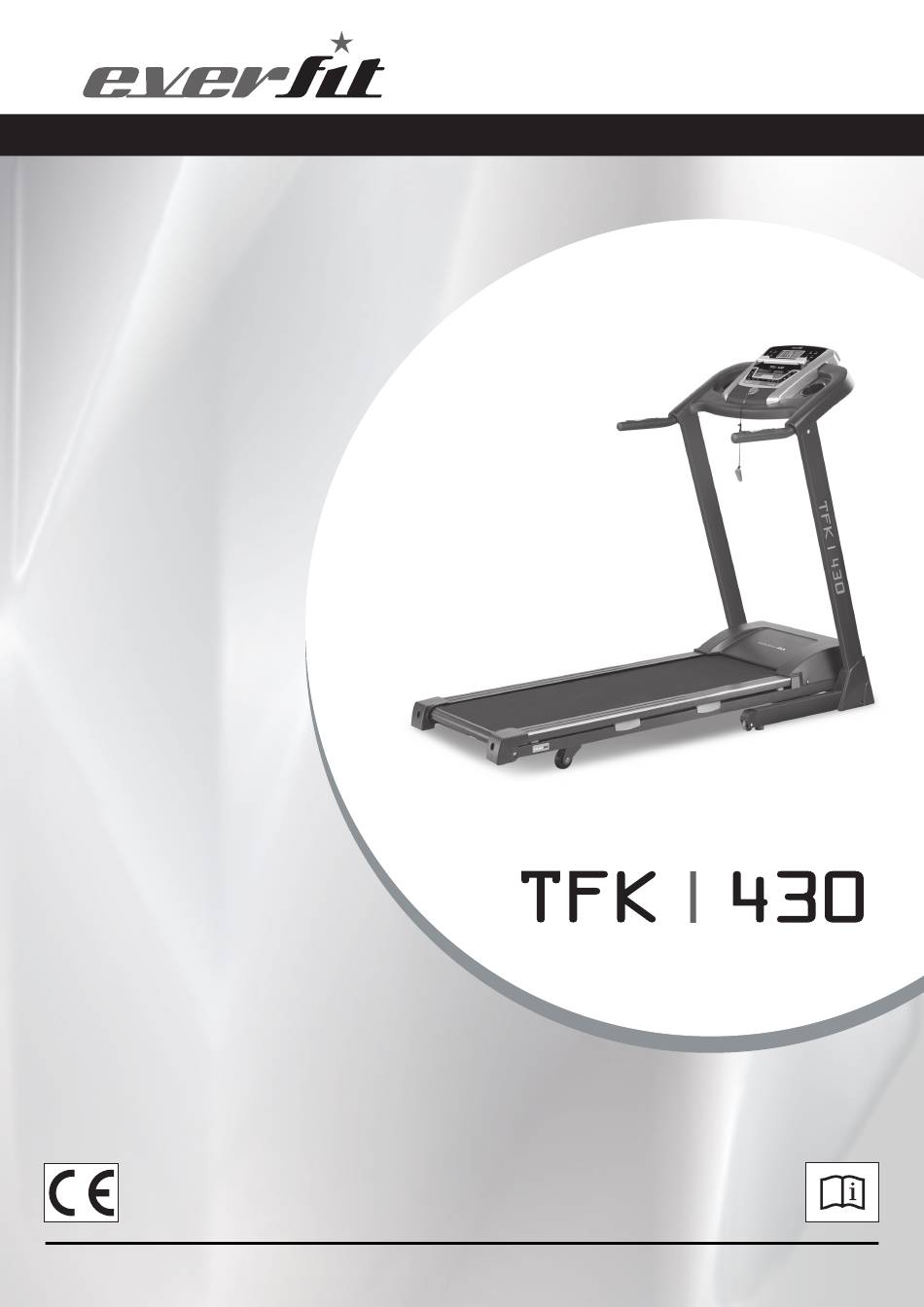

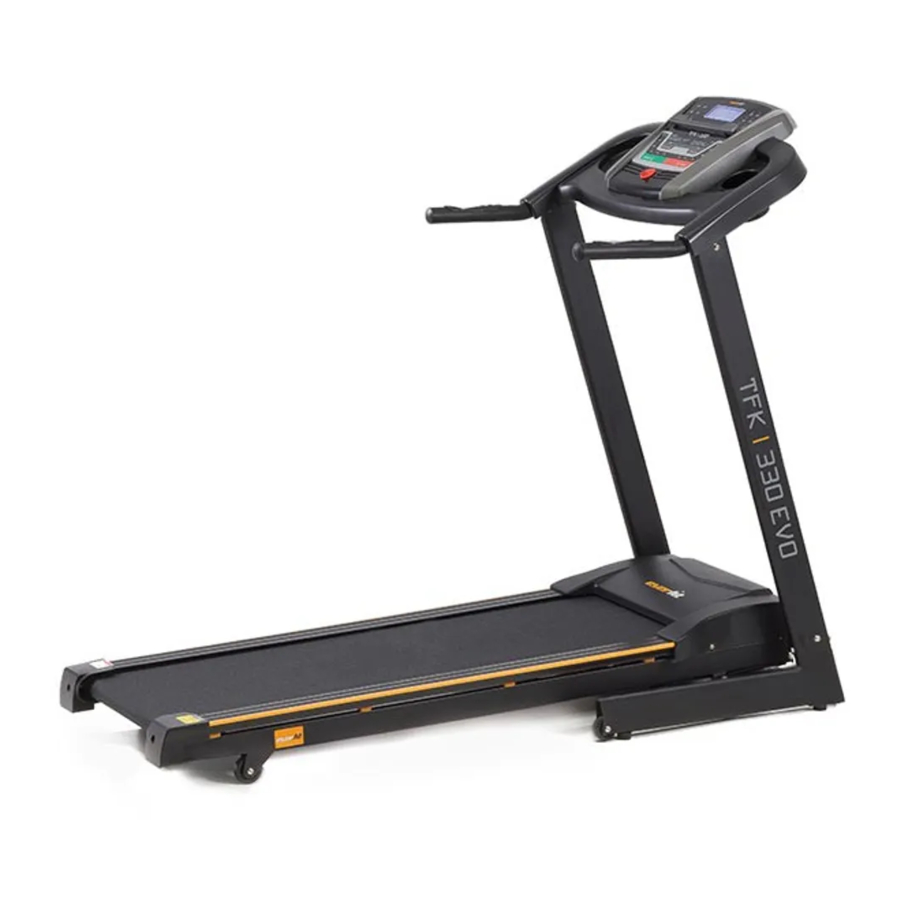

  • Page 1 INSTRUCTION Ed : 03/17 Rev : 00...

  • Page 2: Technical Parameters

    Technical Parameters Working temperature: 0-40 ℃ Input supply voltage：220V Speed range: 0.8-16KM/H Incline range: motor incline Max. user weight: 110kg Distance display range: 0.00-99.9km Calories display range: 000-999 Time display range: 00： 00-99： 59 (min : sec) Heart rate range: 50-200 (time / min) Running surface: 420*1300mm Product size: Folding size:...

  • Page 3: Assembly Instruction

    Assembly instruction WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS: STEP 1: Take out and prepare the below parts Main frame 1 set D17 Inner star washer D13 Round hex bolt Safety pad M8 8 PCs M8*15 4 PCs D3 Allen wrench B18 Silicon 1 PC...
  • Page 4 STEP 3: Secure bottom frame with bolt M8*45(D16), M8*15 (D13), and the inner star washer (D17). Then secure console frame with M8*15 (D13) and inner star washer (D17). Tighten left/right side covers (B11L/R) with cross self-tapping bolt with washer ST4.2*20 (D49). Step 4: Place on safety key (C13) and water bottle holder (B49).

  • Page 5: Folding Instruction

    Folding Instruction Lift up the machine and force to pull up until you heard "click" that made by safety casing stuck the pneumatic cylinder. Unfolding instruction Kick the safety sleeve lightly and pull down the machine at the same time as the arrow direction.

  • Page 6: Safety Lock Function

    Operation Guide WINDOW DISPLAY 1.1. 1.1. Console 1.2. START Normal start after 5 seconds countdown 1.3 PROGRAM 12 pre-set programs, 1 body fat program , 3 countdown function 1.4. SAFETY LOCK FUNCTION The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi" alarm noise.
  • Page 7 When the treadmill is not running, press this button can choose from program circle mode to manual mode (P1-P12). The lowest speed for manual mode is “0.8”, and the highest speed is “16”. The lowest incline section is “0”, and the highest incline section is “12”. 1.5.3 “MODE”...

  • Page 8: Speed Diagram

    Display pulse data 1.6.5 DISTANCE Display the running total distance or distance countdown. 1.6.6 CALORIES Display the calorie or calorie countdown 1.6.7 SPEED DIAGRAM Display the diagram of the running speed 1.6.8 WINDOW DISPLAY DATA RAGNE TIME：0:00 – 99.59(MIN) DISTANCE: 0.00 – 99.9(KM) CALORIES: 0.0 –...
  • Page 9 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 1.9 THREE COUNTDOWN FUNCTION PARAMETER DATA Countdown time initial setting 30：00 minutes，setting range 5：00---99：00 minutes , each step 1：00. Countdown calorie initial setting 50therm, setting range 10---990 term，each step 10. Countdown distance initial setting 0.8km，setting range 0.5---99.9 km，each step 0.1 Cycle switch order is: manual, time, distance, calories.
  • Page 10 FAT = (20---25) Normal weight FAT = (25---29) Over weight FAT ≥30 Obesity 1.11 OTHERS 1.11.1 When the countdown mode is finished and “END” appears on screen, warning sound occurs. Then it will be back to manual mode. 1.11.2 Countdown time, countdown calorie and countdown distance, you just can set one of them at a time, press last item to set running, the setting parameter is countdown, others display normal data 1.11.3 You can set statistics at circled mode.

  • Page 11: Exploded Drawing

    Exploded Drawing...

  • Page 12: Parts List

    Parts list A. Welding parts Description Description Incline bracket Main frame Filter bracket Base frame Motor bracket Left upright Right upright Handrail bracket B. Plastic parts Description Description Console set Side rail B1-1 Overlay B16L Left end cap B1-2 Membrane key B16R Right end cap B1-3...
  • Page 13 Drive belt Magnetic ring Power switch Inductor Controller Filter Button on left handrail Single cord (black) Button on right handrail D. Hardware parts Description Description Screw driver 13-15-17 Hex round head bolt M6X45 Allen wrench T5 Hex round head bolt M6X60 Round hex bolt M10X30 Hex round head bolt M8X20 Round hex bolt M10*45...
  • Page 14 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.everfit.it - info@everfit.it...
