Summary of Contents for DCI Edge 5 Series

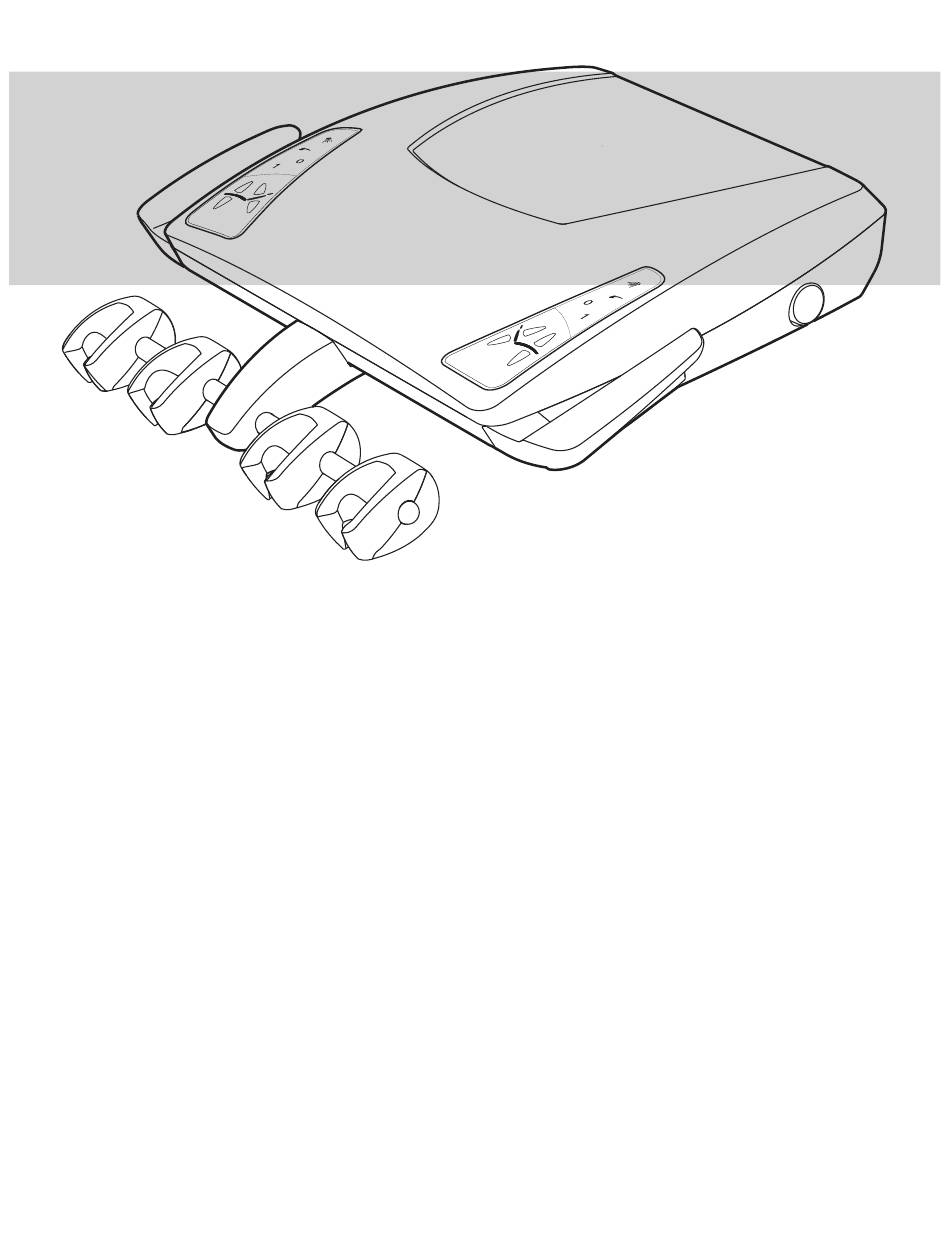

- Page 1 SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use...
-
Page 2: System Overview
SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use OVERVIEW SIDE DELIVERY SYSTEM DW5050, DW5550... -
Page 3: Table Of Contents
SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use INTRODUCTION SYMBOLS TABLE OF CONTENTS The following symbols may be used throughout this product manual: System Overview CAUTION: Failure to carefully follow the described Introduction procedure may result in damage to the equipment. WARNING: Failure to carefully follow the described General Information procedure may result in damage to the equipment, the... -
Page 4: General Information
INTENDED APPLICATION AND USE The DCI Edge dental delivery system is a device intended to support the instruments used by the dental practitioner, delivering those instruments to an accessible position during a dental procedure. This device also controls and is the means of delivering compressed air, water, and low voltage electricity to a variety of instruments commonly used in dental practice. -
Page 5: General Safety
SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use GENERAL SAFETY WARNINGS & CAUTIONS WARNING: Failure to return handpieces WARNING: This product must be to their proper locations could result in disinfected before use. alternate or additional handpieces operating without notice. CAUTION: Only authorized service WARNING: Proper personal protective technicians should attempt to service this... -
Page 6: Operation - Keypads
2) Press and hold “0” or “1” for five seconds. A long audible beep will sound to indicate that the assignment is complete. * Only lights which are electrically connected to a DCI Edge patient chair may be operated utilizing this key on... -
Page 7: Operation - Control Head
SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use OPERATION - CONTROL HEAD CONTROLS... -
Page 8: Operation - Utilities
SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use OPERATION - UTILITIES CONTROLS CONTROL HEAD All of the operating controls are located on the underside of the control head where they are sheltered from most airborne contaminants. MASTER ON/OFF: Located on the left side of the control head towards the front, this toggle switch activates the air and water shut-off valves, which control the air and water supplies to the unit. -
Page 9: Operation - Water System
SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use OPERATION - SELF-CONTAINED WATER SYSTEM USING BOTTLED WATER SELF-CONTAINED WATER SYSTEM CITY / BOTTLE SELECTOR The self-contained water system allows you to isolate your practice WATER BOTTLE from the municipal water supply. The self-contained water system ON/OFF TOGGLE uses a pressurized bottle to supply water to the dental unit, giving you full control of the source and quality of the water. -
Page 10: Adjustments
SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use ADJUSTMENTS UTILITY CENTER The Utility Center comes factory preset at 40 psi for Water pressure and 80 psi for Air pressure. All regulator adjustments should be made with the Master On/Off in the ON position. Pressure Gauge 1. - Page 11 SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use ADJUSTMENTS DOCTOR’S SYRINGE Adjusting screws allow you to control the flow of air and water from the syringe to prevent splashing and to achieve a desirable mist pattern. The adjusting screws are located under the unit head directly below the syringe control block. SYRINGE CONTROL BLOCK Use a 3/32”...
- Page 12 SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use ADJUSTMENTS HEAD LEVELING Leveling of the control head will be necessary when the dental unit is first installed and any time that the flex arm spring tension has been adjusted. Loosen the set screw in the stop block located FRONT KNUCKLE above and behind the front knuckle (A).
- Page 13 SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use ADJUSTMENTS FLEX ARM TENSIONING The Flex Arm is preset at the factory, however it may be necessary to re-adjust tension to the user’s needs. After adjusting the spring tension, the delivery system head must be leveled (see head leveling). TO INCREASE SPRING TENSION FRONT KNUCKLE Remove the end cap at the front of the flex...
-
Page 14: Disinfection And Sterilization
SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use DISINFECTION AND STERILIZATION BARRIER TECHNIQUE Wherever possible, use disposable barriers and change them between patients. The barrier technique will ensure maximum long-term durability of the surfaces and finishes of the equipment. DISINFECTION & STERILIZATION The Manufacturer will not attempt to specify the required intervals for disinfection nor can it recommend the overall best surface disinfectant. -
Page 15: Maintenance
SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use MAINTENANCE GENERAL CLEANING Equipment can be cleaned with a solution of mild detergent and warm water. A variety of surface disinfectants are available for use in dental treatment rooms. Some of these can cause discoloration of painted, plated or anodized surfaces with repeated use. - Page 16 SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use MAINTENANCE DENTAL UNIT - WEEKLY MAINTENANCE A cleaning procedure should be performed at least once a week, preferably at the start of the week before treating patients. If the unit is to be stored for any length of time, perform a weekly maintenance routine immediately before and after storage.
- Page 17 SERIES 5 SIDE DELIVERY SYSTEM Instructions For Use MAINTENANCE SELF-CONTAINED WATER SYSTEM The self-contained water system is designed to optimize the quality of water being delivered to the handpieces and syringes. The self-contained water system has three functions: The system may be filled with filtered or sterile water for patient use. The system may be filled with disinfectant for flushing the syringe and handpiece tubing.
-
Page 18: Electromagnetic Compatibility
INTERFERENCE FROM OTHER EQUIPMENT If other equipment is used adjacent to or stacked with the DCI Edge equipment, the system must be observed to verify normal operation. DCI EDGE EQUIPMENT COMPLIANCE This equipment has been tested and found to comply with the limits for medical devices in IEC 60601-1-2. - Page 19 PN 50196, Rev. A, 2021-08-23 www.dcionline.com DCI International, LLC 800-624-2793 305 N. Springbrook Road Newberg, OR 97132, USA...
