Instructions for Use

SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM

Table of Contents

Need help?

Do you have a question about the 4 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for DCI Edge 4 Series

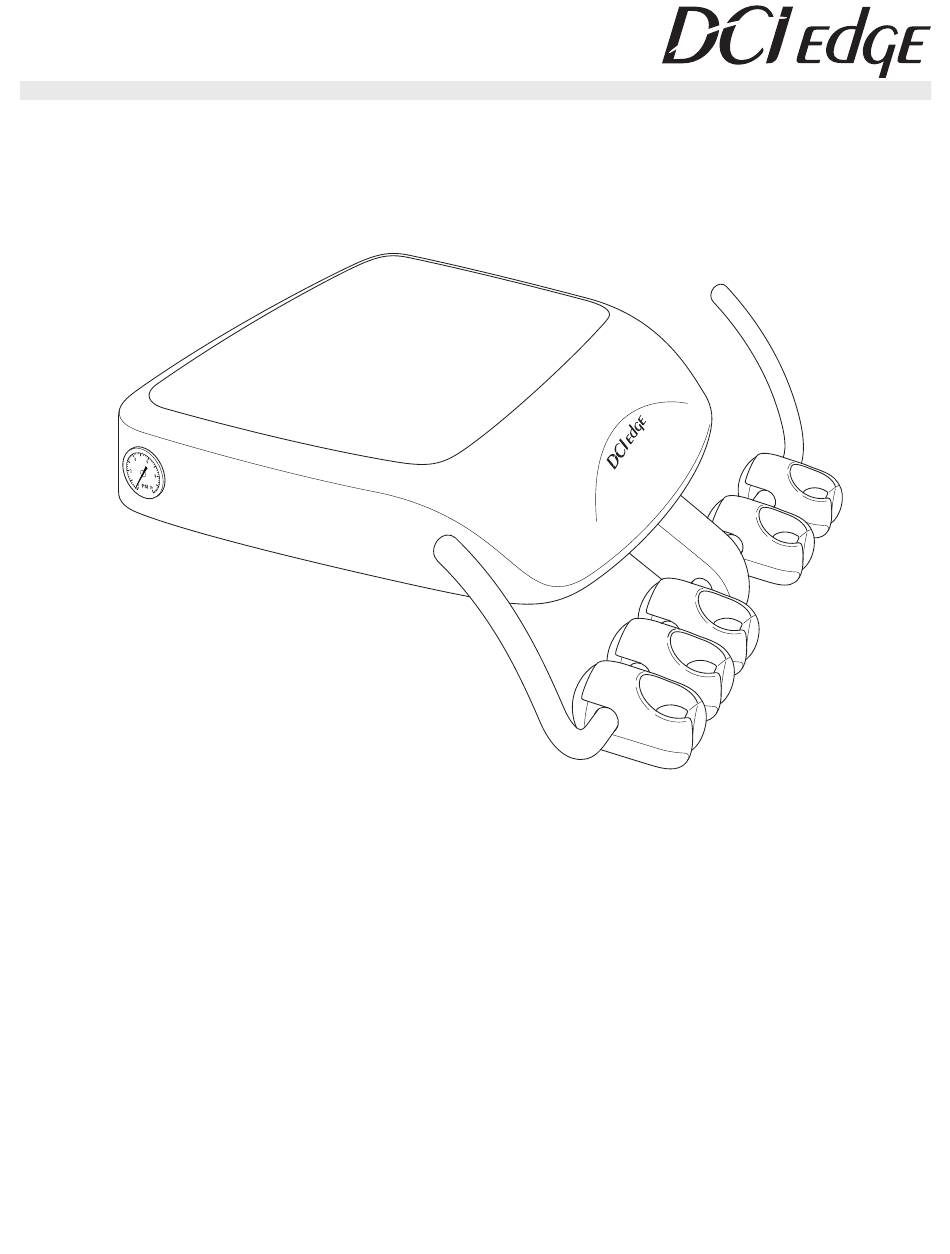

Page 1 Instructions for Use SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM...
Page 2 SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use OVERVIEW SWING MOUNT HYGIENE DS4553 / DS4554 PMU MOUNT HYGIENE DO4553 / DO4653...
Page 3 SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use INTRODUCTION SYMBOLS TABLE OF CONTENTS Overview The following symbols may be used throughout this product manual: Introduction WARNING: Failure to carefully follow the described procedure may result in damage to the equipment or General Information the operator.
Page 4: General Information
SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use GENERAL INFORMATION INTENDED APPLICATION AND USE The dental delivery system is a device intended to support the instruments used by the dental practitioner, delivering those instruments to an accessible position during a dental procedure. This device may control and be the means of delivering compressed air, water, vacuum and low voltage electricity to a variety of instruments commonly used in dental practice.
Page 5: General Safety
SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use GENERAL SAFETY WARNINGS & CAUTIONS WARNING: Failure to return handpieces WARNING: This product must be to their proper locations could result in disinfected before use. alternate or additional handpieces operating without notice. CAUTION: Only authorized service WARNING: Proper personal protective technicians should attempt to service this...
Page 6 BACKREST assignment is complete. RECLINE CHAIR DOWN * Only lights which are electrically connected to a DCI Edge patient chair may be operated utilizing this key on the Series 4 keypads.
Page 7 SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use OPERATION - CONTROL HEAD CONTROLS FLEX ARM BRAKE RELEASE MASTER ON/OFF WATER COOLANT FLOW CONTROL FLUSH AIR COOLANT FLOW CONTROL OIL COLLECTOR DRIVE AIR PRESSURE GAUGE...
Page 8 SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use OPERATION - POST MOUNT UTILITIES CONTROLS CONTROL HEAD: All of the operating controls are located on the underside of the control head where they are sheltered from most airborne contaminants. MASTER ON/OFF: Located on the right side of the control head towards the front, this toggle switch activates the air and water shut-off valves, which control the air and water supplies to the dental delivery system.
Page 9: Foot Control
SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use OPERATION - UTILITIES PMU CONTROLS AIR QUICK CONNECT: This air output provides 80psi output to run accessories for the user. Accepts a 3/8” male quick connect fitting. WATER QUICK CONNECT: This water output provides 40psi output to run accessories for the user.
Page 10 SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use OPERATION - SELF-CONTAINED WATER SYSTEM USING BOTTLED WATER SELF-CONTAINED WATER SYSTEM The self-contained water system allows you to isolate your practice from the municipal water supply. The self-contained water system uses a pressurized bottle to supply water to the dental delivery system, giving you full control of the source and quality of the water.
Page 11: Drive Air
SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use ADJUSTMENTS UTILITY CENTER Located in the J-Box, the Utility Center comes factory preset at 40psi for Water pressure and 80psi for Air pressure. All regulator adjustments should be made with the Master On/Off in the ON position. Pressure Gauge 1.
Page 12: Doctor's Syringe
SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use ADJUSTMENTS DOCTOR’S SYRINGE Adjusting screws allow you to control the flow of air and water from the syringe to prevent splashing and to achieve a desirable mist pattern. The adjusting screws are located under the dental delivery system head directly below the syringe control block.
Page 13 SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use ADJUSTMENTS FLEX ARM TENSIONING The Flex Arm is preset at the factory, however it may be necessary to re-adjust tension to the user’s needs. After adjusting the spring tension, the dental delivery system head must be leveled (see next page). FRONT KNUCKLE TO INCREASE SPRING TENSION Remove the end cap at the front of the flex...
Page 14 SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use ADJUSTMENTS HEAD LEVELING Leveling of the control head will be necessary when the dental delivery system is first installed and any time that the flex arm spring tension has been adjusted. Before leveling, ensure that the swing arm assembly or the PMU post is level. For leveling of the swing arm assembly or the PMU post, refer to the installation instructions.
Page 15 SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use ADJUSTMENTS REAR FLEX ARM ROTATION The rotational tension of the flex arm may be adjusted at the set screw on the post, with a 3/32" hex key, located below the joint where the rear knuckle of the flex arm joins the rigid arm. SWING MOUNT PMU MOUNT RIGID ARM ROTATION...
Page 16 SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use ADJUSTMENTS TELESCOPING ARM The assistant’s holder pivots to provide tilt for the assistant’s instruments. Using a 5/32" hex key, adjust the tension at the set screw indicated. The tension on the pivot points for the telescoping arm can be adjusted. Using a 3/32"...
Page 17: Disinfection And Sterilization
SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use DISINFECTION AND STERILIZATION BARRIER TECHNIQUE Wherever possible, use disposable barriers and change them between patients. The barrier technique will ensure maximum long term durability of the surfaces and finishes of the equipment. DISINFECTION &...
Page 18: Maintenance
SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use MAINTENANCE GENERAL CLEANING Equipment can be cleaned with a solution of mild detergent and warm water. A variety of surface disinfectants are available for use in dental treatment rooms. Some of these can cause discoloration of painted, plated or anodized surfaces with repeated use.
Page 19 SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use MAINTENANCE DENTAL DELIVERY SYSTEM - WEEKLY MAINTENANCE A cleaning procedure should be performed at least once a week, preferably at the start of the week before treating patients. If the dental delivery system is to be stored for any length of time, perform a weekly maintenance routine immediately before and after storage.
Page 20 SERIES 4 HYGIENE DENTAL DELIVERY SYSTEM Instructions for Use MAINTENANCE SOLIDS COLLECTOR SOLIDS COLLECTOR Turn off the vacuum pump. Remove the solids collector cap and lift out and dispose of the screen. If you find an excessive amount of material in the screen, more frequent cleaning is necessary.
Page 21: Electromagnetic Compatibility
INTERFERENCE FROM OTHER EQUIPMENT If other equipment is used adjacent to or stacked with the DCI Edge equipment, the system must be observed to verify normal operation. DCI EDGE EQUIPMENT COMPLIANCE This equipment has been tested and found to comply with the limits for medical devices in IEC 60601-1-2.
Page 22 PN 40017, Rev. E, 2024-04-29 www.dcionline.com DCI International, LLC 800-624-2793 705 S. Springbrook Road Bldg C Newberg, OR 97132, USA...
