Instructions for Use

SERIES 4 12 O'CLOCK DENTAL DELIVERY SYSTEM

Table of Contents

Need help?

Do you have a question about the 4 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for DCI Edge 4 Series

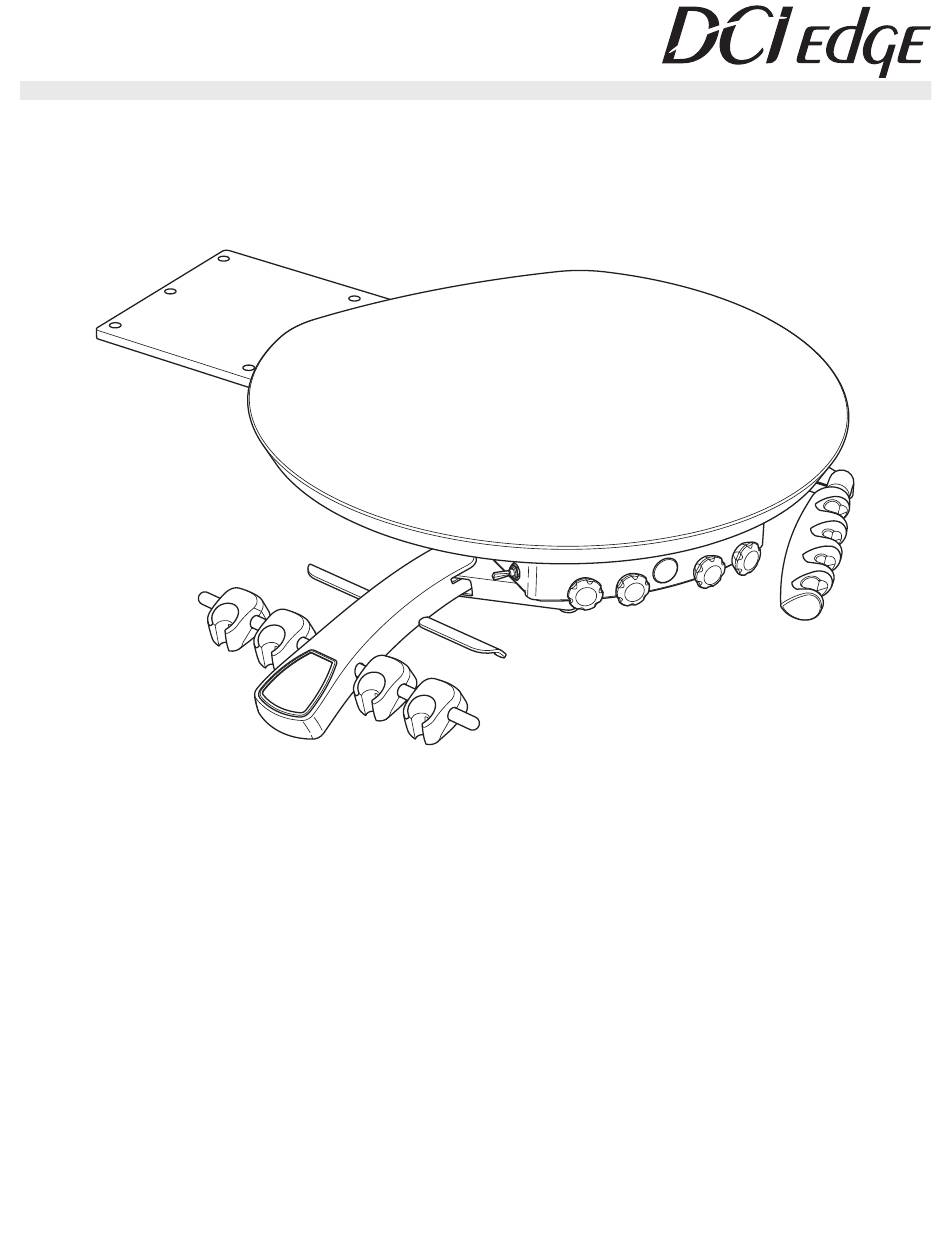

Page 1 Instructions for Use SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM...
Page 2 SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use OVERVIEW DR4550 12 O’Clock Cabinet Mount Dental Delivery System with Dr & Assistant’s Instru- ments & Mobile Work Surface DR4451 12 O’Clock Cabinet Mount Dental Delivery System with Assistant’s Instruments & Mobile Work Surface DR4552 12 O’Clock Cabinet Mount Dental Delivery System with Dr’s Instruments...
Page 3 SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use INTRODUCTION SYMBOLS TABLE OF CONTENTS Overview The following symbols may be used throughout this product manual: Introduction WARNING: Failure to carefully follow the described procedure may result in damage to the equipment or General Information the operator.
Page 4: General Information
SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use GENERAL INFORMATION INTENDED APPLICATION AND USE The dental delivery system is a device intended to support the instruments used by the dental practitioner, delivering those instruments to an accessible position during a dental procedure. This device may control and be the means of delivering compressed air, water, vacuum and low voltage electricity to a variety of instruments commonly used in dental practice.
Page 5: General Safety
SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use GENERAL SAFETY WARNINGS & CAUTIONS WARNING: Failure to return handpieces WARNING: This product must be to their proper locations could result in disinfected before use. alternate or additional handpieces operating without notice. CAUTION: Only authorized service WARNING: Proper personal protective technicians should attempt to service this...
Page 6 2. Press and hold “0” or “1” for five seconds. A long audible beep will sound to indicate that the assignment is complete. NOTE: Only lights which are electrically connected to a DCI Edge patient chair may be operated utilizing this key on the Series 5 keypads.
Page 7 SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use OPERATION - CONTROL HEAD CONTROLS master air coolant air pressure gauge water flow tubing manager instrument holders keypad master on/off flush drive air adjustment screws...
Page 8 SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use OPERATION - CONTROL HEAD CONTROLS CONTROL HEAD: All of the operating controls are located on the underside of the control head where they are sheltered from most airborne contaminants. MASTER ON/OFF: Located on the right side of the control head towards the front, this toggle switch activates the air and water shut-off valves, which control the air and water supplies to the dental delivery system.
Page 9: Foot Control
SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use OPERATION - UTILITIES QUICK CONNECT BOX AIR QUICK CONNECT: This air output provides 80psi output to run accessories for the user. Accepts a 3/8” male AIR QUICK WATER QUICK quick connect fitting. CONNECT CONNECT WATER FLOW...
Page 10 SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use OPERATION - SELF-CONTAINED WATER SYSTEM USING BOTTLED WATER SELF-CONTAINED WATER SYSTEM The self-contained water system allows you to isolate your practice from the municipal water supply. The self-contained water system uses a pressurized bottle to supply water to the dental delivery system, giving you full control of the source and quality of the water.
Page 11: Drive Air
SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use ADJUSTMENTS UTILITY CENTER Located in the J-Box, the Utility Center comes factory preset at 40psi for Water pressure and 80psi for Air pressure. All regulator adjustments should be made with the Master On/Off in the ON position. Pressure Gauge 1.
Page 12: Doctor's Syringe
SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use ADJUSTMENTS DOCTOR’S SYRINGE Adjusting screws allow you to control the flow of air and water from the syringe to prevent splashing and to achieve a desirable mist pattern. The adjusting screws are located under the dental delivery system head directly below the syringe control block.
Page 13 SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use ADJUSTMENTS LEVELING Leveling of the control head will be necessary when the dental delivery system is first installed and any time that the flex arm spring tension has been adjusted. Before leveling, ensure that the swing arm assembly or the PMU post is level. For leveling of the swing arm assembly or the PMU post, refer to the installation instructions.
Page 14 SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use ADJUSTMENTS SUPPORT ARM TENSIONING Rotational tension is preset at the factory, however it may be necessary to increase or decrease tension to suit the user’s needs. Remove the rear end cap from the short rigid arm. Using a 3/32”...
Page 15 SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use ADJUSTMENTS ASSISTANT AND DR’S ARM TENSIONING Rotational tension is preset at the factory, however it may be necessary to increase or decrease tension to suit the user’s needs. Using a 3/32” hex key, adjust tension on assistant arm by turning the set screw at the rear of the arm. Dr’s rear pivot joint: adjust the nut at the bottom of the rear pivot joint to adjust tension of the rear Dr’s arm.
Page 16: Disinfection And Sterilization
SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use DISINFECTION AND STERILIZATION BARRIER TECHNIQUE Wherever possible, use disposable barriers and change them between patients. The barrier technique will ensure maximum long term durability of the surfaces and finishes of the equipment. DISINFECTION &...
Page 17: Maintenance
SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use MAINTENANCE GENERAL CLEANING Equipment can be cleaned with a solution of mild detergent and warm water. A variety of surface disinfectants are available for use in dental treatment rooms. Some of these can cause discoloration of painted, plated or anodized surfaces with repeated use.
Page 18 SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use MAINTENANCE DENTAL DELIVERY SYSTEM - WEEKLY MAINTENANCE A cleaning procedure should be performed at least once a week, preferably at the start of the week before treating patients. If the dental delivery system is to be stored for any length of time, perform a weekly maintenance routine immediately before and after storage.
Page 19: Self-Contained Water System
SERIES 4 12 O’CLOCK DENTAL DELIVERY SYSTEM Instructions for Use MAINTENANCE SOLIDS COLLECTOR Turn off the vacuum pump. Remove the solids collector cap and lift out and dispose of the screen. If you find an excessive amount of material in the screen, more frequent cleaning is necessary. SELF-CONTAINED WATER SYSTEM The self-contained water system is designed to optimize the quality of water being delivered to the handpieces and syringes.
Page 20: Device Compatibility
INTERFERENCE FROM OTHER EQUIPMENT If other equipment is used adjacent to or stacked with the DCI Edge equipment, the system must be observed to verify normal operation. DCI EDGE EQUIPMENT COMPLIANCE This equipment has been tested and found to comply with the limits for medical devices in IEC 60601-1-2.
Page 21 DCI International, LLC PN 40050, Rev. D, 2024-04-29 www.dcionline.com 705 S. Springbrook Road Bldg C 800-624-2793 Newberg, OR 97132, USA...
