- Page 1 ORTHODONTIC CHAIR Installation Instructions...
-
Page 2: System Overview

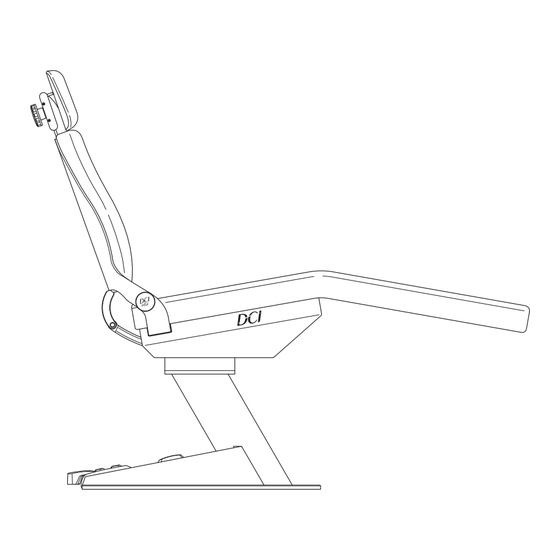

ORTHODONTIC CHAIR Installation Instructions OVERVIEW 22.75" 63.85" 71.40" 21.65"... -
Page 3: Table Of Contents
ORTHODONTIC CHAIR Installation Instructions INTRODUCTION SYMBOLS TABLE OF CONTENTS The following symbols may be used throughout this product manual: System Overview CAUTION: General Caution. Failure to carefully follow the described procedure may result in damage to the Introduction equipment. WARNING: Failure to carefully follow the described... -
Page 4: General Safety
ORTHODONTIC CHAIR Installation Instructions GENERAL SAFETY WARNINGS & CAUTIONS WARNING: Patient weight capacity is WARNING: This product must be 350lbs. Do not exceed this limit. Doing so disinfected before use. may cause personal injury and/or damage to the chair. CAUTION: Only authorized service... -
Page 5: Preparations
ORTHODONTIC CHAIR Installation Instructions PREPARATIONS UNPACKING Preassembly Check: Open shipping cartons carefully and check to see that all parts are received and have not been damaged during shipping. Unpacking Chair: Carefully remove two (2) fasteners securing chair to pallet using nut driver supplied with order. Slide chair from pallet to proper moving equipment and secure to move chair to final installation location. -
Page 6: Installation
ORTHODONTIC CHAIR Installation Instructions INSTALLATION FLOOR DRILLING Location: Full size templates are available upon request for laying out location of chair and utilities (if required) prior to actual installation. CAUTION: Base must be anchored to floor. Failure to do so may result in serious bodily injury to operator and/or patient and could cause unwarranted product damage. - Page 7 ORTHODONTIC CHAIR Installation Instructions INSTALLATION CONCRETE FLOOR INSTALL The below instructions are for installing onto a concrete floor. To install into a wood floor, skip to the next page. Hammer in 3 anchors to the 1/2” drilled holes. Using 9/16” wrench, assemble washers and nuts and tighten to the floor.
- Page 8 ORTHODONTIC CHAIR Installation Instructions INSTALLATION CHAIR MOUNTING For concrete floors: Align the chair to the floor anchors or pre-drilled holes and reassemble the washers and nuts until snug. For wood floors: Align the chair to the pre-drilled holes and assemble the lag screws and washers until...
- Page 9 ORTHODONTIC CHAIR Installation Instructions INSTALLATION COVER INSTALLATION Place Cover on Base Plate and make electrical connections. Slide cover into place. Fold back the rubber foot pad to expose the cutout areas below, and add 2 10-32" screws to secure the cover to the base plate using a 1/8"...
- Page 10 ORTHODONTIC CHAIR Installation Instructions INSTALLATION HEIGHT ADJUSTMENT Adjust height by removing or adding 2 spacers between the post and the upper seat assembly. Access 2 bolts from Disconnect 2 cable Access 2 bolts from below as shown here above as shown harnesses here.
- Page 11 ORTHODONTIC CHAIR Installation Instructions INSTALLATION Reassemble the upper portion of the chair using the bolts provided according to the length required as shown below. NO SPACERS Seat height: 20” Bolt Part Number: 49068 ONE SET OF SPACERS Seat height: 21.5”...
- Page 12 ORTHODONTIC CHAIR Installation Instructions INSTALLATION APPLY SEAT UPHOLSTERY Position the seat squarely on the chair frame and push the seat toward the backrest to engage the 2 hooks under the back flange of the frame. Lower the seat and install the 2 screws and split washers at the front...
- Page 13 ORTHODONTIC CHAIR Installation Instructions INSTALLATION INSTALL BACK UPHOLSERY Engage the hooks on the back of the backrest upholstery to the horizontal bars in the back frame. Slide the upholsery downward until it stops against the bars. INSTALL HEADREST Slide the headrest into the back frame assembly as shown.
- Page 14 ORTHODONTIC CHAIR Installation Instructions INSTALLATION POWER CORD Attach the power cord to the AC receptacle located on the side of the cover. Lower the wire clip over the power cord to secure the connection.
-
Page 15: Troubleshooting
ORTHODONTIC CHAIR Installation Instructions TROUBLESHOOTING Symptoms: Appropriate Action: Chair will not operate Check the main ON/OFF switch to ensure it is in the ON position. Chair will not operate Check the A/C outlet that the chair is plugged into to ensure that there is power going to the chair. - Page 16 www.dcionline.com 305 N. Springbrook Road PN 40040, Rev. B, 2018-06-28 800-624-2793 Newberg, OR 97132, USA...
