Level Balustrades; Stair Balustrades - AZEK Timbertech Impression Rail Express Installation Manual

Installing Aluminium Posts
8

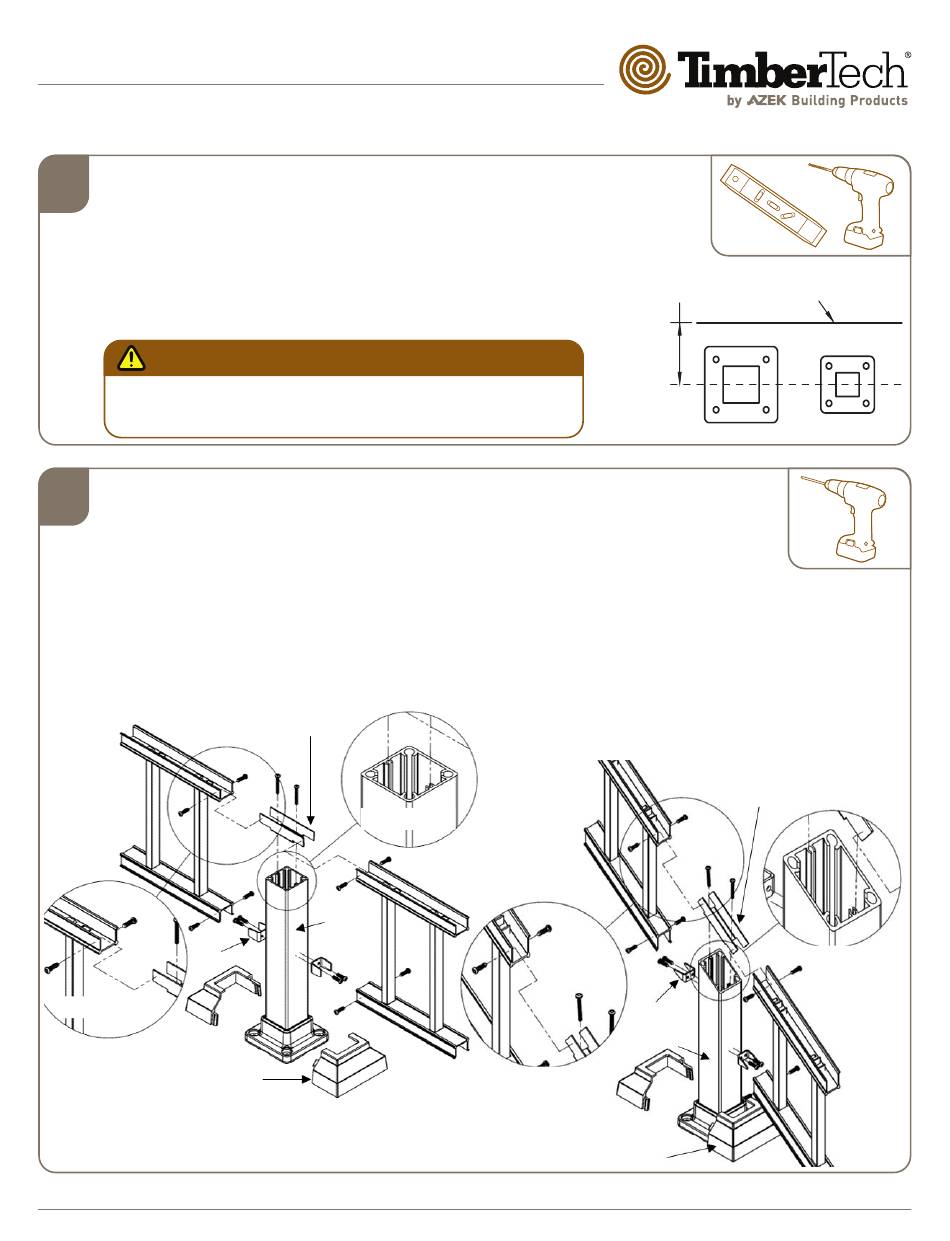

Secure 50mm x 50mm Posts to Deck (center only)
• For continuous hand rail systems, install 50mm x 50mm posts
centered between 75mm x 75mm end and corner posts.
NOTE: 50mm x 50mm Posts must be installed with center
screw chases in-line with balustrade
• Follow instructions in step 2
Important Note:
75mm x 75mm posts are required at all transitions. 50mm x
50mm posts may not be used to start/end a run or to form a
corner.
9
Install Crossover Brackets on 50mm x 50mm Posts
• With 150mm #2 square drive bit, fasten straight crossover bracket (included) into post
with
(2) - #8x40mm Self-Drilling Screws.
NOTE: Self-Drilling Screws must be installed in screw chases in-line with
balustrades.
• With 150mm #2 square drive bit, fasten H-channel to straight and stair crossover
brackets with (4) - #8x20mm Self-Drilling Screws.
CLIP
Dia. #12C
POST BASE PLATE VINYL COVER
*DO NOT INSTALL UNTIL
BALUSTRADE ASSEMBLY IS
COMPLETED.
(Dia. #3A to Dia.
(Dia. #12A & #12B)

LEVEL BALUSTRADES

STRAIGHT CROSSOVER
BRACKET
Dia. #12A
POST
EXTRUSION
(Dia. #11).
75mm CENTERLINE TYPICAL
#4).
(Dia. #12C & #12D)
Dia. #12D
POST BASE PLATE
Page 7
Dia. #11
Repeat for lower

STAIR BALUSTRADES

STAIR CROSSOVER
BRACKET
CLIP
POST
EXTRUSION
VINYL COVER
DECK EDGE
Dia. #12B
