Gate Kits - AZEK Timbertech Impression Rail Express Installation Manual

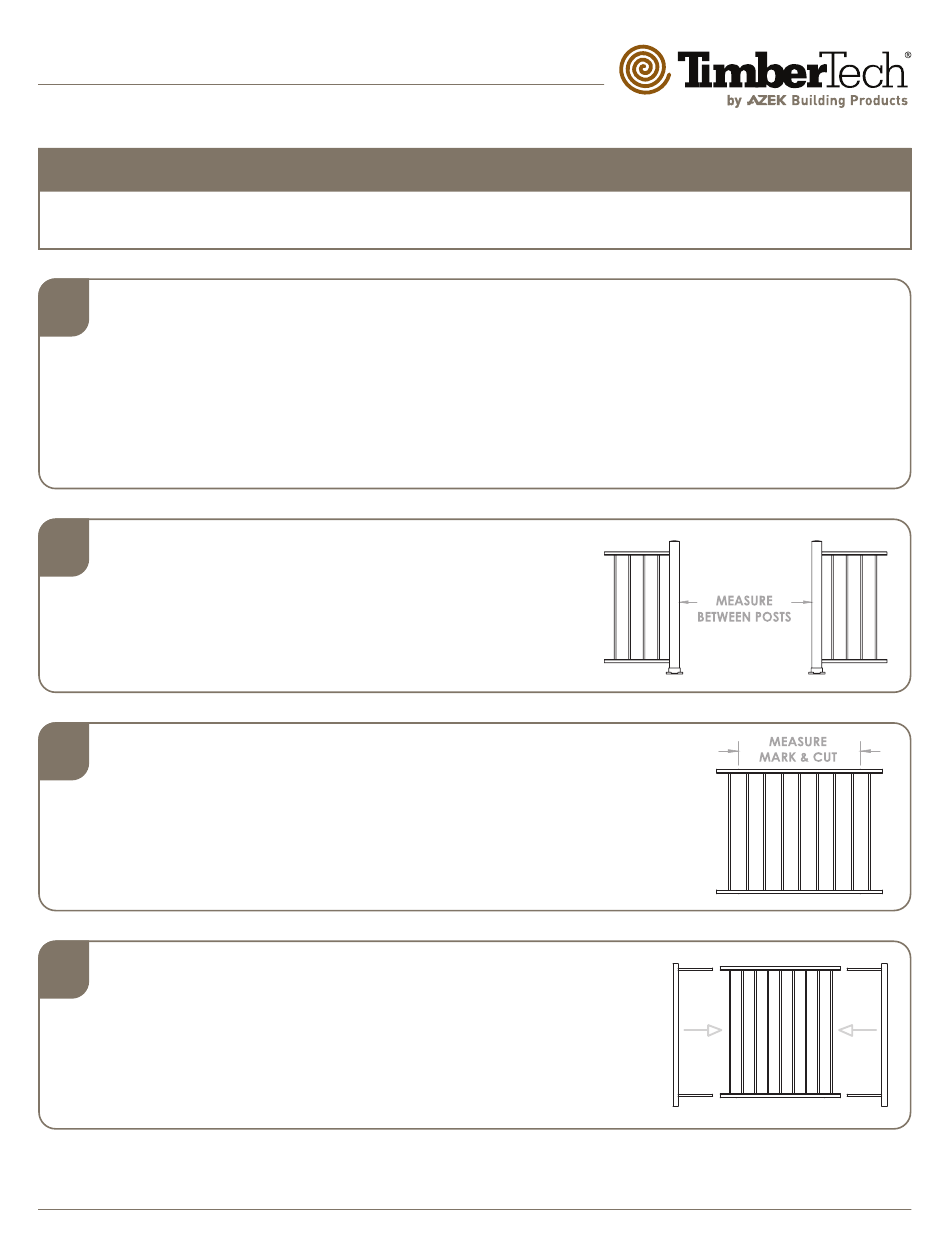

Installing Gate Kits
Suggested Tools:
• Cordless Drill
• Pencil
1
Remove all Items From Package
Gate Kit Includes:
• One (1) - Picket Balustrade
• Two (2) - Snap Covers
• Two (2) - Gate End Posts w/ Welded Rods
• Sixteen (16) - 3/4" Self-Drilling Screws
• Two (2) - Self-Closing Hinges
2
Measure Opening Between Posts (Dia. #1)
3
Measure, Mark and Cut Picket Gate Balustrade
(without Gate End Posts)
Measurement must be exactly 115mm less than gate opening.
Deduct 115mm from opening measurement and cut both
balustrade ends, leaving equal picket spacing.
4
Insert Gate End Posts Into Balustrade Upper and
Lower Horizontal Channels. (Dia. #3)
• Tape Measure
• Safety Glasses
(Dia. #2)
Page 13
• #2 Sq. Drive Bit
• 3.2mm Drill Bit
• One (1) - Locking Latch Kit w/ Key
• Four (4) - Gate Support Brackets
• Sixteen (16) - Color Matched Self-Drilling Screws
• Measure opening between posts.
Dia. #2
Dia. #3
• Miter Saw w/ Non-
Ferrous Blade
(Dia. #1)
Dia. #1
