Install Hand and Base Snap Covers
• Following the same angle as the secured stair
balustrade, clamp or hold hand/base rail snaps against
75mm x 75mm posts
mark the hand/base rail snaps at all four (4) locations.
• Remove clamps and cut hand/base rail snaps at all four
(4) locations. Take care to cut snaps at appropriate stair
angle. Use of Miter saw with a sharp non-ferrous blade
is recommended. Cut 2mm less than opening size.
• Clean cut areas and apply touch-up paint on exposed
ends.
• Snap each balustrade snap over the corresponding
balustrade channel until properly seated
• Tip: Support balustrade with a block of wood when
installing hand rail snap.
(Dia. 7). Using a sharp #2 pencil,
(Dia. 8).
Page 12

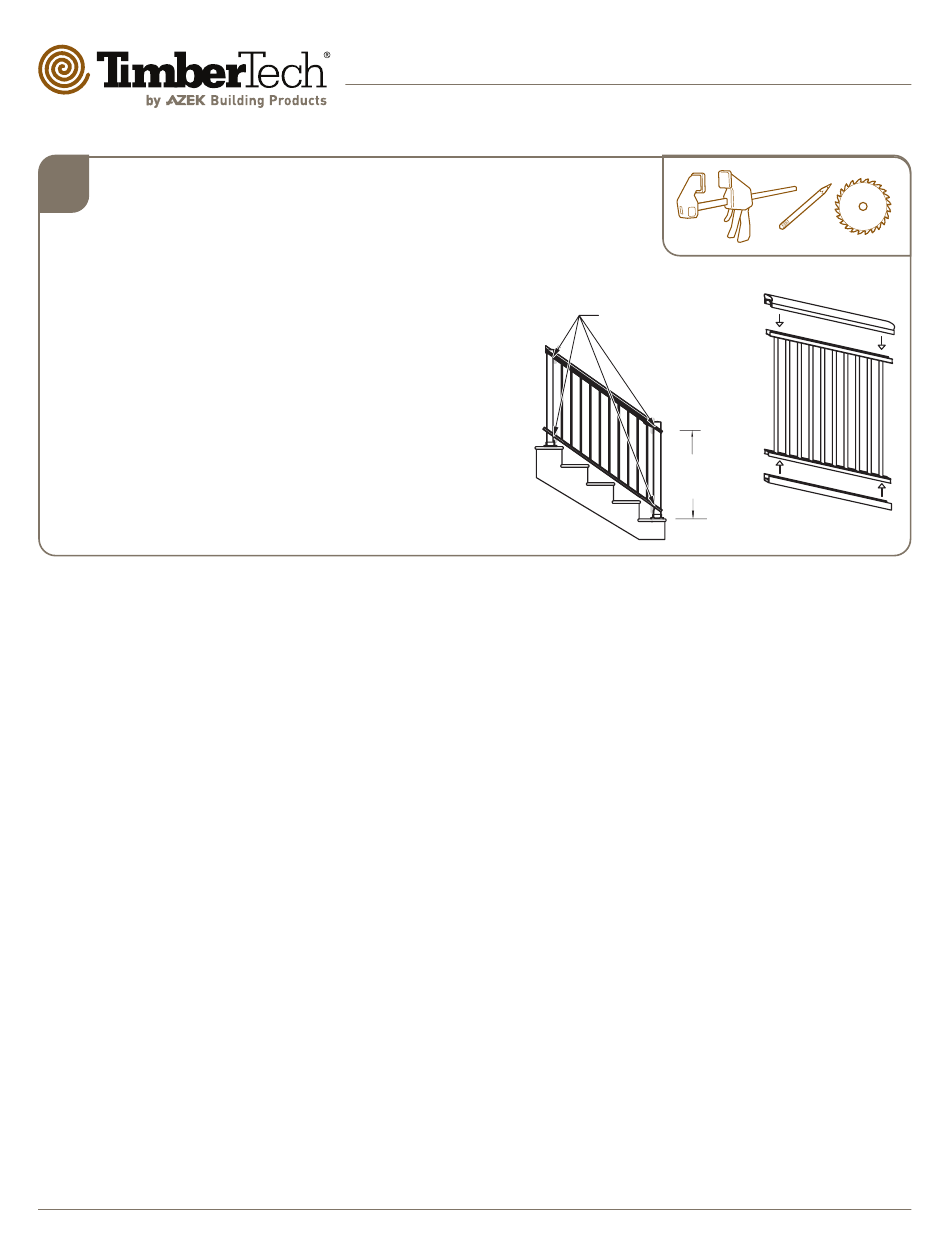

Installing Stair Balustrades
Temporarily clamp top
and bottom balustrade
snaps against posts and
mark for miter cuts. Cut
2mm less than opening
size
Dia. #7
863mm to 965mm
from stair nosing to
l
top of baslustrade
Dia. #8
