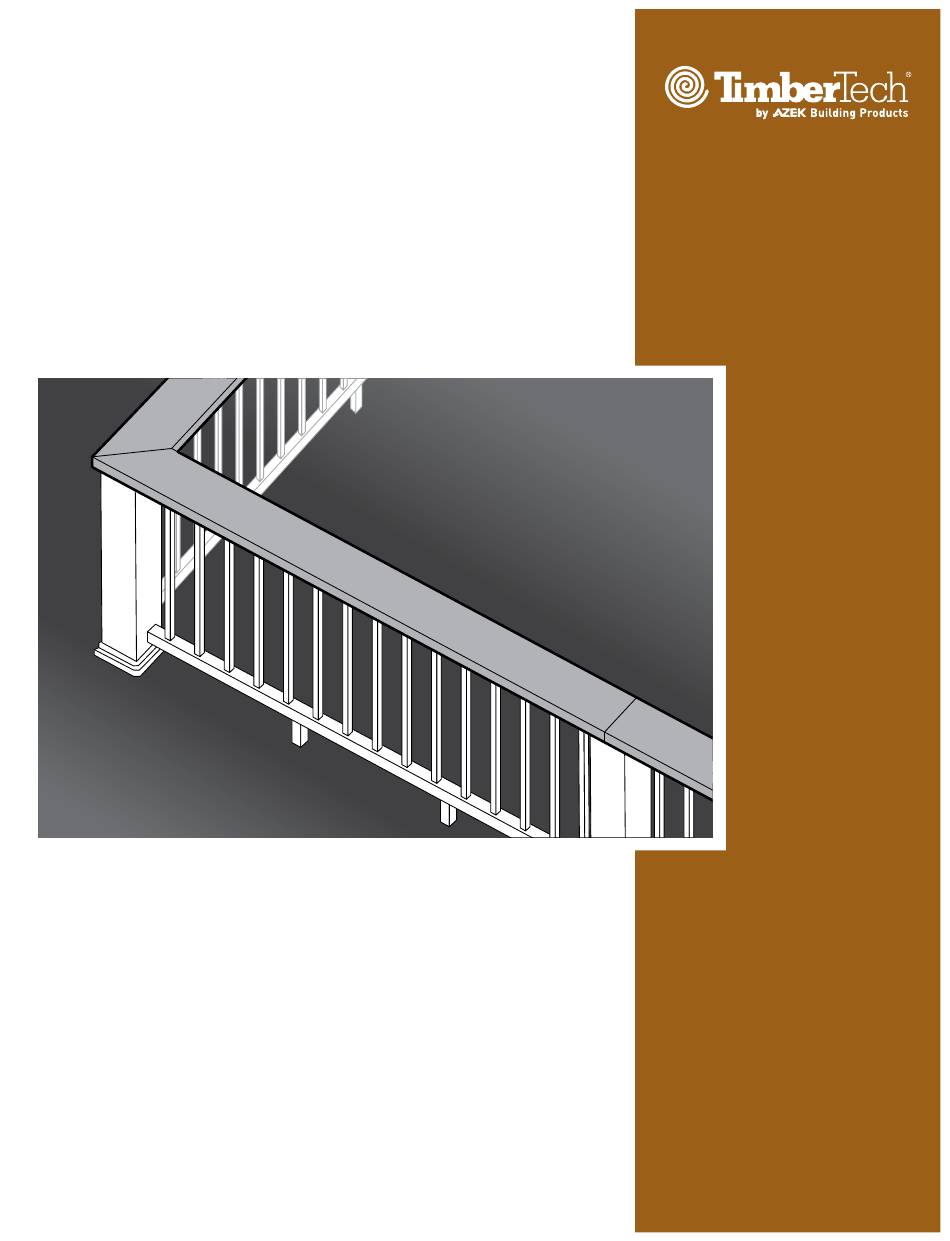

- Page 1 DRINK RAIL INSTALLATION GUIDE FOR CLASSIC COMPOSITE SERIES RAILING INSTALLING DRINK RAIL ON LEVEL PANELS ....4 INSTALLING DRINK RAIL ON STAIR PANELS ....8 TimberTech.com...
- Page 2 Since all installations are unique, it is also the installer’s responsibility to determine specific requirements in regards to each Rail application. • The The AZEK Company recommends that all applications be reviewed by a licensed architect, engineer or local building official before installation.
-
Page 3: Important Notes
INSTALLING DRINK RAIL FOR CLASSIC COMPOSITE SERIES RAILING Post Cap Drink Rail (deck board) Universal Rail Support Rail (purchased separately) #8 2" Stainless Steel Pan Head Screws (included with Universal Rail) Mounting Brackets Balusters Universal Rail (placed on Support Rail) Post Sleeve Foot Block Support Block... - Page 4 INSTALLING DRINK RAIL – LEVEL PANELS FOR CLASSIC COMPOSITE SERIES RAILING These instructions cover installation of the Drink Rail (Deck This Installation Guide applies to the use of this product in a Drink board Top Rail) on Classic Composite Series Level Panels. Rail application.
- Page 5 INSTALLING DRINK RAIL – LEVEL PANELS FOR CLASSIC COMPOSITE SERIES RAILING PREPARE UPPER SUPPORT RAIL Measure, mark and drill 3/16" diameter holes down through the upper support rail at 15" on-center or less intervals (Dia. #1). There must be a hole drilled between the first and second baluster at each end of the rail.
- Page 6 INSTALLING DRINK RAIL – LEVEL PANELS FOR CLASSIC COMPOSITE SERIES RAILING FASTEN DECK BOARD TO POSTS IMPORTANT NOTES: PRIOR TO INSTALLING DECK BOARDS: It is very important to have the Universal Rail (positioned on top) even with the top of the post sleeves to keep from seeing gaps under the Drink Rail.
- Page 7 INSTALLING DRINK RAIL – LEVEL PANELS FOR CLASSIC COMPOSITE SERIES RAILING FASTEN DECK BOARD TO UNIVERSAL RAIL Place the Deck Board on top and centered over the Universal Rail. For both Between-the-Post #4B), secure Deck Board and Universal Rail (Dia #4A) and Over-the-Post and Applications (Dia to Upper Support Rail using the 3/16"...
- Page 8 INSTALLING DRINK RAIL – STAIR PANELS FOR CLASSIC COMPOSITE SERIES RAILING These instructions cover installation of the Drink Rail (Deck This Installation Guide applies to the use of this product in a Drink board Top Rail) on Classic Composite Series Stair Panels. Rail application.
- Page 9 INSTALLING DRINK RAIL – STAIR PANELS FOR CLASSIC COMPOSITE SERIES RAILING PREPARE UPPER SUPPORT RAIL Measure, mark and drill 3/16" diameter holes down through the upper support rail at 15" on-center intervals (Dia. #1A). There must be a hole drilled between the first and second baluster at each end of the rail.
- Page 10 INSTALLING DRINK RAIL – STAIR PANELS FOR CLASSIC COMPOSITE SERIES RAILING FASTEN DECK BOARD TO POSTS (OVER-THE-POST APPLICATIONS) IMPORTANT NOTE: PRIOR TO INSTALLING DECK BOARDS: As with the level panel sections, it is very important Dia. #3A to have the Universal Rail (positioned on top) even with the top of the post sleeves to keep from seeing gaps under the Drink Rail.
- Page 11 The consumer or contractor should take all necessary steps to ensure the safety of everyone involved in the project, including, but not limited to, wearing the appropriate safety equipment. Except as contained in the written limited warranty, The AZEK Company does not provide any other warranty, either express or implied, and shall not be liable for any damages, including consequential damages.
- Page 12 AZEK Building Products 1330 W Fulton Market, Suite #350 Chicago, IL 60607 TimberTech.com ©2019 AZEK Building Products. All Rights Reserved.
