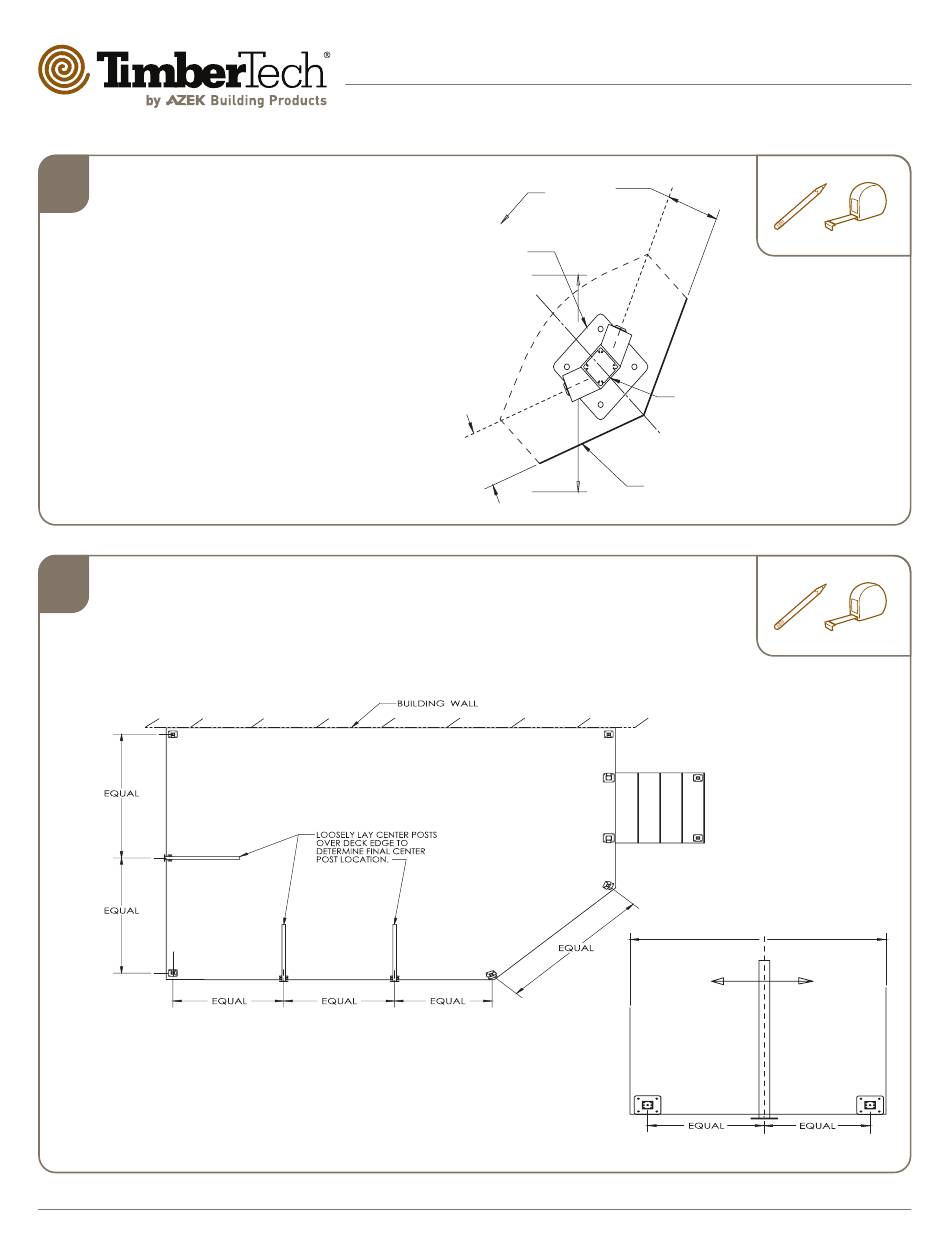

Install 45° Corner Posts
(Post to be installed at 22.5°
to accommodate a 45°
angle.)
Position post on same 75mm
centerline (typical) and temporarily
fasten to deck surface. Use one 22.5°
Balustrade Attach Kit (purchased
separately) to install 45° corner posts.
(Dia. #8)
7
Determine Center Post Locations
Loosely lay center post over deck edge and
adjust as required to determine final center post
mounting locations. (Dia. #9 & #10)
PLAN VIEW
Dia. #9
Installing Aluminium Posts
TOP VIEW
75mm
CENTERLINE
TYPICAL
LOCATE 45°
ANGLED POST
Dia. #8 Dia. #8
75MM
CENTERLINE
TYPICAL
Page 6
POST DISSECTS
DECK ANGLE
TYPICAL
DECK
EDGE
CENTER LINE
CLOSE UP
VIEW
Dia. #10
