Installing Aluminium Posts
3

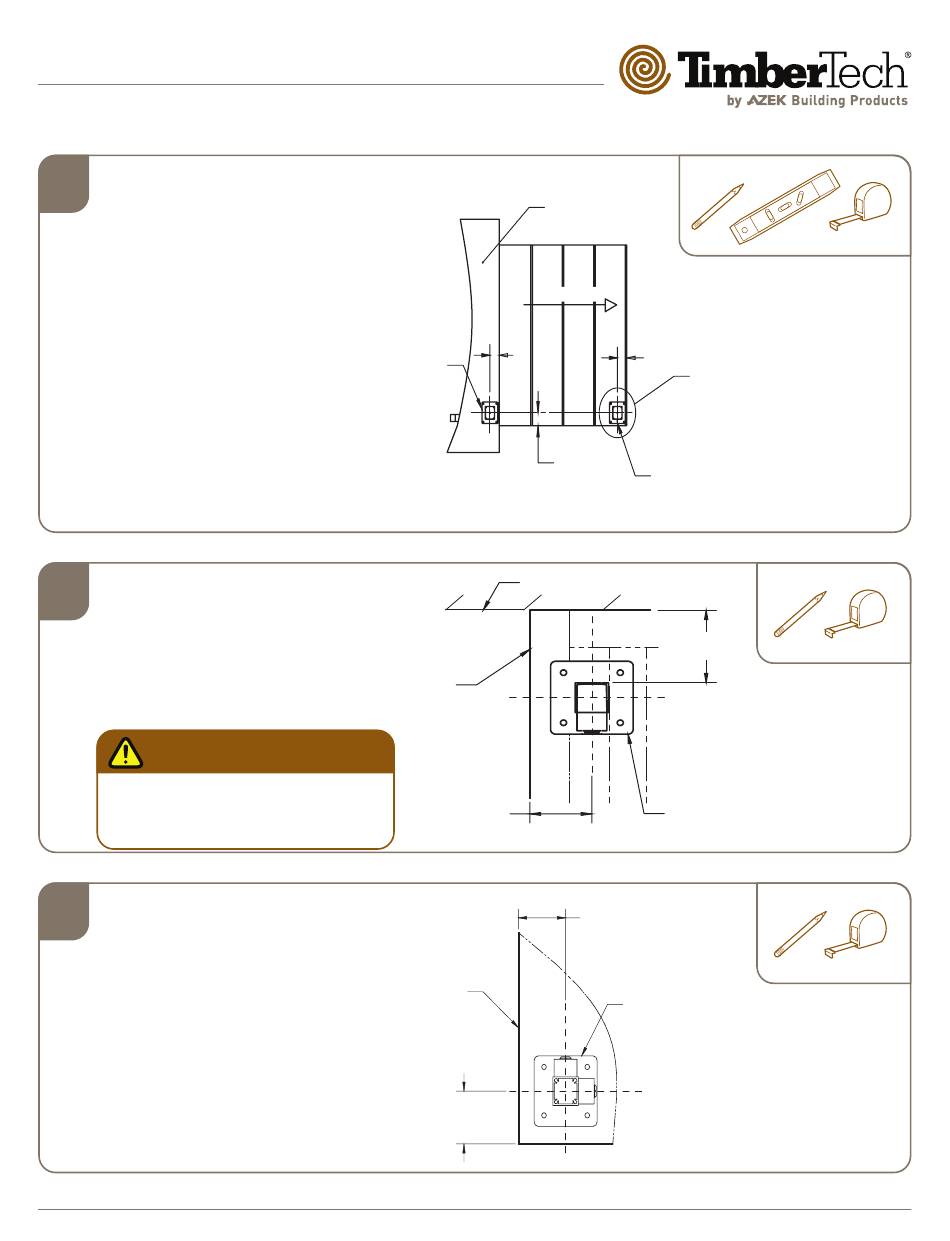

Install Stair End Posts
(if applicable)
• Temporarily install end stair
post so balustrade centerline
aligns with top stair posts
installed in Step 1 (if applicable).
Recommended post installation
locations are shown.
Confirm with local code officials
before installing stair balustrade
sections or stair balustrade posts
to ensure compliance with local
code requirements.
4
Install End Posts
(if applicable)
Install posts at all end locations with
maximum gap between post and wall
to be less than a 100mm opening
(Dia. #6)
Important Note:
75mm x 75mm posts are required at all
transitions. 50mm x 50mm posts may
not be used to start/end a run or to
form a corner.
5
Install 90-degree Corner
Posts
Position post on same 75mm
centerline (typical) and temporarily
fasten using a single fastener through
base plate mounting hole.
(Dia. #5)
75mm TOP
STAIR POST
DECK
EDGE
CENTERLINE
TOP VIEW
DECK
EDGE
(Dia. #7)
75mm
CENTERLINE
TYPICAL
Page 5
DECK
SURFACE
STAIR DOWN
75mm
TYPICAL
Dia. #5
BUILDING WALL
75mm
TYPICAL
75mm
CENTERLINE
TYPICAL
LOCATE
90° CORNER
POST
3B
TEMPORARILY INSTALL
75mm BOTTOM STAIR
END POST ALIGNED
WITH TOP STAIR END
POST (REFER TO STAIR
INSTRUCTIONS)
LESS THAN 100mm
OPENING
Dia. #6
LOCATE END
POST
Dia. #7
