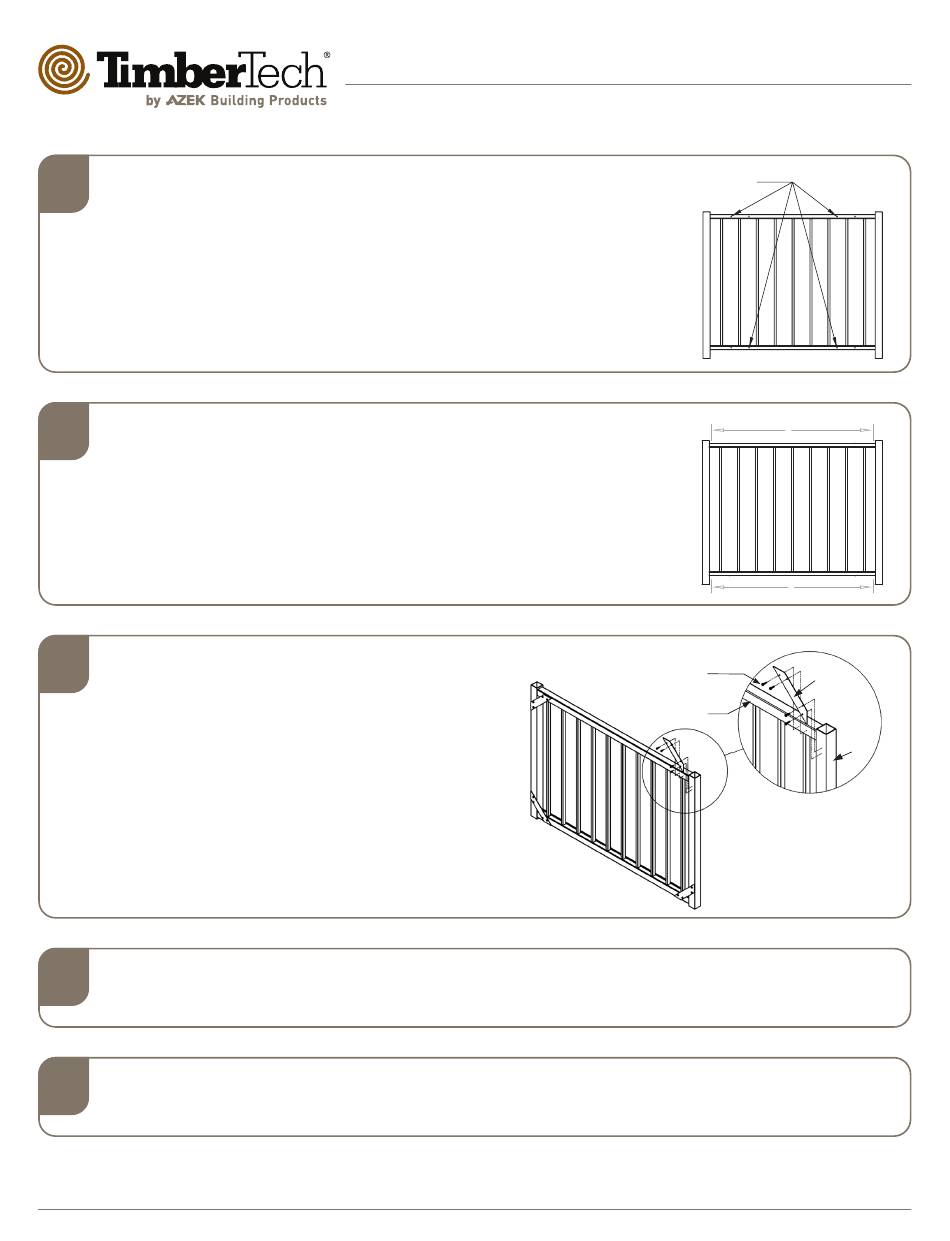

AZEK Timbertech Impression Rail Express Installation Manual page 14

5
Drill 16 - 3.2mm Holes (Dia. #4) and Install
20mm Self-Drilling Screws to Secure Gate
Ends to Balustrade
6
Measure Between Gate End Posts
Measure between Gate End Posts, deduct 2mm and cut hand &
base snap covers. Once cut, position snap covers over hand &
base horizontal channels and press in place.
7
Install Support Bracket
To install Support Bracket, first attach Support
Bracket to Post using 2x #8 x 20mm self-drilling
screws as shown, then press Support Bracket
against Horizontal Balustrade, drill 2x 3.2mm pilot
holes and secure using remaining 2x #8 x 20mm
self-drilling screws. Repeat for remaining brackets.
(Dia. #6)
8
Install Gate Hinges Per Instructions Provided In Hinge Package
9
Install Gate Latch As Per Instructions Provided In Latch Package.
2 HOLES PER BALUSTRADE
PER POST PER SIDE (16)
(Dia. #5)
Page 14
Installing Gate Kits
Dia. #4
Dia. #5
4x #8 x 20mm Color
Matched Self-Drilling
Screws per support
Horizontal Balustrade
Dia. #6
4x Support
Bracket
Post
